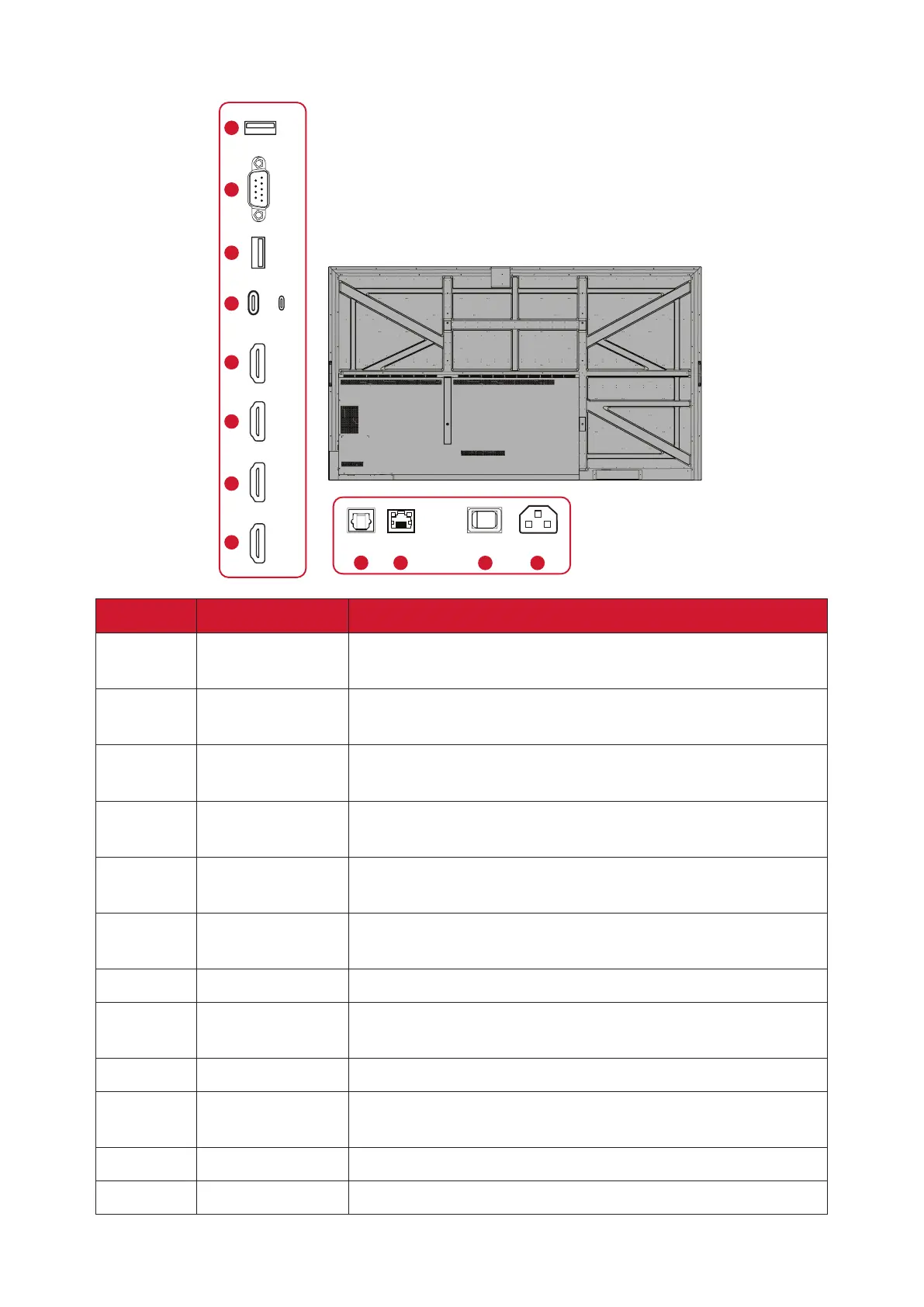

I/O Panels - CDE6530 | CDE7530 | CDE8630 | CDE9830

2
3
4
5
6
7
8
9
10
11
12
RS-232
LAN
SPDIF
USB 2.0
USB 3.0
HDMI OUT2
31 (ARC)
Number Port Descripon
1
USB 2.0
Connect USB devices such as hard disks, keyboard,
mouse, etc. (Output rang: 5Vdc/500mA)
2
RS-232
Serial interface; used for mutual transfer of data
between devices.
3
USB 3.0
Connect USB devices such as hard disks, keyboard,
mouse, etc. (Output rang: 5Vdc/900mA)
4
USB Type C
USB Type C input; connect to a PC with USB Type C
output. (Output rang: 20Vdc/3.25A).
5
HDMI 1 (ARC)
High denion input; connect to a PC with HDMI
output, set-top box, or other video device.
6
HDMI 2
High denion input; connect to a PC with HDMI
output, set-top box, or other video device.
7
HDMI OUT Extend content out to another display device.
8
HDMI 3
High denion input; connect to a PC with HDMI
output, set-top box, or other video device.
9
SPDIF Mulchannel sound via opcal signals.
10
LAN
Standard RJ45 (10M/100M/1G) Internet connecon
interface.
11
Power Switch Turn the device ON/OFF.
12
AC IN AC power input.
