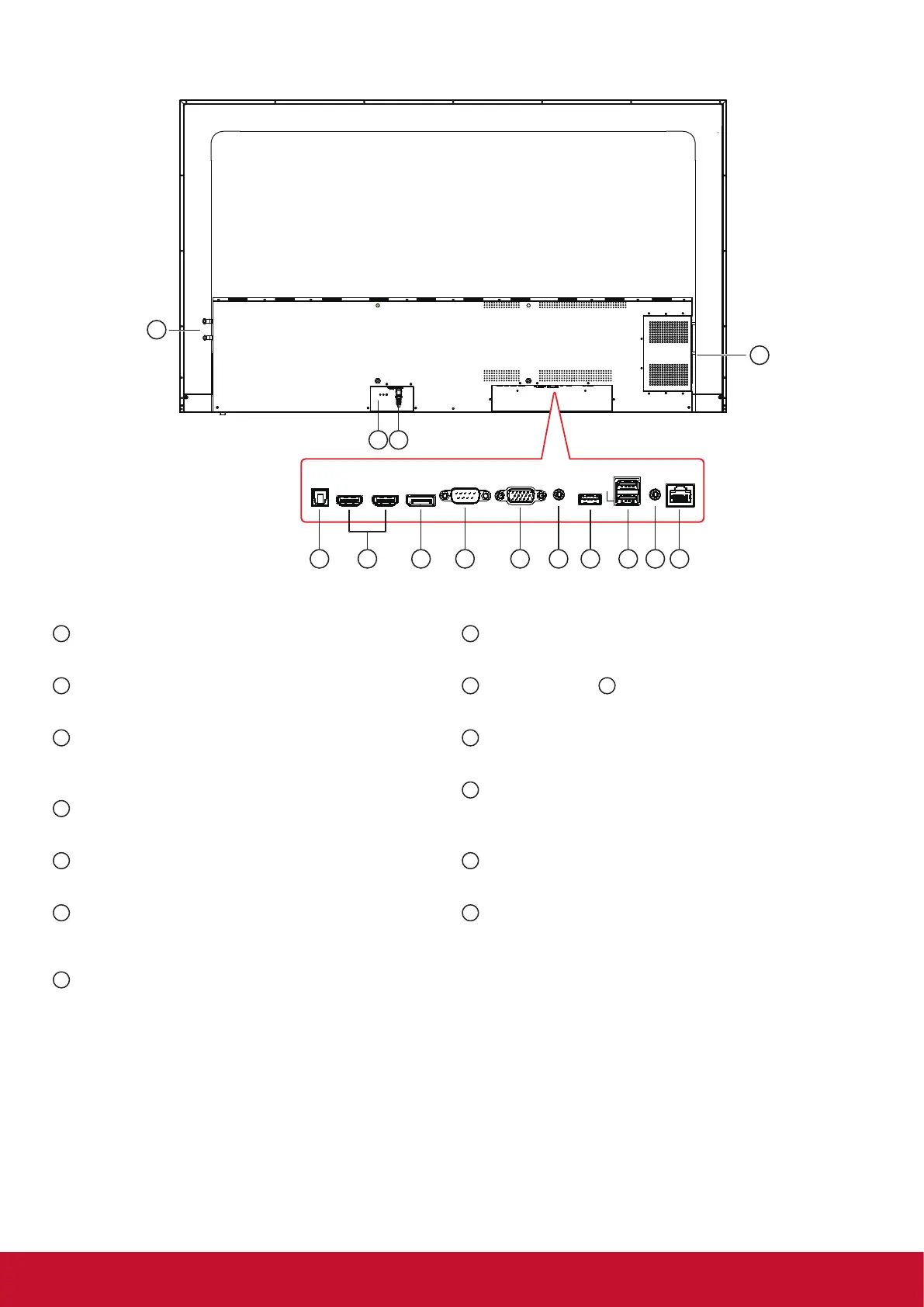

2.2. Input/Output Terminals
3
1
14
13
2
4 5 6 7 8 9 10 11 12
SPDIF HDMI 1 (ARC) HDMI 2 DisplayPort RS232 VGA PC LINE IN USB 3.0 USB 1
USB 2
AUDIO OUT LAN
1
MAIN POWER SWITCH
Switch the main power on/o.
2
AC IN
AC power input from the wall outlet.
3
SPDIF OUT
Digital audio signal output to connect your external
AV device.
4
HDMI 1(ARC)/HDMI 2 IN
HDMI video/audio input.
5
DisplayPort IN
DisplayPort video/audio input.
6
RS232 IN
RS232 control for the use of remote control signal from
control center.
7
VGA IN (D-Sub)
VGA video input.
8
PC LINE IN
Audio input from VGA source (3.5mm stereo phone).
9
USB PORT 3.0/
10
USB 2.0 PORT
Connect your USB storage device
11
AUDIO OUT
Audio output to external AV device.
12
LAN
LAN control function for the use of remote control
signal from control center.
13
OPS SLOT
Slot for installing the optional OPS module.
14
WiFi MODULE SLOT
Slot for LB-WIFI-001 WiFi module.
