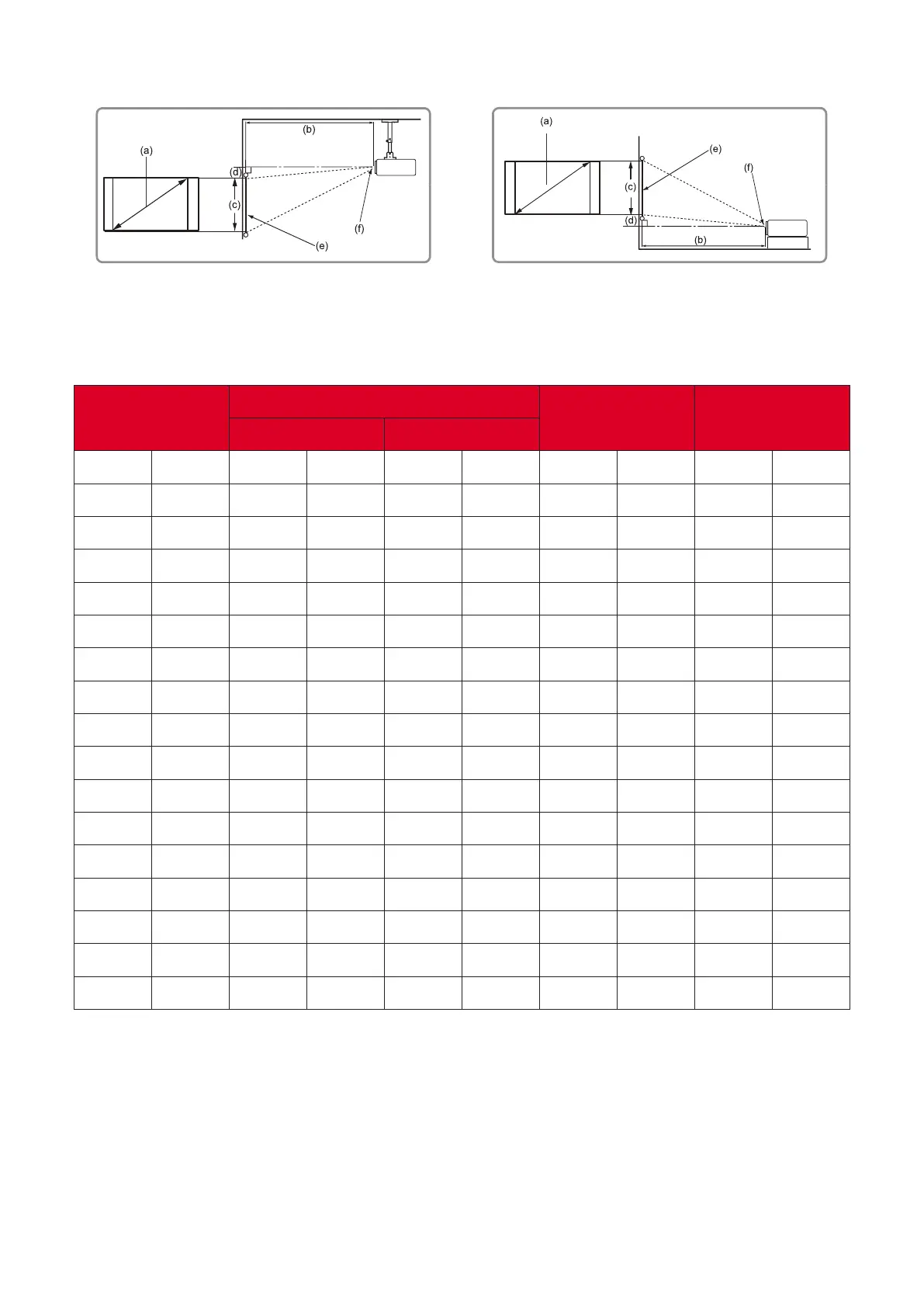

• 16:9 Image on a 4:3 Screen
NOTE:
• (e) = Screen
(f) = Center of Lens
(a) Screen Size
(b) Projecon Distance
(c) Image
Height
(d) Vercal
Oset
Minimum Maximum
in.
mm
in.
mm in. mm
in.
mm
in.
mm
30 762 35.53 902 38.88 988 13.50 343 2.16 55
40 1016 47.36 1203 51.84 1317 18.00 457 2.88 73
50 1270 59.20 1504 64.80 1646 22.50 572 3.60 91
60 1524 71.04 1804 77.76 1975 27.00 686 4.32 110
70 1778 82.88 2105 90.72 2304 31.50 800 5.04 128
80 2032 94.72 2406 103.68 2633 36.00 914 5.76 146
90 2286 106.56 2707 116.64 2963 40.50 1029 6.48 165
100 2540 118.40 3007 129.60 3292 45.00 1143 7.20 183
110 2794 130.24 3308 142.56 3621 49.50 1257 7.92 201
120 3048 142.08 3609 155.52 3950 54.00 1372 8.64 219
130 3302 153.92 3910 168.48 4279 58.50 1486 9.36 238
140 3556 165.76 4210 181.44 4609 63.00 1600 10.08 256
150 3810 177.60 4511 194.40 4938 67.50 1715 10.80 274
200 5080 236.80 6015 259.20 6584 90.00 2286 14.40 366
250 6350 296.00 7518 324.00 8230 112.50 2858 18.00 457
300 7620 355.20 9022 388.80 9876 135.00 3429 21.60 549
NOTE:
• These gures are for reference purposes only. Please refer to the actual
projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector
to physically test the projecon size and distance using the actual projector
before you permanently install it.
