1.3 Lamp Assembly.
i. Insert Lamp into Lamp Holder and make three datum contact with the lamp (Figure
1-8)
ii. Hook “Clip_DOWN” on the Lamp Holder first. (Figure 1-9)
iii. Hook “Clip_LAMP_UP” on the Lamp Holder second. (Figure 1-10)
iv. Check assembly again and make sure the three datum contact with the lamp.
v. Assemble Lamp Wire to Lamp
vi. Assemble “clip plate” on the Lamp plate and fasten the screw(Figure 1-11)
vii. Assemble “Handle Lamp” on Lamp plate and assemble “Lamp_Plate” on the Holder
and fasten the screw (Figure 1-12)

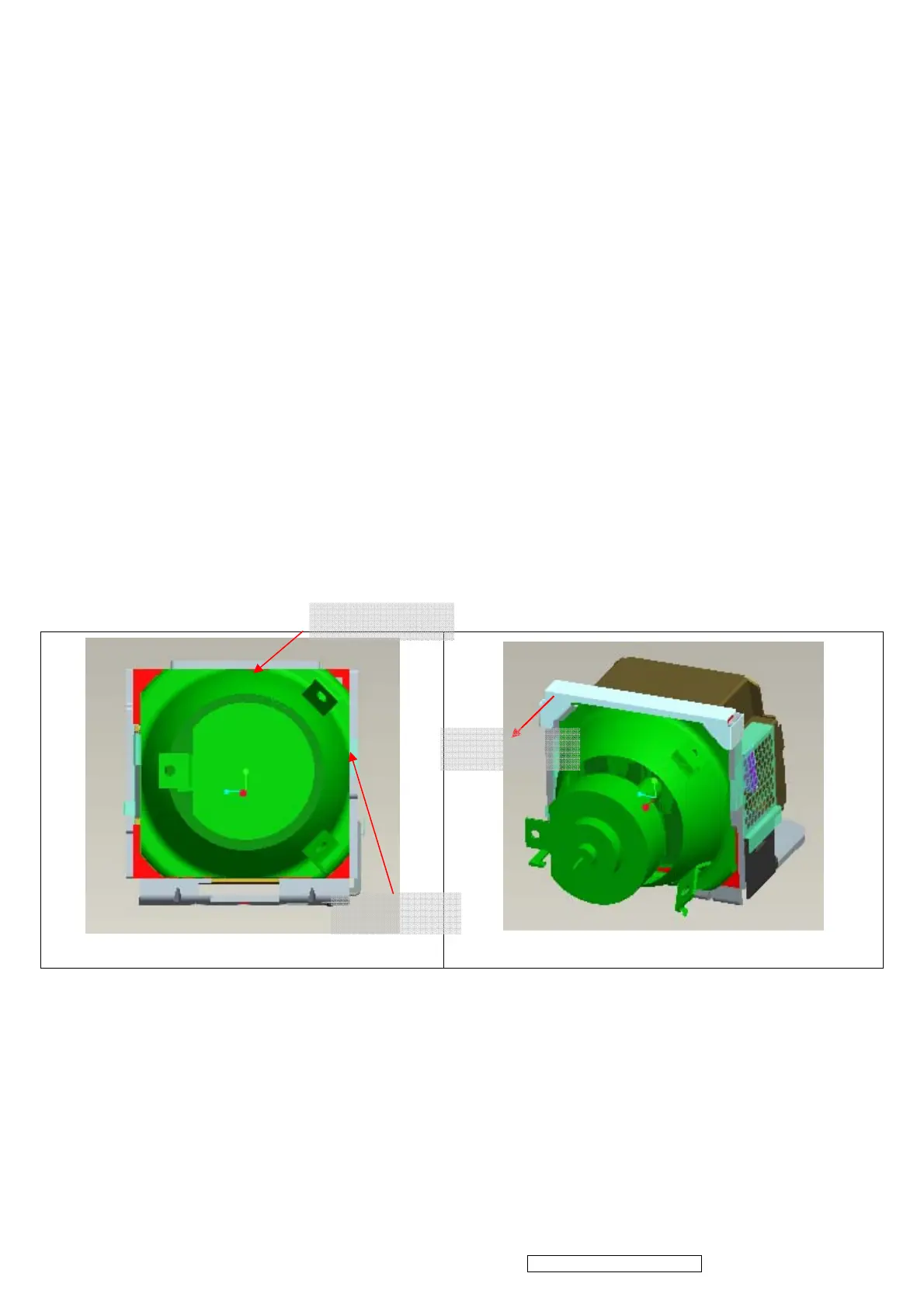

Figure1-8 Figure1-9
UPPER Datum
RIGHT Datum
CLIP DOWN
