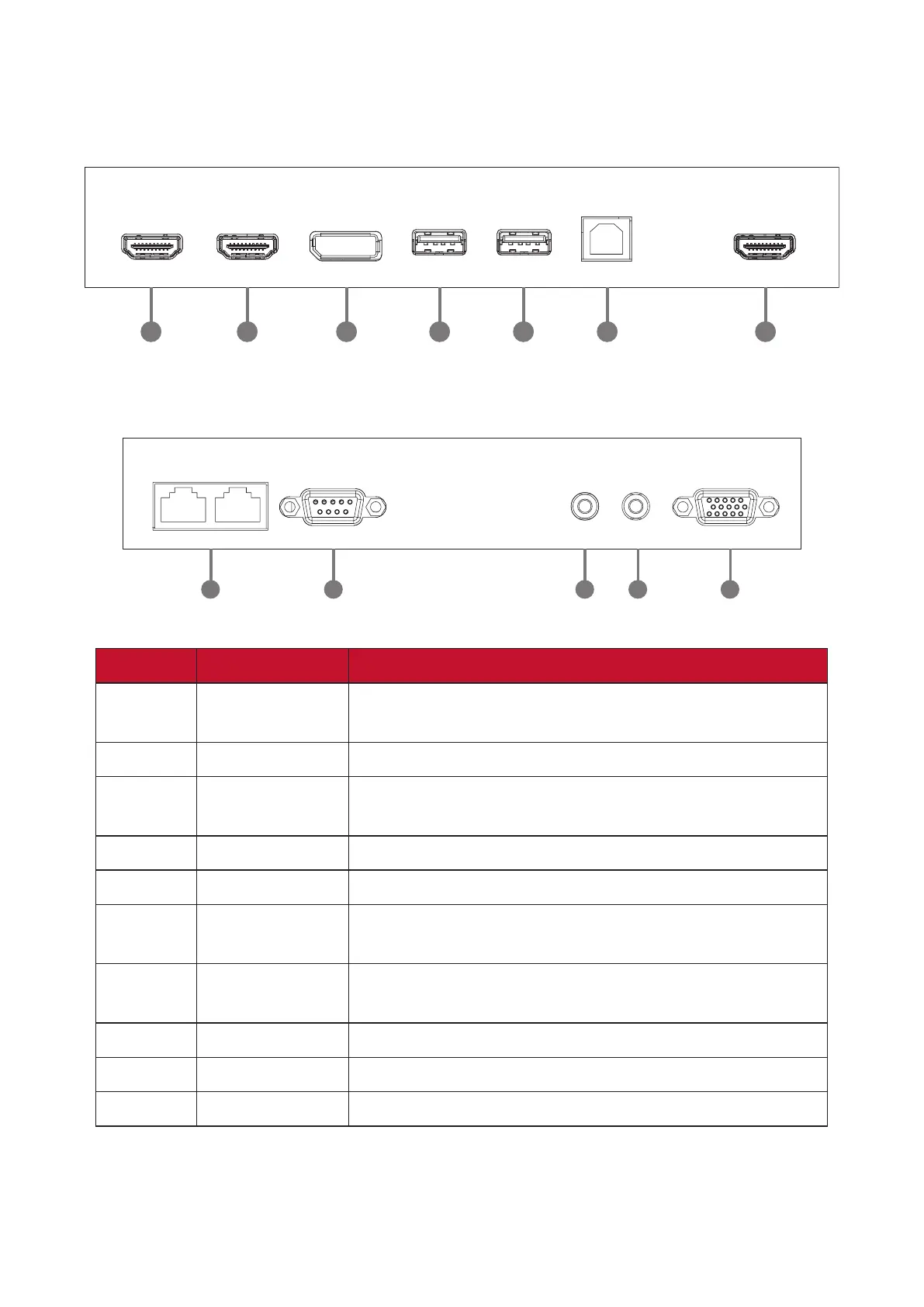

I/O Panel
HDMI 2 HDMI 1DPUSB 2.0USB 2.0 SPDIF
HDMI OUT
3211 3 4 5
LAN 1LAN 2
RS-232 Earphone
PC Audio
VGA
76 8 9 10
Number Port
1
HDMI IN
High denion input; connect to PC with HDMI
output, set-top box, or other video device.
2
DisplayPort
Connect to devices with DisplayPort output funcon.
3
USB 2.0
Connect USB devices such as hard disks, keyboard,
mouse, etc.
4
SPDIF
Mulchannel sound via opcal signals
5
HDMI OUT
Extend content out to another display device
6
LAN
Standard RJ45 (10M/100M) Internet connecon
interface.
7
RS-232
Serial interface; used for mutual transfer of data
between devices
8
AUDIO OUT
Audio output to an external speaker
9
PC AUDIO
External computer audio input
10
VGA
External computer image input
