ViewSonic VS18885 - Installing System Control Box Covers

39
Installing System Control Box Covers

BRIGHTNESSINPUTSTAND-BY
LANUSB-BAUDIO
OUT
HDMI
1
HDMI
2
HDMI
OUT
USBUSBUSBRS232
BRIGHTNESSINPUTSTAND-BY
LANUSB-BAUDIO
OUT
HDMI
1
HDMI
2
HDMI
OUT
USBUSBUSBRS232

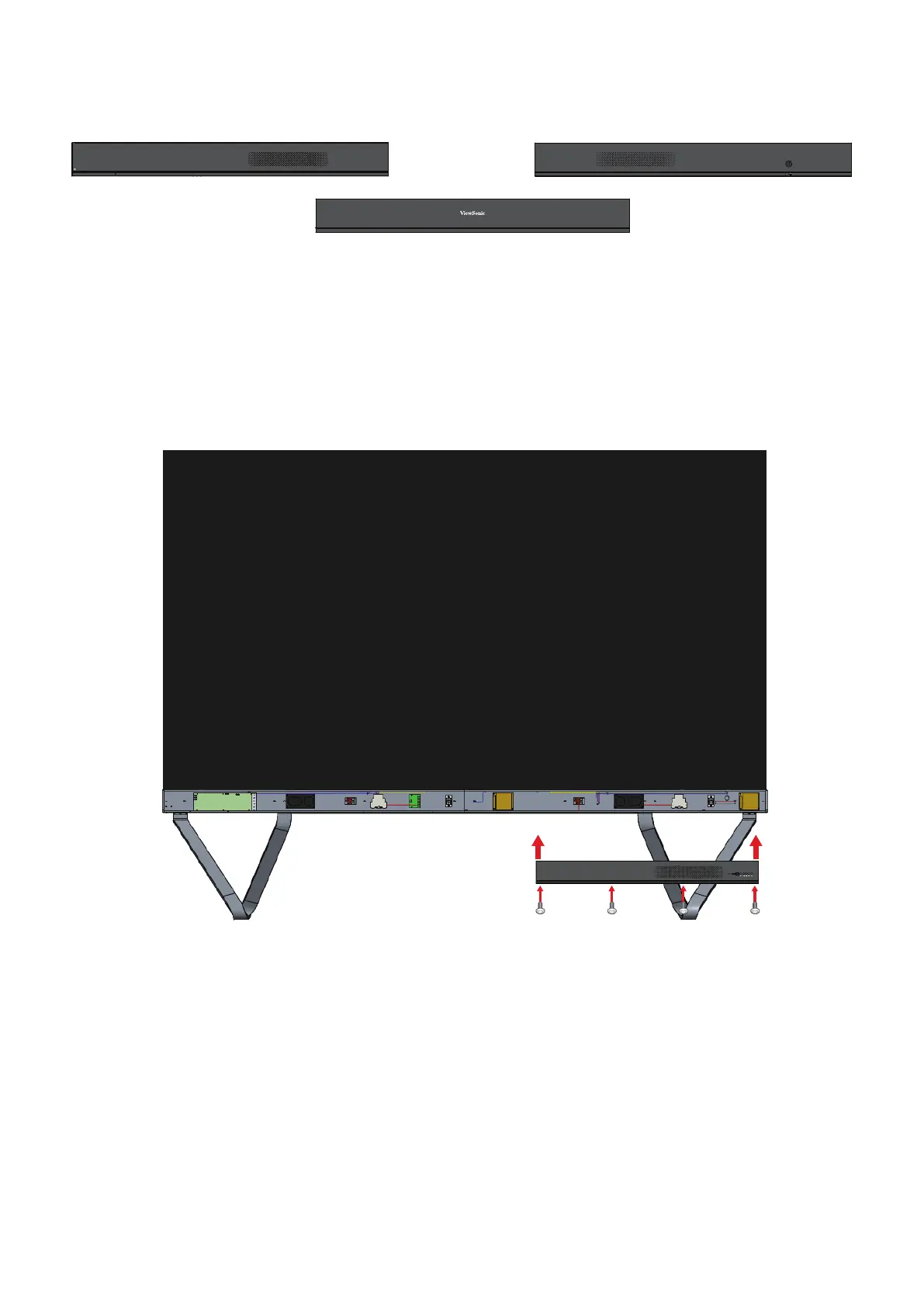

1. Begin by installing the Right Cover onto the System Control Box
NOTE: Ensure the Power Buon cable is connected to the System Control Box
Power cable before securing the Cover
2. Power Buon cable, ensure the Right Cover is properly
aligned with the System Control Box

