ViewSonic VS18885 - Detachable System Control Box; Wall Mounting

41
Detachable System Control Box
The System Control Box can be installed under the Cabinets
for front access, or behind the Cabinets
POWER
HDMI
OUT
AUDIO
OUT
AUDIO
IN
S/PDIF
OUT
IR IN
USB
5V/1.5A
USB
5V/1.5A
LAN
HDMI 1
(2.0)
HDMI 2
(2.0)
HDMI 3
(1.4)
HDMI 4
(1.4)
HDMI 5
(2.1)
RS232
USB C USB A
POWER
HDMI
OUT
AUDIO
OUT
AUDIO
IN
S/PDIF
OUT
IR IN
USB
5V/1.5A
USB
5V/1.5A
LAN
HDMI 1
(2.0)
HDMI 2
(2.0)
HDMI 3
(1.4)
HDMI 4
(1.4)
HDMI 5
(2.1)
RS232
USB C USB A

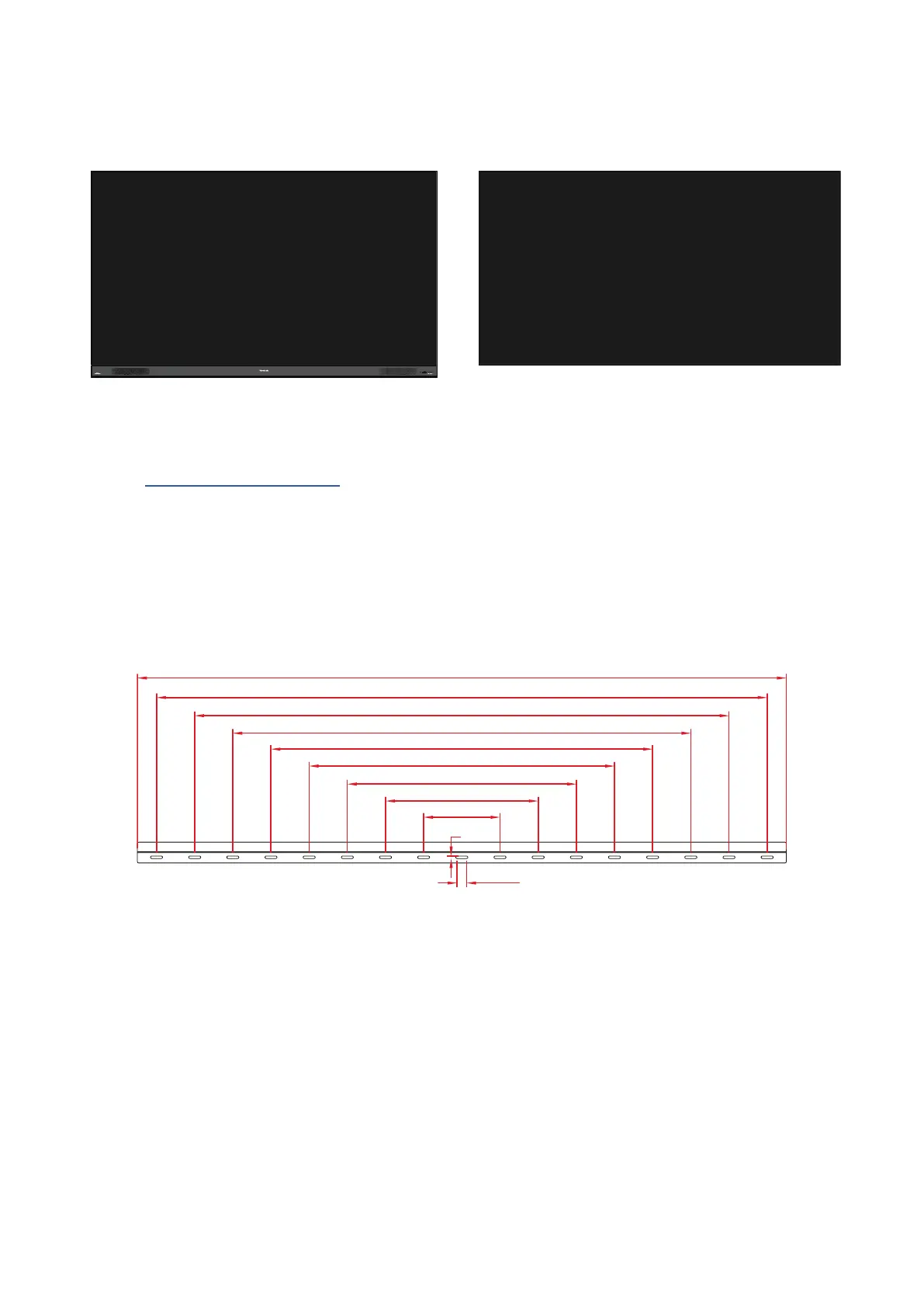

Standard Installaon Hidden System Control Box Installaon
NOTE:
• 
• 

Wall Mounng
Installing the Upper and Lower Wall Mount Brackets
1727.2 mm
68 in
1625.6 mm
64 in
1422.4 mm
56 in
1219.2 mm
48 in
1016 mm
40 in
812.8 mm
32 in
609.6 mm
24 in
406.4 mm
16 in
203.2 mm
8 in
7 mm
⁹/32 in
25.4 mm
1 in
1. 
NOTE: 

2. Using the Wall Mount Bracket

3. Wall Mount Bracket

