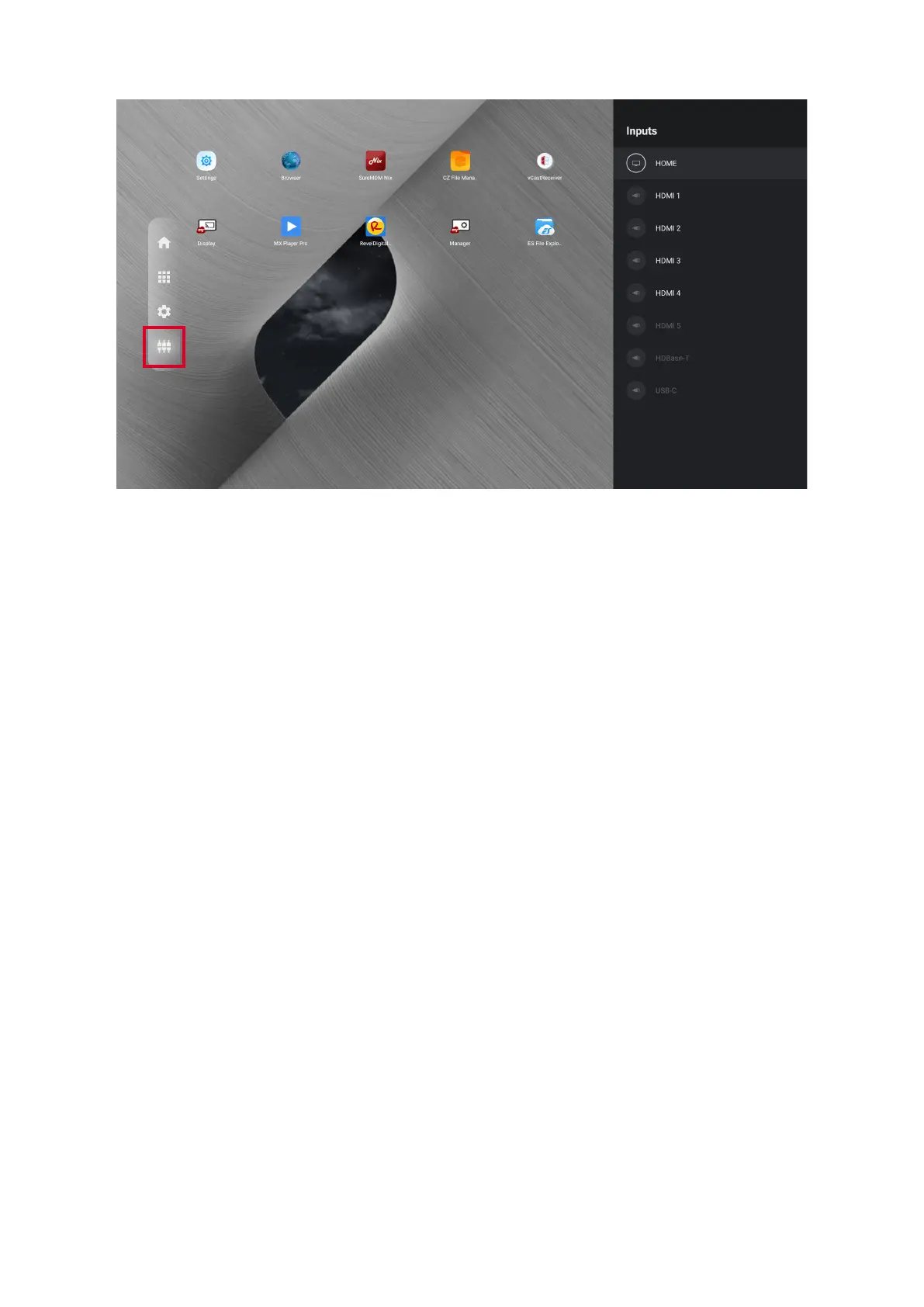

Input Source

The display supports eight input sources: Home, HDMI 1, HDMI 2, HDMI 3, HDMI 4,

HDMI 5, HDBaseT, and USB C.
