ViewSonic VT2430 User Manual

10ViewSonic VT2430
ENGLISH
Getting Started

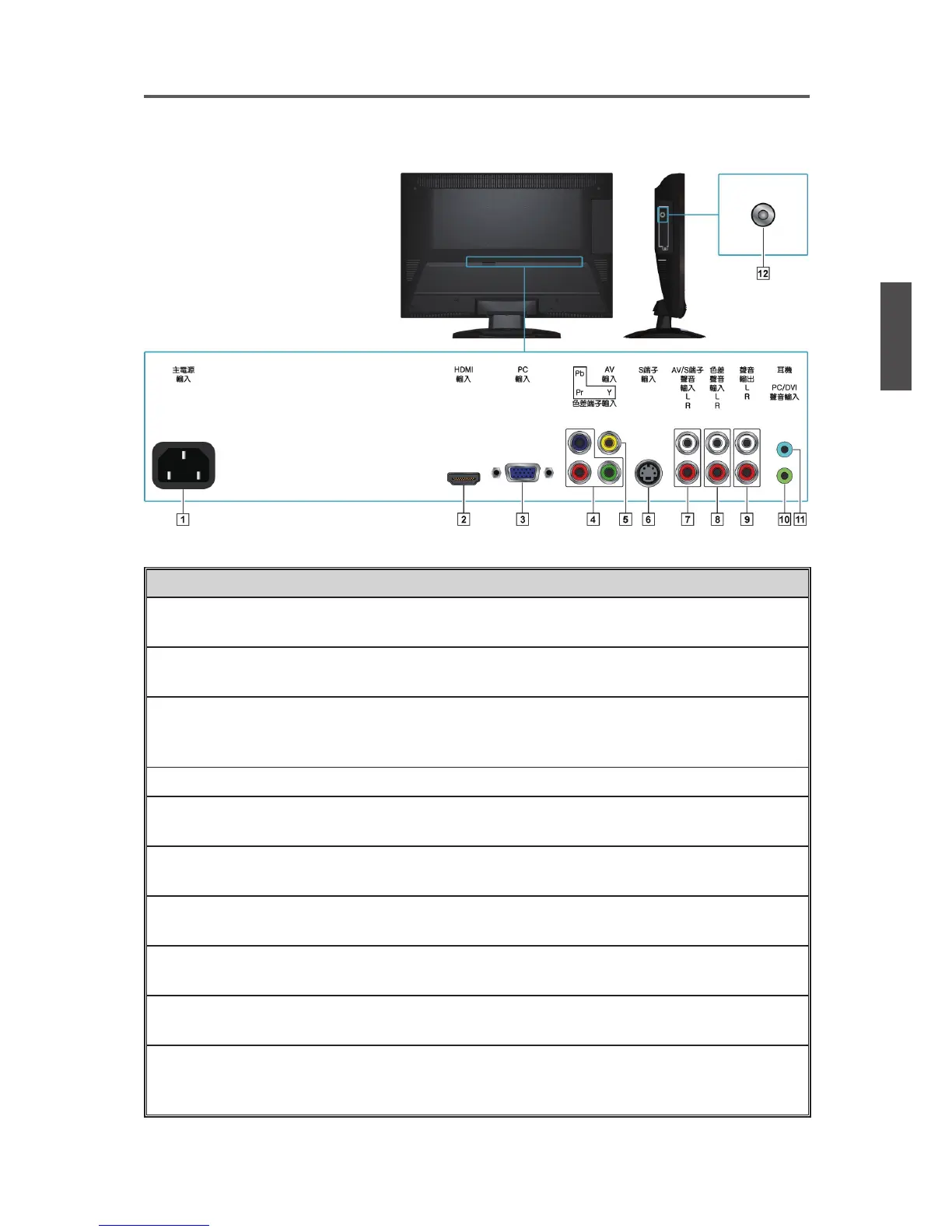

Rear View of the Product
Item Description
1 Power (AC input)
Plug-in the supplied AC Power cord and connect to the AC input
power source.
2
HDMI Input Terminal
Connect this port to the HDMI/HDMI-DVI jack of the compatible
equipment.
3
PC signal input
Connect a 15-pin D-sub VGA cable to the VGA output of your
computer and the other end to the PC input on the rear of the LCD
Display.
4
YPbPr signal input
Connect this jack to the YPbPr output of A/V device.
5
Composite Video input
Connect this jack to the composite video output connectors on your
A/V equipment.
6
S-Video input
Connect the S-Video cable from the compatible device to this
connector on the rear panel of the LCD Display.
7
AV/ S-Video Audio input
(left/ right)
Connect the Audio in cable for AV/ S-Video from this jack to the
corresponding connectors on your A/V device.
8
YPbPr Audio input
(left/ right)
Connect the Audio in cable for YPbPr from this jack to the
corresponding connectors on your A/V device.
9
Audio output
Connect this port to your A/V device with audio in (RCA)
connectors or to audio amplier.
10
PC/ DVI Audio input
Connect the PC Audio Out on your computer to the PC Audio in on the
rear of the LCD Display. This jack is used for PC Audio input, when the
picture input is connected to VGA or DVI (via HDMI input) on the PC.

ViewSonic VT2430 Specifications

General

Power LED	Yes
Headphone connectivity	3.5 mm
Digital vertical frequency	60 - 75 Hz
Digital horizontal frequency	30 - 64 kHz
Operating relative humidity (H-H)	10 - 65 %
Operating temperature (T-T)	0 - 40 °C
Package weight	9000 g
Certification	FCC, cUL (UL), RoHS, NOM, BETS-7, CB
Audio (L/R) in	1
Card reader integrated	No
Product color	Black
LED indicators	Stand-by
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (typical)	60 W
Display diagonal	24 \
Display brightness	300 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	10000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	160 °
RMS rated power	10 W
Number of speakers	2
Tuner type	Analog & digital

Weight and Dimensions

Depth (with stand)	211 mm
Width (with stand)	567 mm
Height (with stand)	442 mm
Weight (with stand)	7000 g
Depth (without stand)	85 mm
Height (without stand)	387 mm
Weight (without stand)	6500 g
