Getting Started
Cable System or VHF/UHF Antenna System
• We strongly recommend that you connect the antenna/cable input using a 75-ohm coaxial
cable (not supplied) to ensure the best picture quality.
Cable or VHF/UHF
Cable System and VHF/UHF Antenna System
Use an optional A-B RF switch (not supplied) to switch between the cable and antenna
programming, as shown below.
☼
• Remember to set the Source setting in the Channel menu to Air or Cable for the type you
choose.
HD Cable Box/HD Satellite Box
You can also enjoy high-definition programming by subscribing to a high-definition cable
service or a high-definition satellite service. For the optimum picture quality, be sure to
connect this device to your Display via the HDMI or component video (with audio) input on
the back of your LCD Display.
HDMI Connection
Connecting the LCD Display

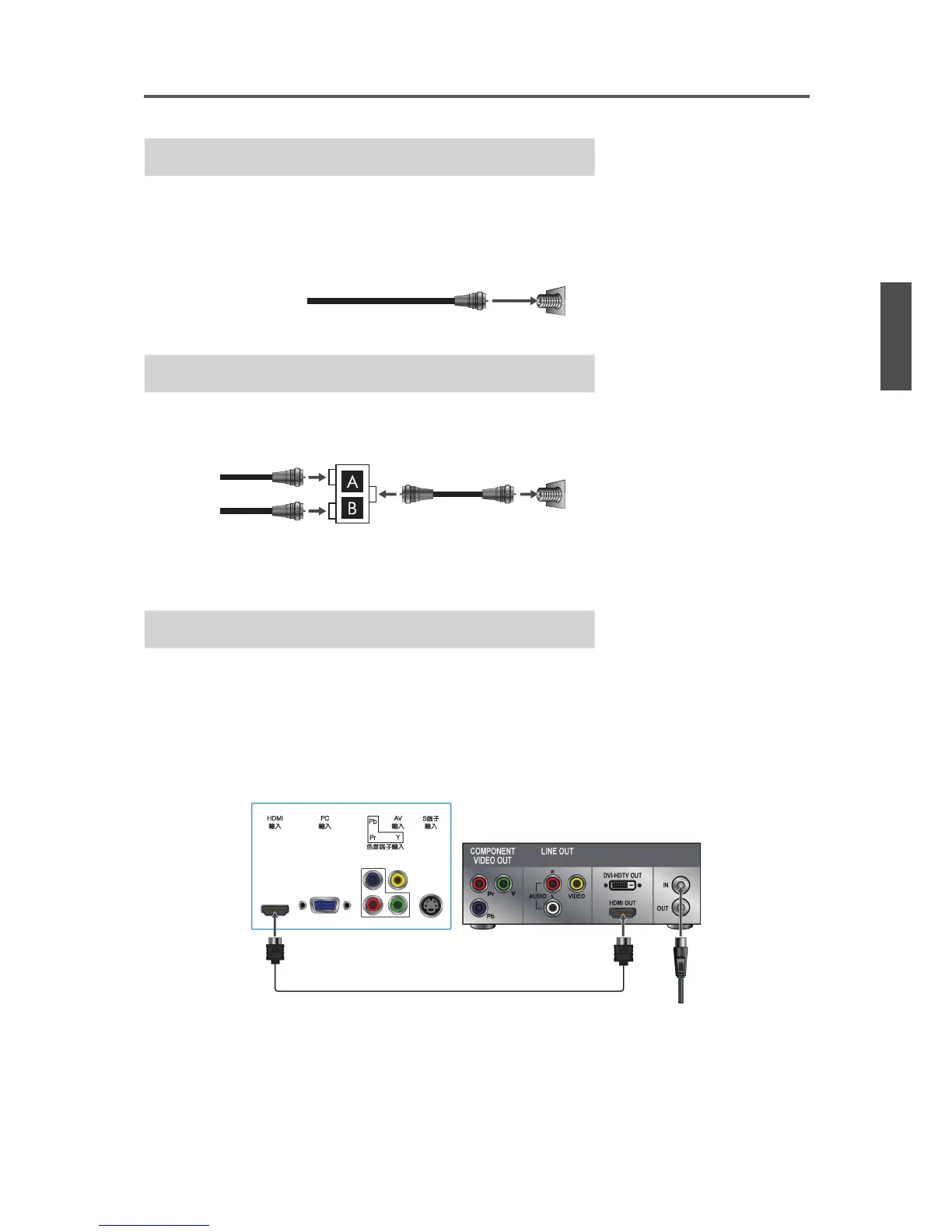

75-ohm coaxial cable Rear of Display
VHF/UHF/CABLE input
Cable
Antenna
Rear of Display
VHF/UHF/CABLE input
A-B RF switch
Rear of Display
HDMI cable
Cable/Satellite
antenna cable
HD cable box/
HD satellite box

ViewSonic VT2430 Specifications

General

Power LED	Yes
Headphone connectivity	3.5 mm
Digital vertical frequency	60 - 75 Hz
Digital horizontal frequency	30 - 64 kHz
Operating relative humidity (H-H)	10 - 65 %
Operating temperature (T-T)	0 - 40 °C
Package weight	9000 g
Certification	FCC, cUL (UL), RoHS, NOM, BETS-7, CB
Audio (L/R) in	1
Card reader integrated	No
Product color	Black
LED indicators	Stand-by
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (typical)	60 W
Display diagonal	24 \
Display brightness	300 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	10000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	160 °
RMS rated power	10 W
Number of speakers	2
Tuner type	Analog & digital

Weight and Dimensions

Depth (with stand)	211 mm
Width (with stand)	567 mm
Height (with stand)	442 mm
Weight (with stand)	7000 g
Depth (without stand)	85 mm
Height (without stand)	387 mm
Weight (without stand)	6500 g
