11ViewSonic VT2430
ENGLISH
Getting Started
Item Description
11 Headphone Jack
Connect to your headphones. By connecting the headphones, you can
listen to the sound from the Display on headphones.
If you connect the headphones, the Display speakers will be muted.
12 F Type Connector
Connect this jack to your Cable or VHF/UHF antenna.
AV connection
Connect the composite video and audio input jacks to the corresponding output jacks of your
A/V device.
--- VIDEO: Composite Video input [5]
--- AUDIO: AV/ S-Video signal Audio input [7]
S-Video connection
Connect the S-Video and audio input jacks to the corresponding output jacks of your VCR or
other video device that has S-Video. S-Video provides better picture quality than composite
video connection. If both are connected, S-Video signal has priority.
--- VIDEO: S-Video input [6]
--- AUDIO: AV/ S-Video signal Audio input [7]
Component (YPbPr) connection
YPbPr provides better picture quality than the S-Video or the AV connection.
For YPbPr connection, connect the component video (YPbPr) and audio jacks to the
corresponding output jacks of your A/V device.
--- VIDEO: YPbPr signal input [4]
--- AUDIO: YPbPr signal audio input [8]
HDMI connection
HDMI (High-Denition Multimedia Interface) is a licensable audio/video connector interface
for transmitting uncompressed, encrypted digital streams between this Display and any
HDMI-equipped audio/video equipment.
Be sure to use only an HDMI cable that bears the HDMI logo.
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI
Input Terminal (with DVI-to-HDMI cable or adapter), and connect the Audio cable to the
Audio In jacks.
1. With HDMI cable: HDMI Input Terminal [2]
2. With HDMI-DVI cable --- VIDEO: HDMI Input Terminal [2]
--- AUDIO: PC/ DVI signal Audio input [10]
Computer connection
Connect the VGA cable and Audio cable from the VGA signal input and PC Audio input to
the corresponding ports on your A/V device.
--- VIDEO: VGA signal input [3]
--- AUDIO: PC Audio input [10]

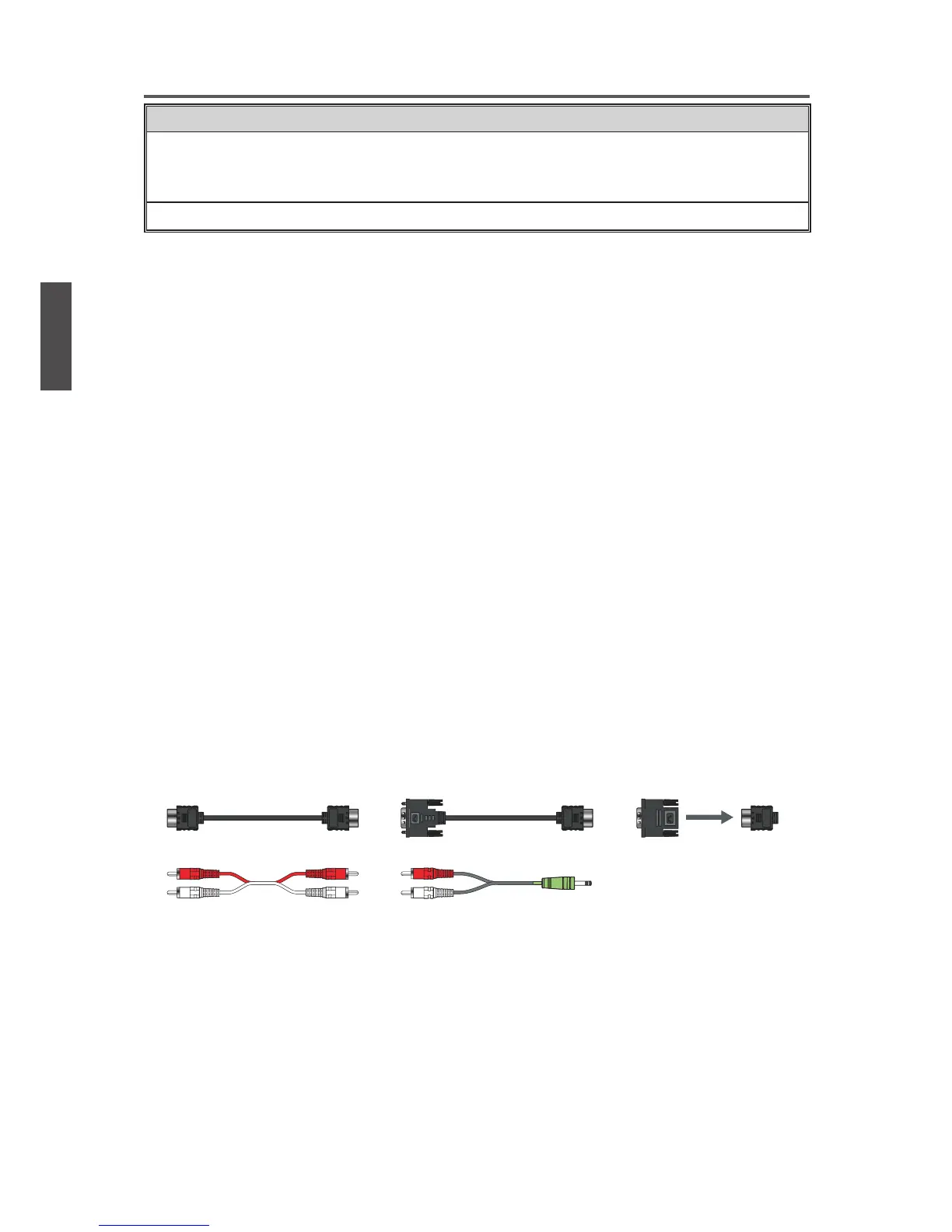

DVI-to-HDMI cableHDMI cable
Audio cableAudio cable
DVI-to-HDMI adapter
