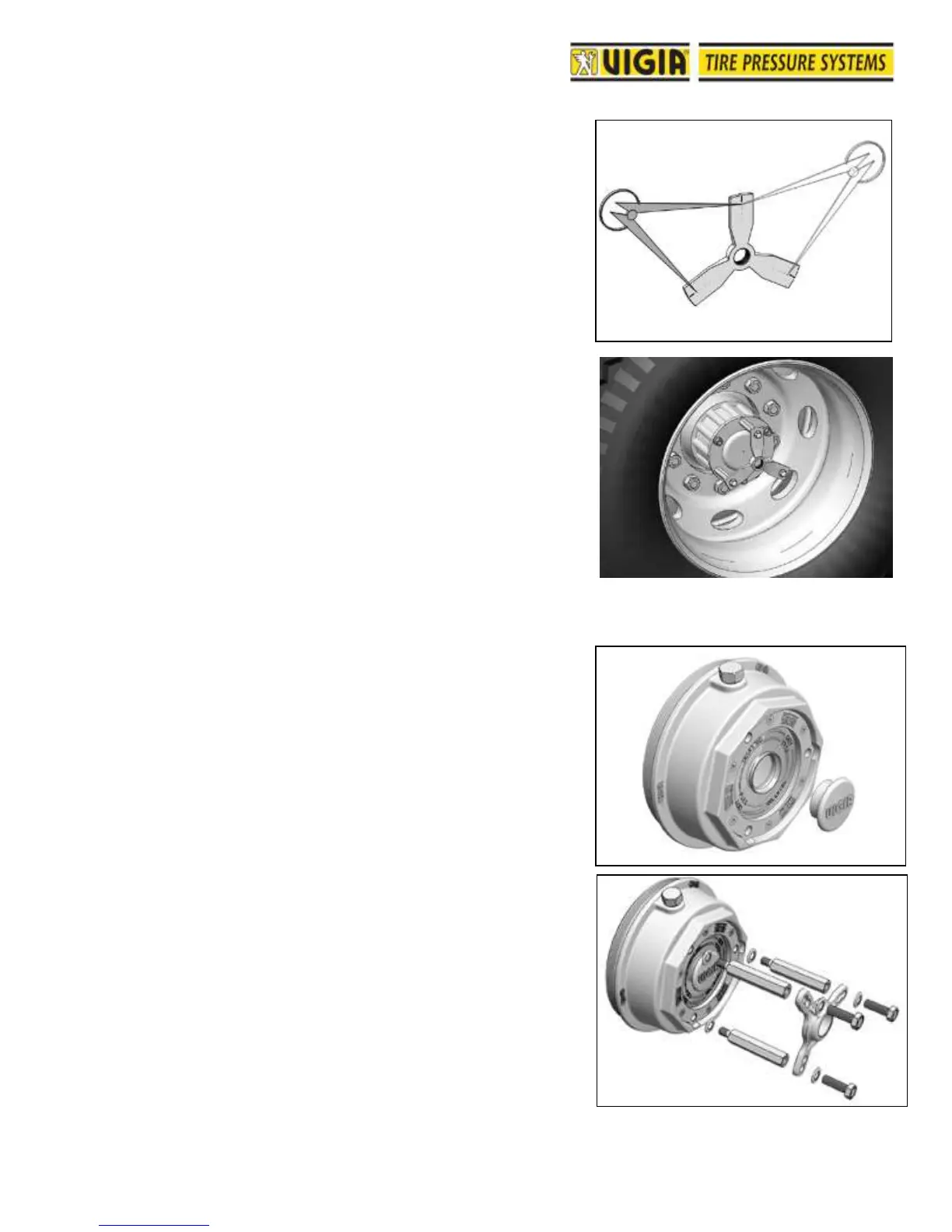

5- Apply the measurement to two of the star
spokes, marking the points. Then, using one of
the marked points as a reference, apply the
measurement to the third spoke (Fig. 12).
The selected points must be located at the
same distance from the star's outer edge.
If the distance measured with the compass falls
in between two points, mark a third point
between the other two points, maintaining the
original distance measurement.
6- Drill the selected points with a 0.5 mm (13/64")
bit first, and then with a 10.25 mm (13/32") bit.
Fasten the star to the stud bolts with the
washers and nuts provided (Fig. 13).
C) THREADED CAPS
This element is used in units with a threaded cap hub.
INSTALLATION PROCEDURE
1- Take the original threaded cap out (in models
with oil, first collect the oil in a clean container).
2- Secure the provided VIGIA threaded cap in
place. It must be the one specific to the unit.
The model with a central hole is for units
carrying oil. Replace the oil through the central
hole in the threaded cap. Install the plug (A).
3- Put the disk or star in place, fastening it with the
stud bolts, nuts or bolts provided.
