Vigia NM343 - Connecting Valves to Rotor

9

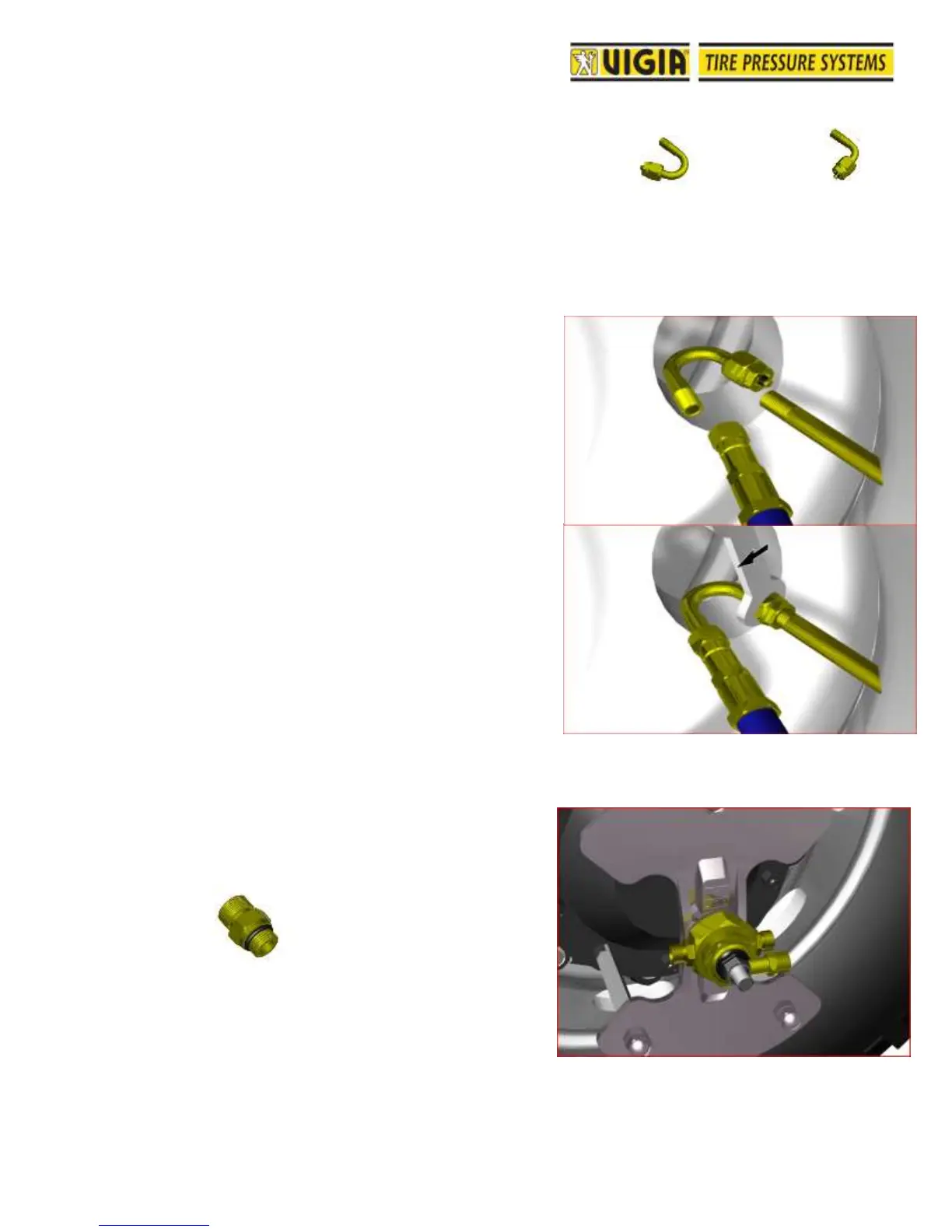

Outside tires require the Outside tire connector
“U” (Fig. 26)
Single tires require the Outside tire connector “L”
(Fig. 27)
INSTALLATION PROCEDURE (Fig.28)
1- Thoroughly clean the external thread of the
original tire valve, preferably with a threading
tool.
2- Remove the original valve core.
3- Screw on the Outside tire connector, if required,
lightly tightening it with a wrench.
4- Screw on the VIGIA valve, lightly tightening it
with a wrench.
5- Ensure that the tire pressure is lower than the
desired calibrated tire pressure.
VIGIA hose and tire valves must not rub against the
wheel rims and/or hubs.
Important: Remove any tire extensions.
CONNECTING TIRE VALVES TO ROTOR
1- Insert the Nipples for Rotor (Fig. 29) to the
VIGIA rotor and torque to approximately 2
Lb./Ft. (Fig. 30).
Fig. 26
Fig. 27
Fig. 28
Fig. 29
Fig. 30
