In this example, Table 1 shows that the dashed disk
lines to be used are numbers 0, 4, 4. Therefore, with the
centre on a point on line 0, the rest of the points are
placed on lines 4, obtaining three reference points at the
same distance from the disk's outer edge (Fig. 6).

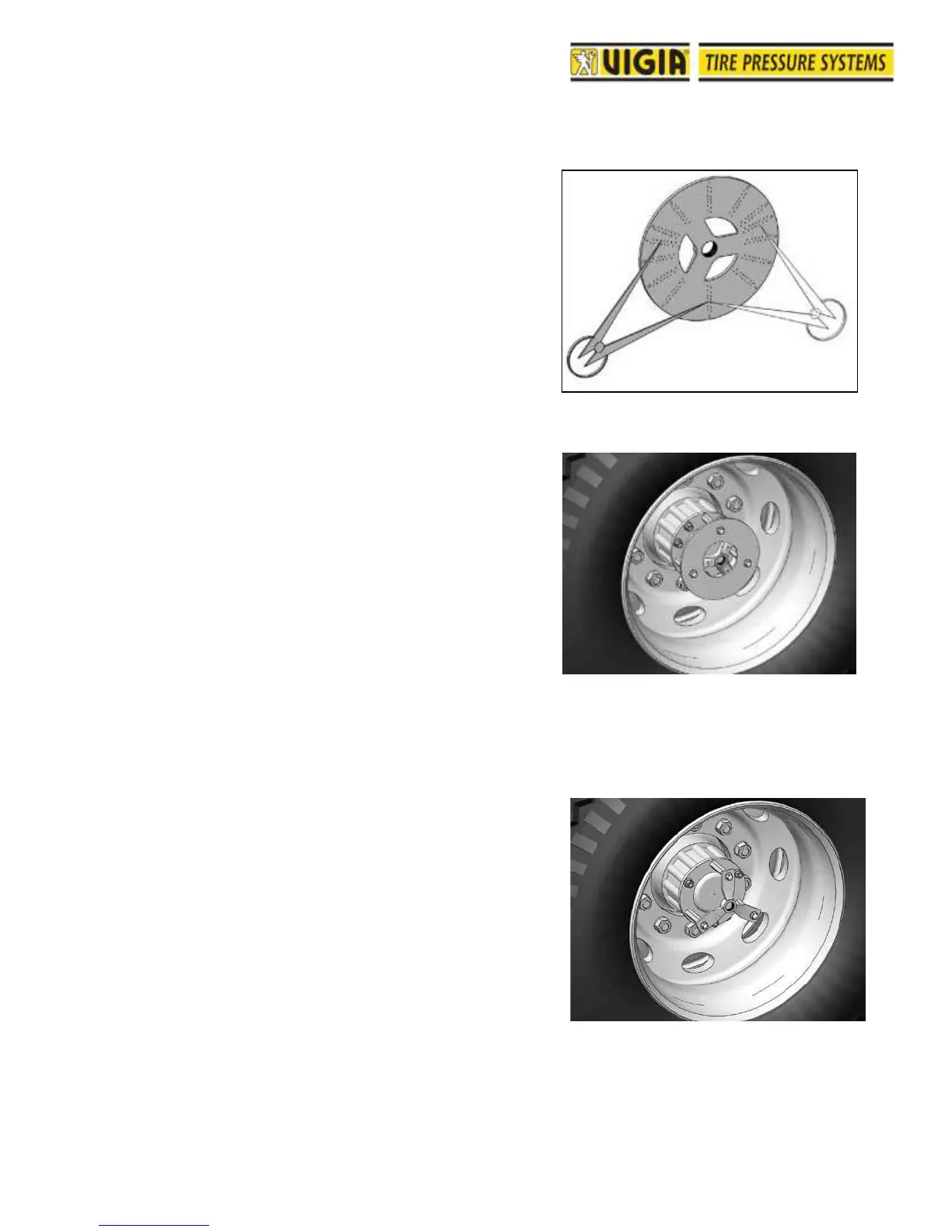

Figure 6
The selected points are drilled, fastening the disk to the
stud bolts with the washers and nuts provided (Fig. 7).
Figure 7
B) STARS
This element can replace the disks in units whose hubs
have 3, 6, 9, 12, or 15 fastening nuts or bolts. Three of
the nuts or bolts must be replaced by Vigia stud bolts
that are provided with the system (Fig. 8).
Vigia stud bolts are available for different thread sizes
and lengths.
Figure 8
