2.4 - BODY COUPLINGS
VIGIA offers three models of body couplings (Fig. 34):
a) Double outlet
b) Standard
c) Quick connect
All models include a spacer that can be placed either
inside or outside the body, fender or other mounting part,
depending on vehicle characteristics (Fig. 35).
INSTALLATION PROCEDURE
VIGIA offers several body mounting attachments
designed to prevent air hoses from extending beyond
the vehicle's body, or to avoid perforating fenders, body
or cabin (fig. 36). Make sure that the hose does not rub
against the mounting, even in extreme situations.

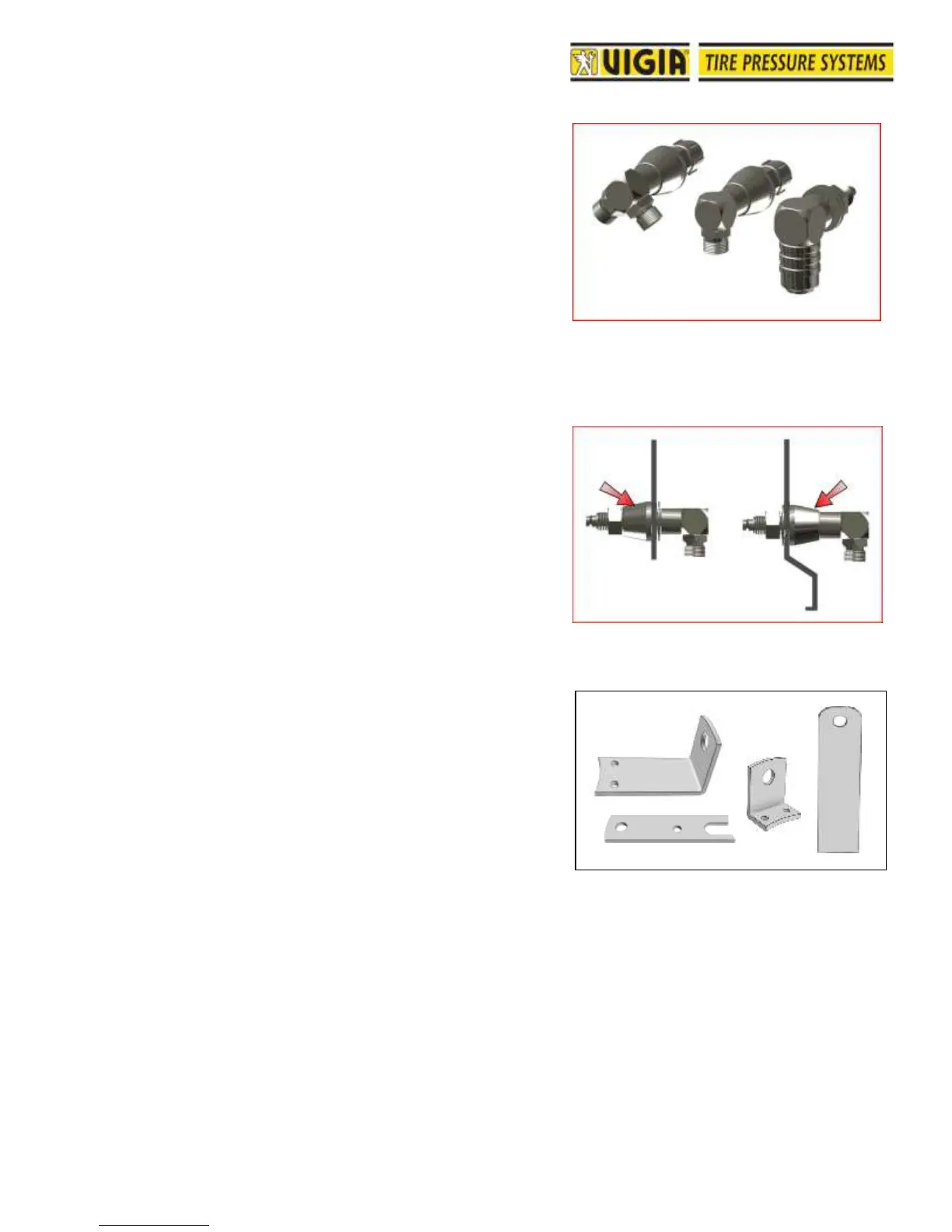

Fig. 34
