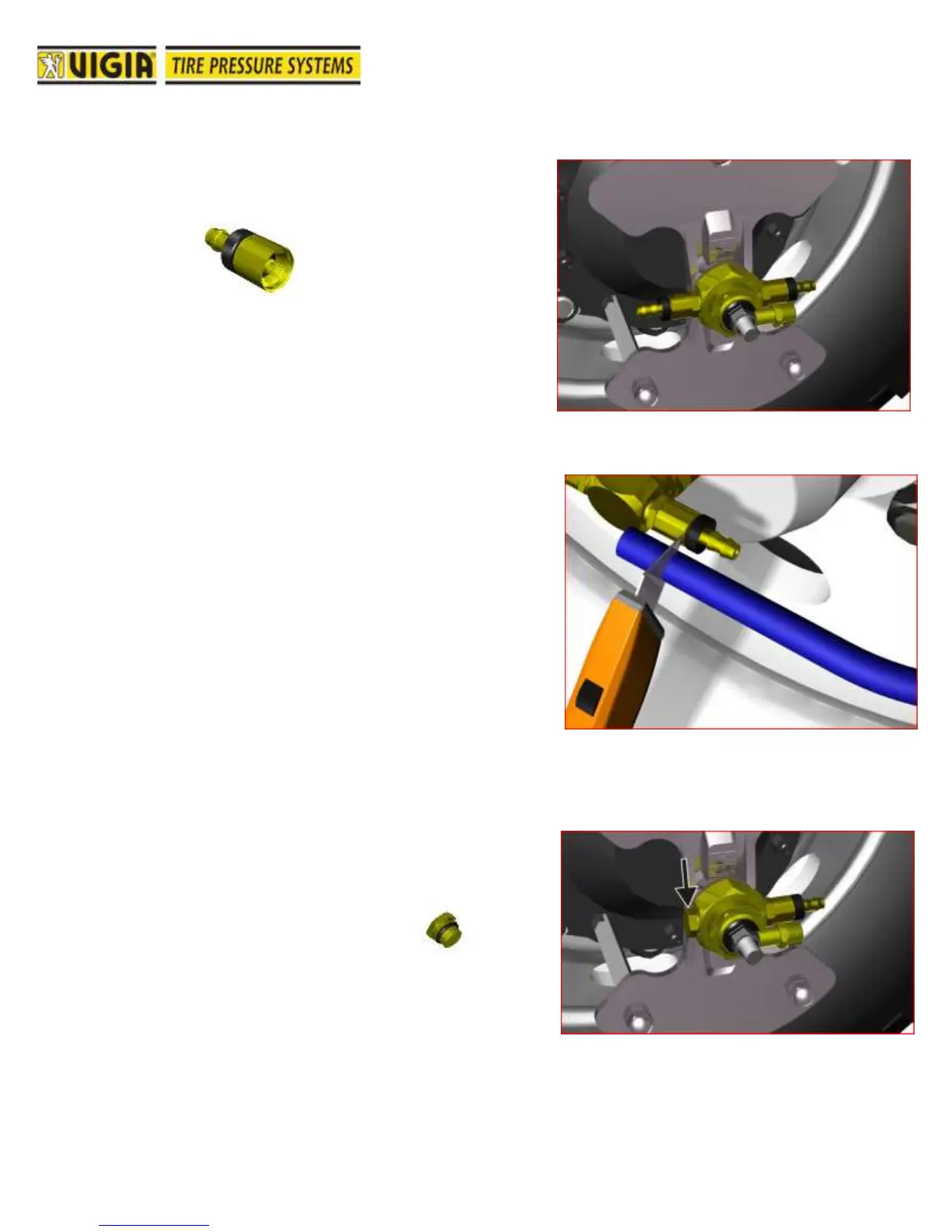

2- Screw the End Hose Connectors (Fig. 31) to the
Nipples for Rotor and torque to approximately 1
Lb./Ft. (Fig. 32).
3- Extend tire valve hose to the rotor, making sure
that it is not touching the rotor mounting, hub or
wheel rim.
Cut tire valve hose as shown in Figure 33 and
push free end into End Hose Connector nipple.
For single tire, install a Plug for Rotor (Fig. 34)
on the open rotor output.
Fig. 31
Fig. 32
Fig. 33
Fig. 33
