2.7 – CONTROL AND DISPLAY MODULES
VIGIA offers control modules for 2 or 3 independent
pressures. Control Module NM343 is apt for exterior
installation.
The digital Display Module NM343 shows tire pressure
for each circuit connected to it to a maximum of nine.
Each circuit can be monitored sequentially or on
demand. Display Module NM343 is for interior use only.

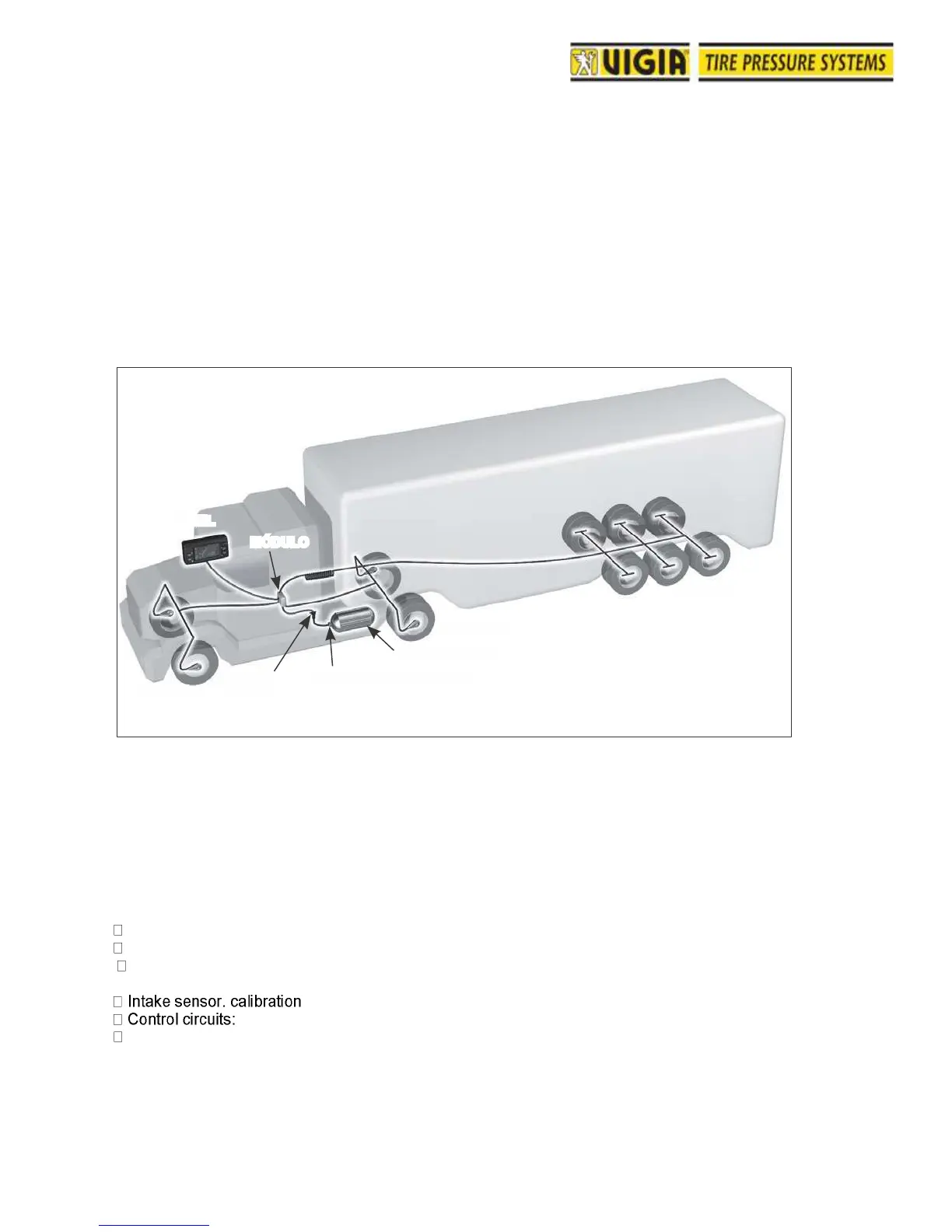

LOCATION OF MODULES
CONTROL MODULE NM343
The control module permanently controls and adjusts tire
pressures in the tires and sends the information to the
display module.
Technical Characteristics
Surge protection.
Polarity inversion protection.
Dimensions: length 194 mm. (7 5/8"); width 139 mm.
(5 15/32"); height 61 mm. (2 13/32").
at 80 PSI (5.5 BAR).
up to 9 different [pressures.
Made of aluminum. Interior or exterior installation.
CIRCUIT 2
AIR TANK
PROTECTION VALVE
AIR FILTER
CIRCUIT 1
DISPLAY MODULE
CONTROL MODULE
CIRCUIT 3
