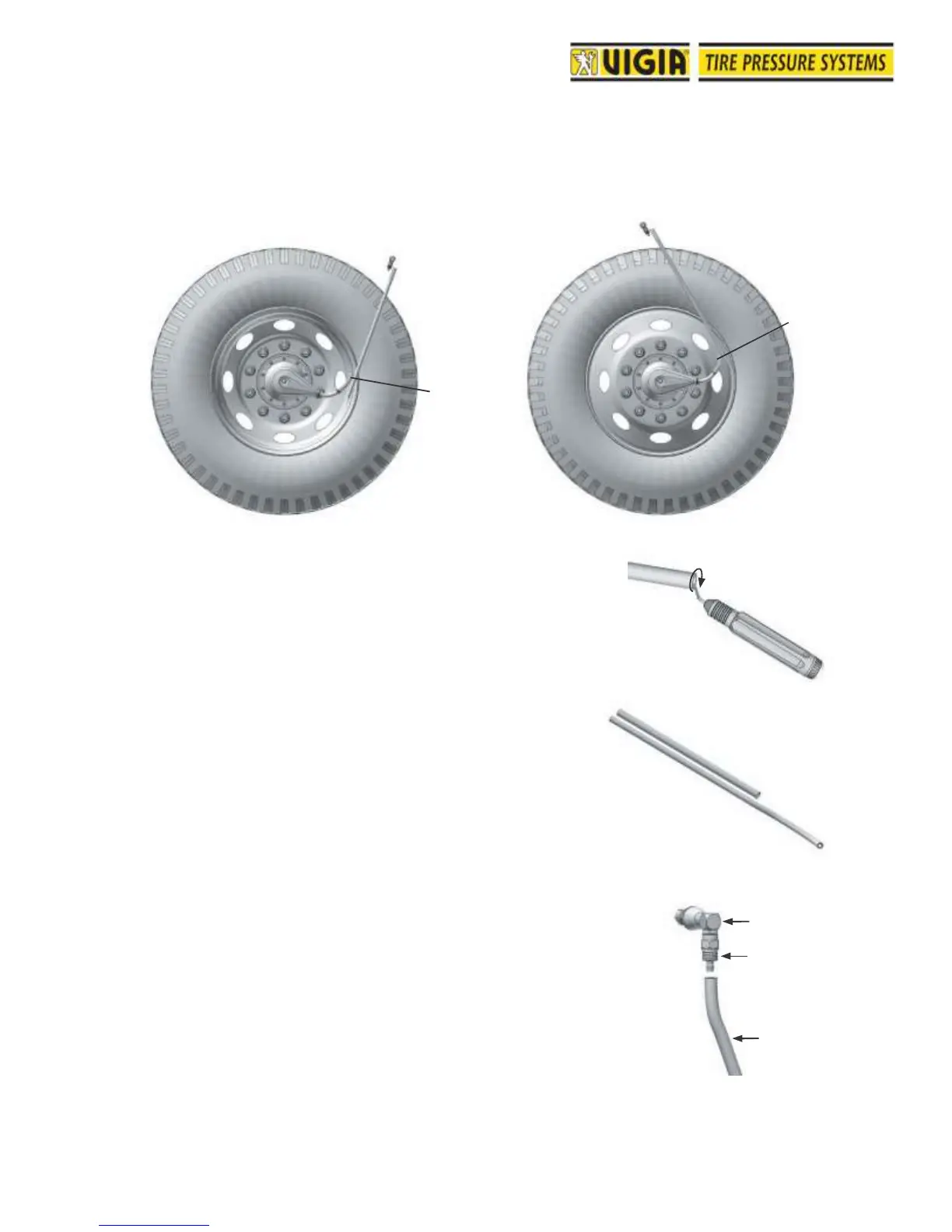

7. Measure the stainless steel pipe length. To that end, position the assembled rotor cover and pipe as
shown in the drawings below.
Cut stainless steel pipe if necessary.
NON STEERING AXLES STEERING AXLES
CUT HERE
CUT HERE
When cutting the stainless steel pipe, use the appro-
priate tool to eliminate any sharp edges.
8. Cut the hose Push-Lok 36 cm. (14 3/16”) longer than the stain-
less steel pipe; i.e. stainless steel 40 cm. (15 3/4”), hose must be
76 cm. (29 15/16”).
4
0
C
M
.
7
6
C
M
.
9. Insert one hose end to the nipple for body coupling.
BODY COUPLING
NIPPLE FOR
BODY
COUPLING
HOSE
PUSH-LOK
