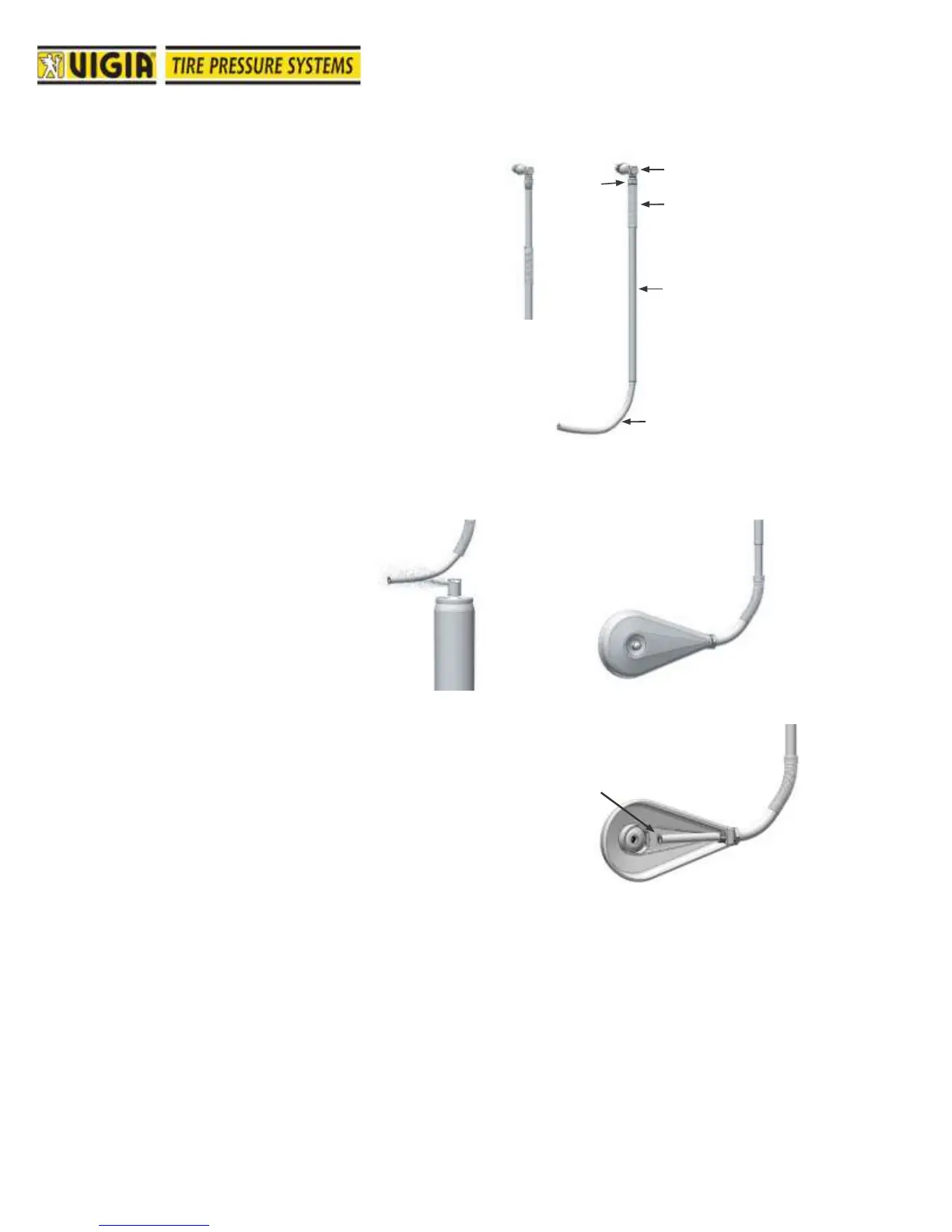

10. Pass the hose through the stainless steel pipe and screw

the spring’s free end to the body coupling.

ANDARD BODY

UPLING 5/16”

NIPPLE

FOR BODY

COUPLING

SPRING 15 x 90 MM. -

STAINLESS STEEL

PIPE 60 CM.

PUSH-LOK HOSEPIPE

11. Lubricate the hose’s free end with silicone or similar product and pass it through the rotor cover ass-

embly.

12. Insert the spring to the stainless steel pipe.

Cut the hose at the mark with number 3.
