2 - SYSTEM COMPONENTS
2.1 - ROTOR MOUNTINGS
VIGIA provides different rotor mountings for different hub types.
A) DISKS

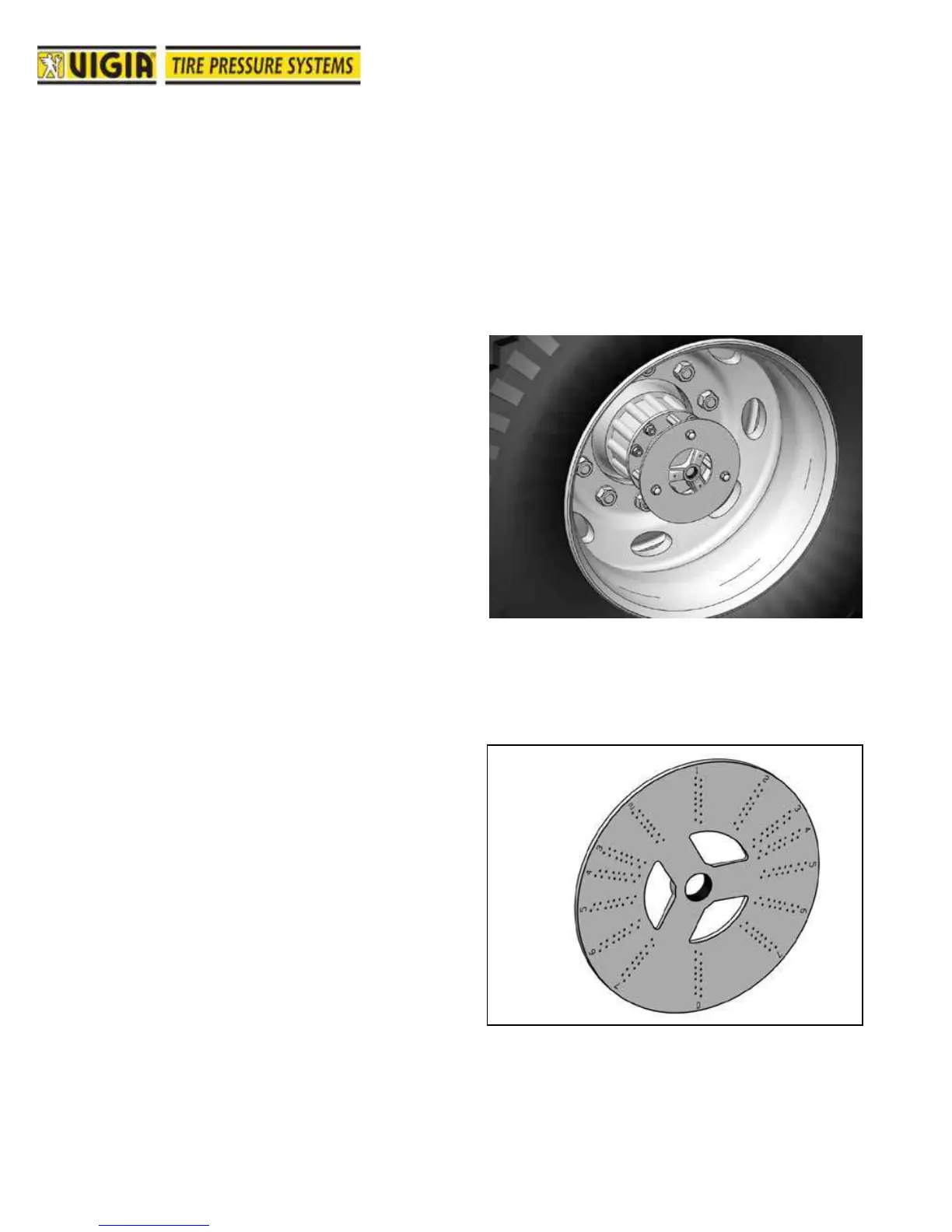

To install the disks, replace nuts or bolts in the hub with Vigia stud bolts according to the Table in next
page (Fig. 1). Vigia stud bolts are available for different thread sizes and lengths.
Figure 1
One of the disk's faces has dash lines identified by numbers in the outer edge. These lines will be used
for drilling and centring (Fig. 2).
Figure 2
