2) Air Filter: Secure in the selected position
with the bolts, washers and nuts provided.
3) 5/16" Hose: Connect so that the hose
remains stretched (Fig. 85). Under no
circumstance it should be below the
connector or joint level (Fig. 87).
Note:
1) The air filter will prevent problems
ONLY in the VIGIA system;
therefore the air tanks should be
drained periodically.
2) The air filter must be cleaned at
least twice a year to ensure proper
operation.
3) When disassembling/assembling
the air filter for cleaning, pay
attention to the order of the

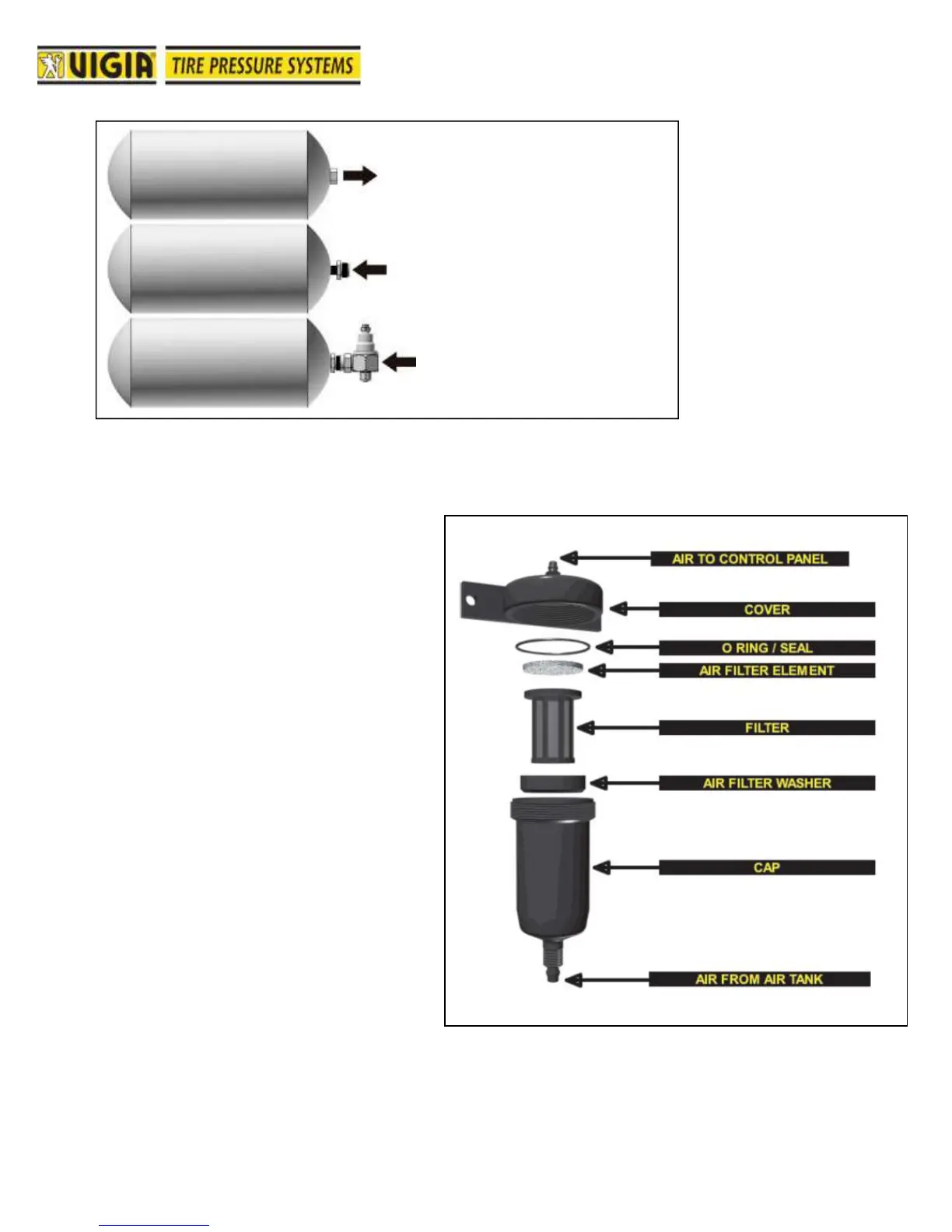

components (Fig. 90).
4) Maximum allowed pressure: 200
PSI (14 BAR).
REMOVE THE ORIGINAL PLUG LOCATED
IN THE MIDDLE OR TOP OF THE AIR TANK
PUT THE CORRESPONDING COUPLING
INSTALL THE BLOCKING VALVE
