DISK FASTENING EXAMPLE

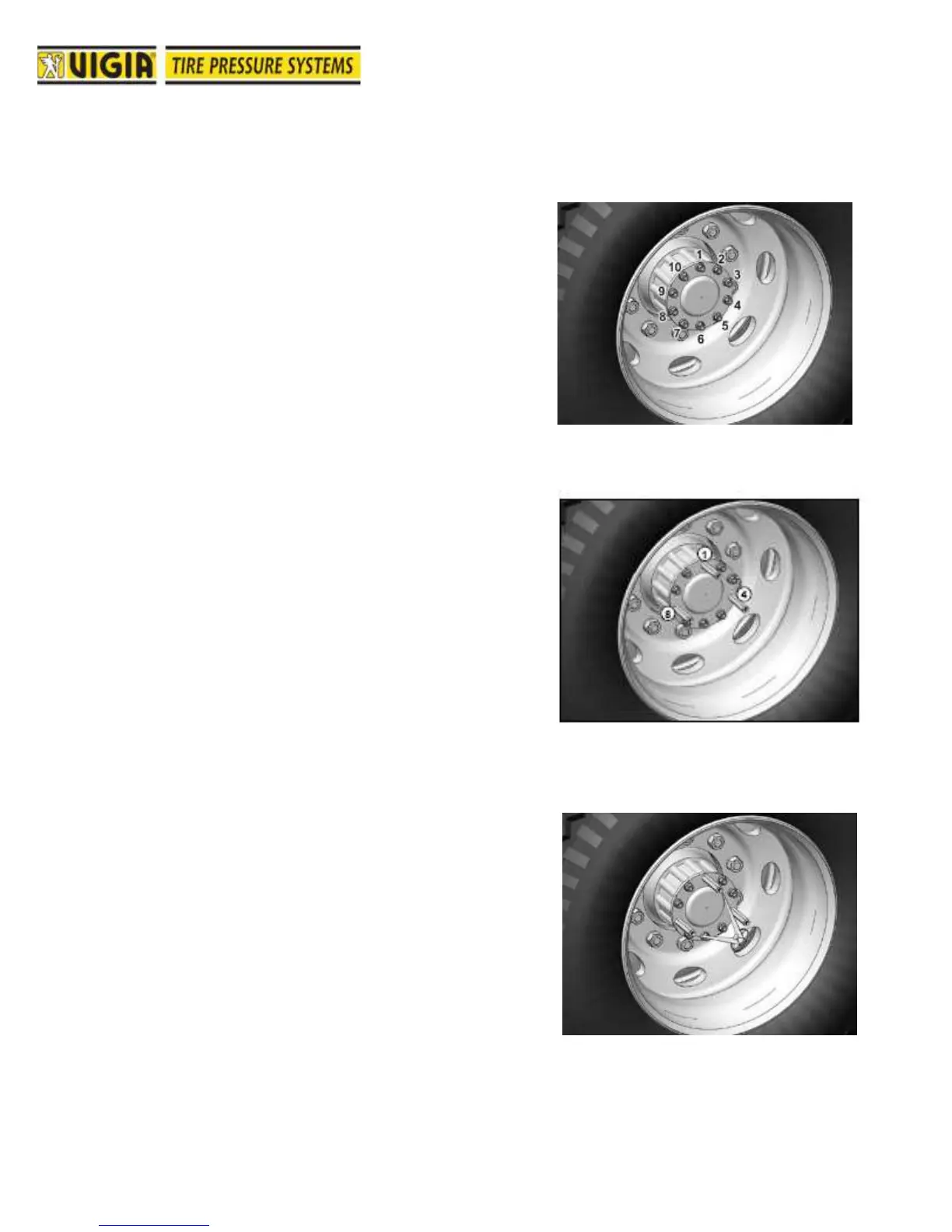

An axle with a 10-nut hub is shown. The fastening nuts
are numbered as specified in step 2 (Fig. 3).
Figure 3
From Table 1, it is determined that for a 10-nut hub, 3
stud bolts should be used to replace nuts numbers 1, 4
and 8, which must be taken out and replaced with the
stud bolts provided with the system (Fig. 4).
Figure 4
The distance between the centre of the stud bolt that
replaced nut # 1 and the centre of the next stud bolt is
measured (Fig. 5).
Figure 5
