Viking Access Systems i-8 - Accessory Connections: Commands and Safety; Open Commands Wiring; Safety Connections for Entrapment Protection

ACCESSORY CONNECTIONSACCESSORY CONNECTIONS
TECHNICAL SUPPORT 1 800 908 0884
22
Vehicle loop detectors must be installed to
decrease the possibility of vehicle
entrapment on the gate (see page 20).
The SECONDARY ENTRAPMENT PROTECTION
like the edge sensor and the photoelectric
beam MUST BE PART OF EVERY SINGLE
INSTALLATION to prevent pedestrian or
animal entrapment (see pages 6 and 7).
The edge sensor and/or the photoelectric
beam must be UL325 compliant devices.
Open Commands
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND Close Stop Open
GND Close Stop Open
Gnd Fire Gnd Strike Gnd Exit
Gnd Center Gnd
Reopen Gnd UL Gnd +28v
Gnd Radio
Gnd +28v
+28v
Mag.
Lock
Fail
S
afe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Check Motor
Hold Open
Timer
Stop
Close Open
30
60
Off
1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
JP3
C35 C36
Exit
Loop
Detector
Fire
Override
Keypad
FIRE
Safety Connections
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
24V BAT 24VAC
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Radio StationLoop ConnectorOpen CommandsGuard StationMaster/Slave
GND Close Stop Open GND Close Stop Open Gnd Fire Gnd Strike Gnd Exit
Gnd Center Gnd
Reopen Gnd UL Gnd +28v Gnd Radio Gnd +28v +28v
Mag.
Lock
F
ail
Safe/Secure
MAG. LOCK
N.C.
COM
N.O.
Charger
Power
Low Battery
Check Motor
Hold Open
Timer
Stop
Close Open
30
60
Off
1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
JP3
C35 C36
Center
Loop
Detector
Reopen
Loop
Detector
Photo
Beam
Edge Sensor
1
2

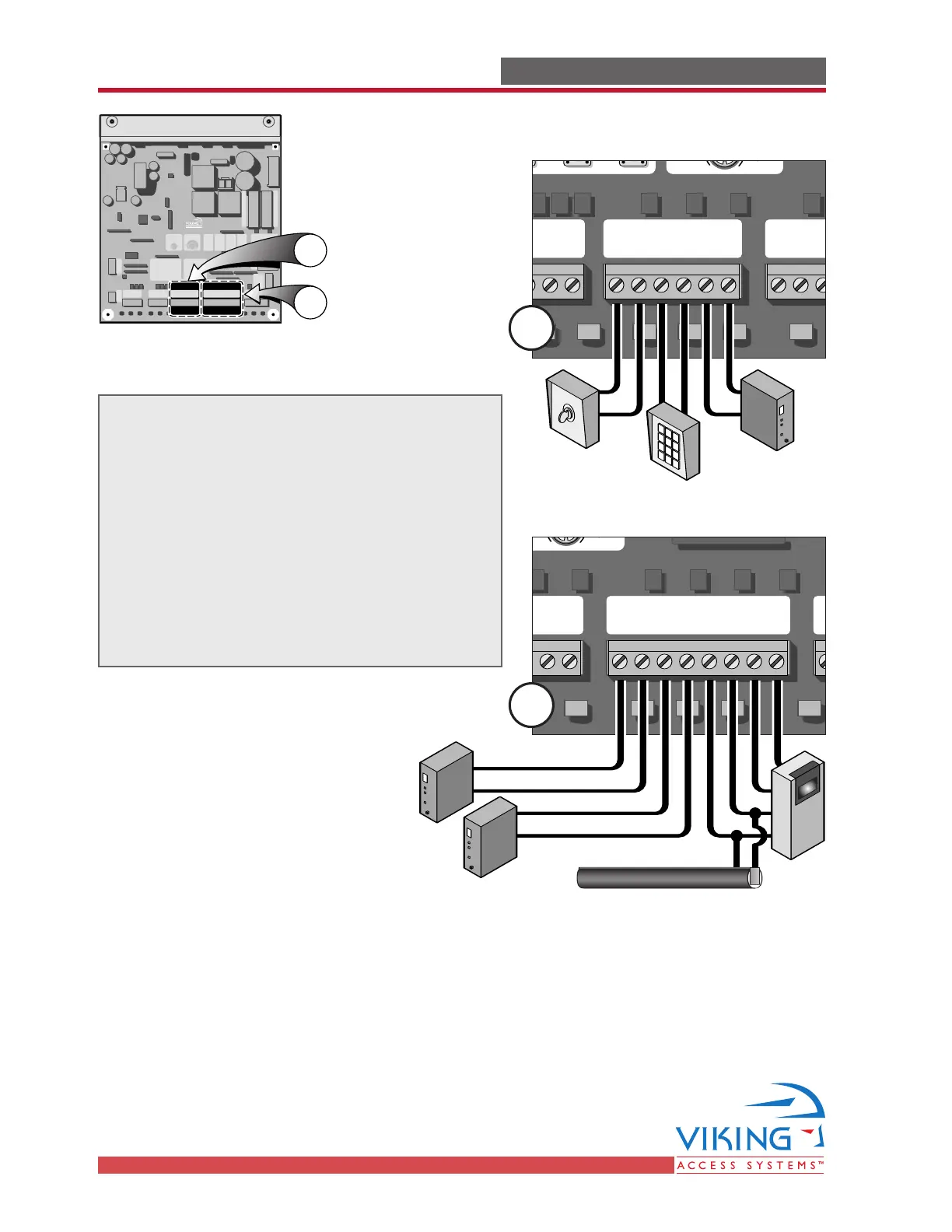

Connection Locations
(Single Unit Board shown)
2
1
