Viking Access Systems i-8 - Viking Electromagnetic Lock Installation; Electromagnetic Lock Standard Features

TECHNICAL SUPPORT 1 800 908 0884
26
This Magnetic Lock is an OPTIONAL ACCESSORY available
from Viking Access Systems. Please order part number VA-

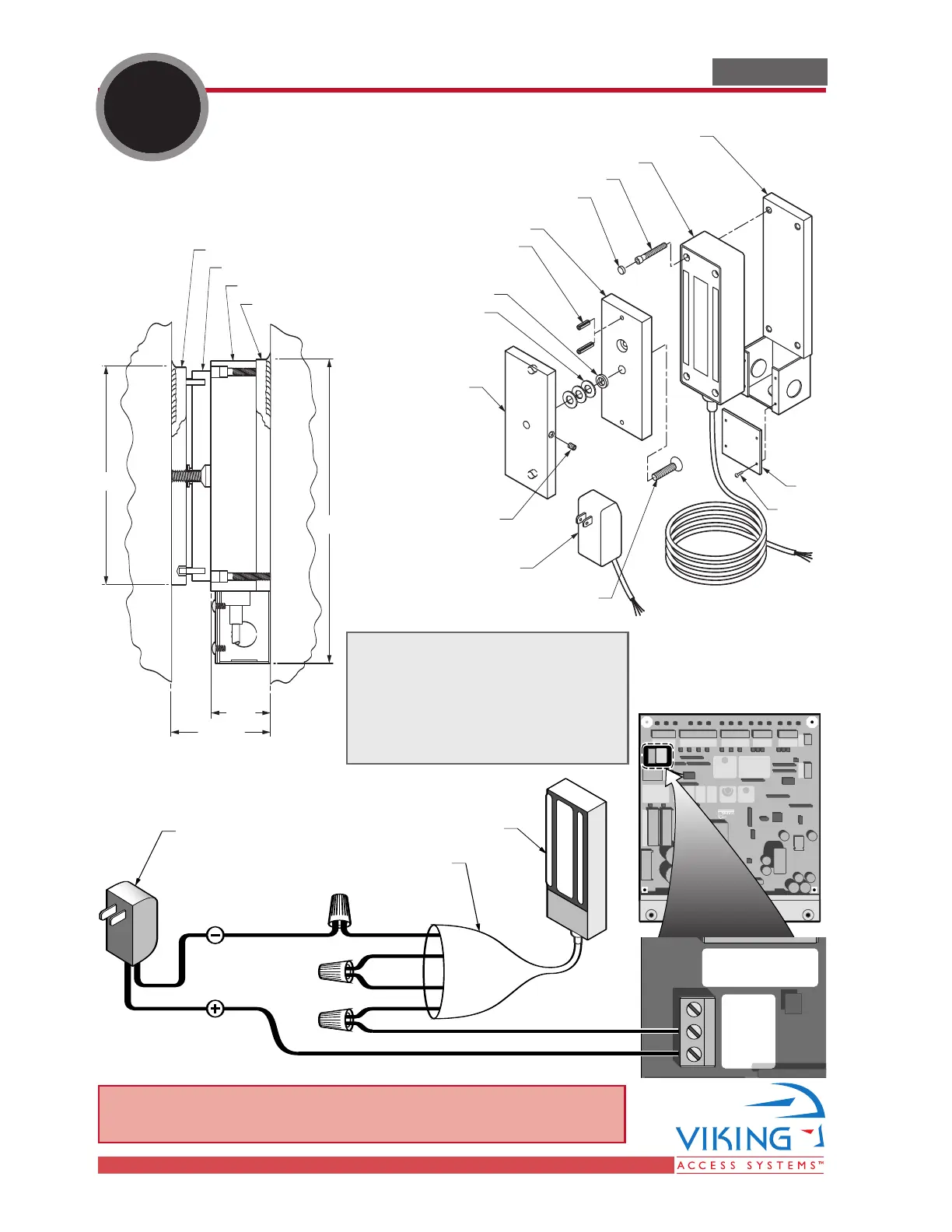

Mounting Plate/Juction Box
(
Weld to Post)
Mounting Plate
(
Weld to Gate)
Set Screw
(Locks Floating Plate
Mounting Screw)
Floating Plate
Mounting Screw
24 Volt DC Transformer
(Supplied with Lock Kit)
C
over
Plate
C
over Plate
Mounting
Screw (4)
M
agnetic Lock
M
ounting Screw (4)
Mounting Screw
W
eather Cover (4)
Flexible Washer
S
pacer (0 to 3)
Use to adjust
gap between
Floating Plate and
Magnetic Lock
G
uide Pin (2)
Use long or short pin
d
epending on number
of spacers used
F
loating Plate
3.000" to
3.125"
(example)
10.625"
7.5"
2.100"
Mounting Plate/
J
uction Box
M
ounting Plate
Magnetic Lock
Floating Plate
M
M
-
-
2
2
™
VIKING ELECTROMAGNETIC LOCKVIKING ELECTROMAGNETIC LOCK
Standard Features
•
Mounting base with electrical box
• 24VDC Plug-in transformer
• 12VDC or 24VDC operation
• 500mA at 12VDC operation
• 250mA at 24VDC operation
•
1300 pounds of holding force
External supply for the magnetic
lock must be provided. This will
prevent rapid drainage of the bat-
tery in the event of power failure.
Relay Contact 10A-250VAC
Connection Location
Radio Station
Mag.
Lock
Mag. Lock
Safety ConnectorOpen CommandsGuard StationMaster/Slave
Brake
UL
Siren
Radio
Rec.
UL
Sensor
OPEN RIGHT
OPEN LEFT
Safety
Loop
Center
Loop
Obstruction
Sensor
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop
Overlap Delay
Close Open
Obstruction
Sensor
min.MAX
Overlap Delay
1.5
0
3
Radio Station
Loop Connector Open Commands Guard Station
Master/Slave
GND Close Stop Open GND Close Stop Open Gnd Fire Gnd Strike Gnd Exit Gnd Center Gnd Reopen Gnd UL Gnd +28v Gnd Radio Gnd +28v +28v
Mag.
Lock
Fail Safe/Secure
Mag. Lock
N.C.
COM
N.O.
Charger
Power
Low Battery
Motor Sensor
Hold Open
Timer
Stop CloseOpen
LimitLimit
30sec
60secoff
1sec
Radio
Rec.
UL
Sensor
Safety
Loop
Center
Loop
Brake
UL
Siren
Obstruction
Sensor
min. MAX
Overlap
Delay
1.5
0
3
Mag.
Lock
Fail
Safe/Secure
Hold Open
Timer
Stop
Close Open
30
60
Off
1
Radio
Rec.
UL
Sens
Safety
Loop
Center
Loop
Brake
Siren
Green
Black
White
Red
Green
Black
White
Red
24VDC Transformer
(Supplied with Lock Kit)
24VDC
Magnetic
Lock
4-wire Cable
(Supplied with
Lock Kit)
Magnetic
Lock
4-wire Cable
(Supplied with
Lock Kit)
12VDC
Transformer
12VDC
