Viking G-5 - Photocell

VIKING TECHNICAL SUPPORT 1.800.908.0884
31
Photocell
NOTE: The operator may be equipped with a FA-XP30-10K Photocell. Refer to pages 6-7
for UL325 requirements.

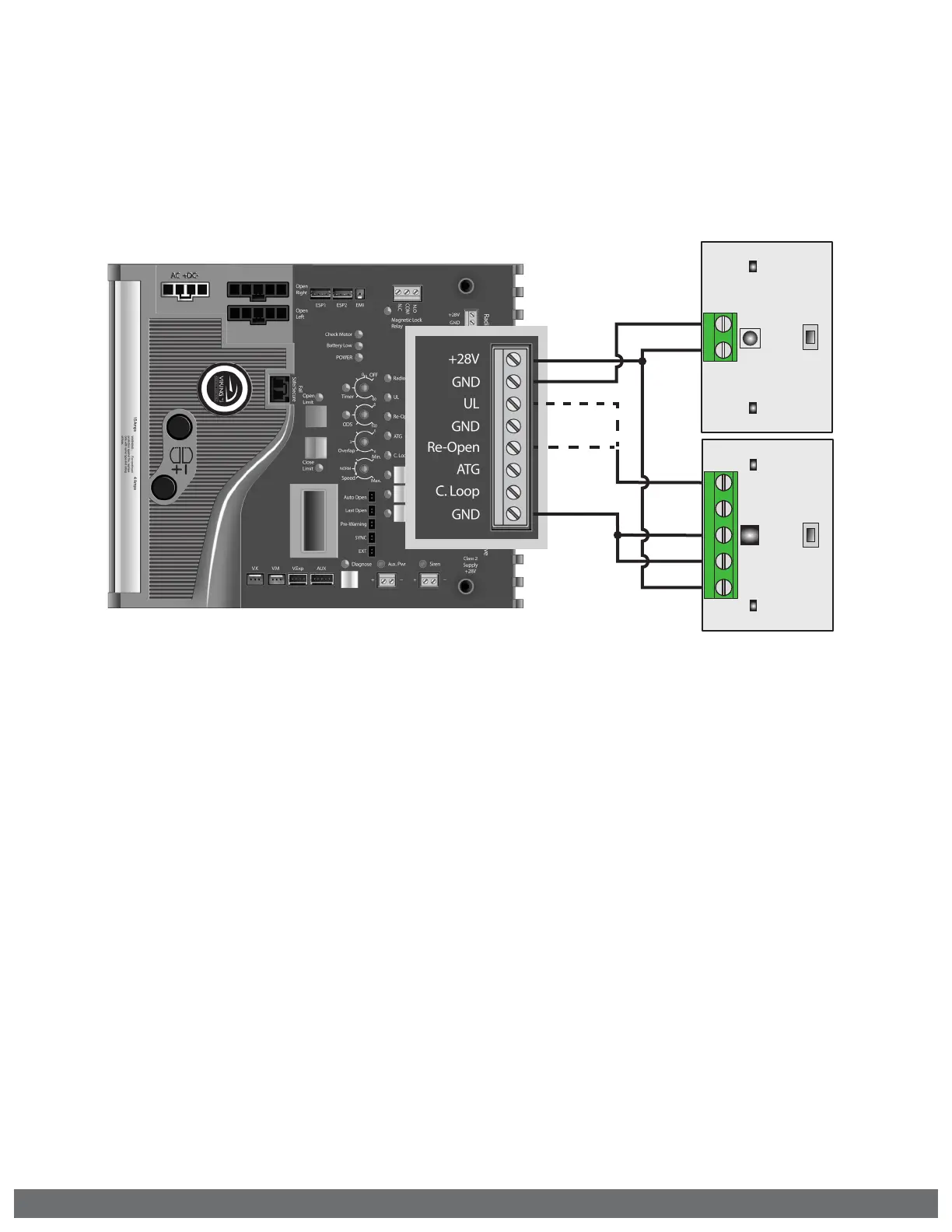

ACCESSORY CONNECTIONS
RX
DL1DL4
SW1
NC
-
NCNO COM
+
SW1
DL1DL2
+
-
+
TX
UL or
Re-Open
+
COM and –
