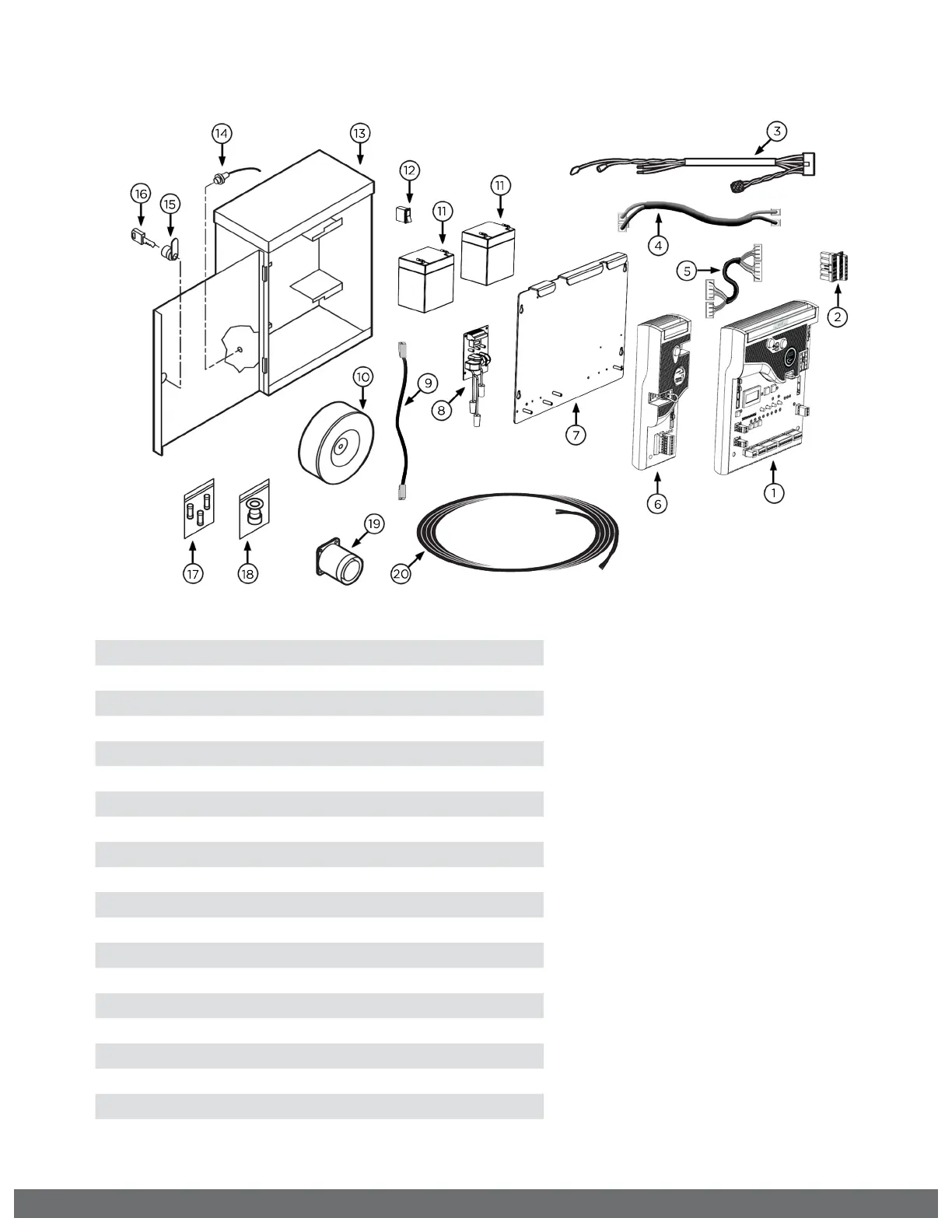

PARTS DIAGRAM - STANDARD ECU:
Item Description Part No.
1 Control Board - Primary VFLEXPCBU18
2 Motor Connector - Primary VECUMCM
3 Power Harness - Primary DUPHCECU
4 Secondary Power Harness (Dual Controller only) VECUSPH
5 Primary/Secondary Comm Cable (Dual Controller only) VECUMSC
6 Secondary Module (Dual Controller only) VFLEXSMU18
7 Board Mounting Plate VECUBMP
8 EMI Board DUEMI10
9 EMI Comm Cable HUSIGEMISW
10 Toroid Transformer - 10 amp DUTT10
11 Battery DUBB12
12 Battery Switch DUMRS10
13 ECU Cabinet Chassis VNXECUBB
14 Alarm Reset Switch ECURW
15 ECU Key Cylinder & Key(s) ECUKEYC20
16 ECU Access Key(s) ECUKEY20
17 Fuse Kit DUFSKNX
18 Strain Relief (ECU) DH3/4NMCC
19 Alarm DUAL10
20 6 Conductor Cable, per Foot VA-CB16
