Viking G-5 - Appendix (A) - Solar ECU; Specifications;Ratings

VIKING TECHNICAL SUPPORT 1.800.908.0884
42
! IMPORTANT: The following pages (42-51) refer ONLY to the Viking Solar ECU.
This ECU can be Identified by the following features:

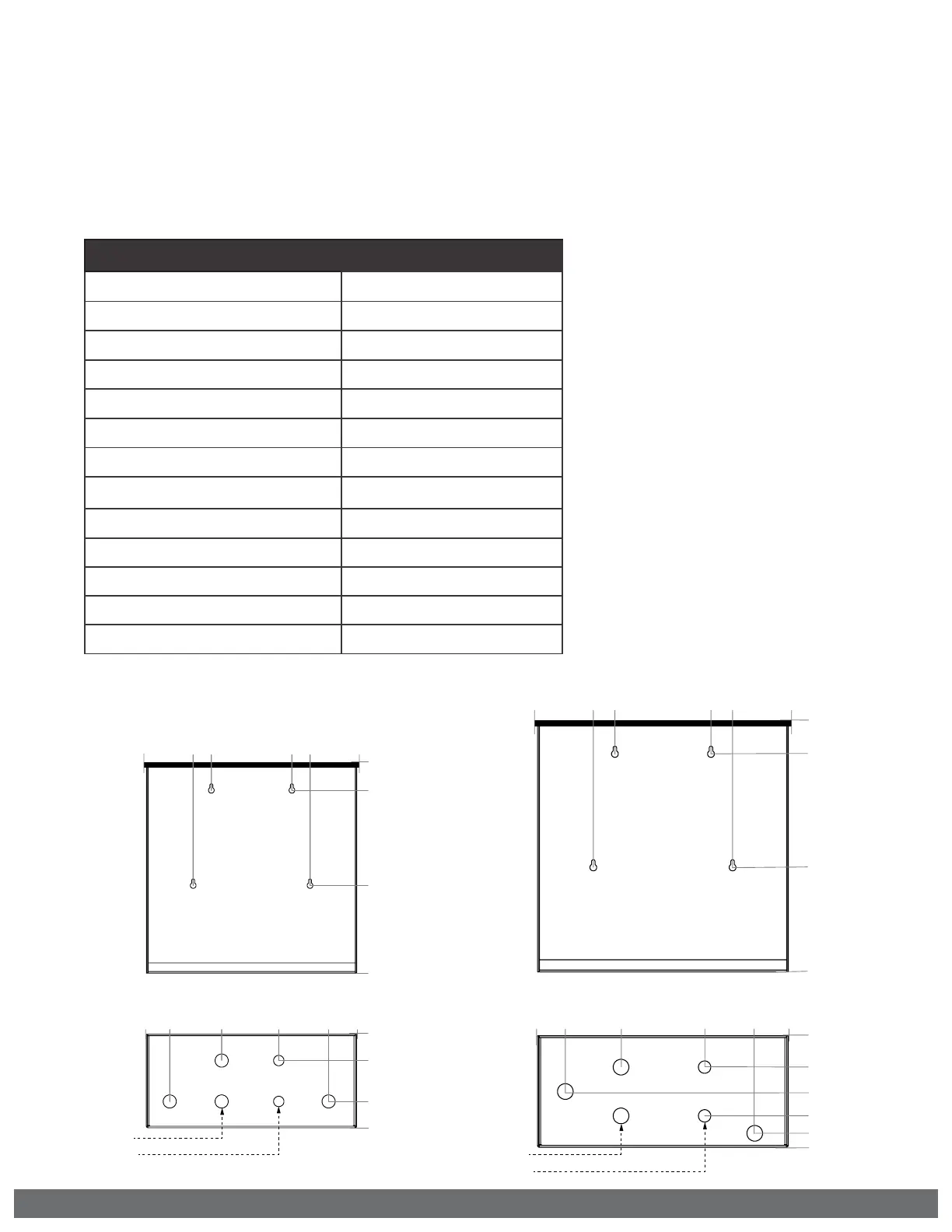

Appendix (A) - SOLAR ECU
SPECIFICATIONS/RATINGS
Main Power Source
Solar 12V
Solar Wattage Maximum 40W
Solar Voltage Nominal
12V
Solar Voltage Maximum 29V
Battery Voltage Nominal
12V
Battery Capacity Maximum 35Ah
Battery Voltage Minimum 8V
Charger Load Current 3.0A
Output Voltage 24VDC
Accessory Current Maximum 750mA
Power Consumption Single - Sleep 19mA
Power Consumption Dual - Sleep 23mA
Operating Temperature -20°F (-28°C) to 131°F (55°C)
0
2
6 12 18
0
1
2¼
4
5¾
8⅛
0 4⅜ 5⅞ 12⅞ 14⅜ 18¾
0
18⅛
7½
15¾
Front
Bottom
15½
Big Box ECU
(OPTIONAL)
4x Ø 1"
2x Ø ¾"
0 2 6 10 14 16
0
1½
4½
6⅛
0
3⅜ 4⅞ 11⅞ 13⅜
16¾
0
5¼
13½
15⅝
Front
Bottom
Standard ECU
4x Ø 1"
2x Ø ¾"
• Yellow Control Board
Cover
• Built-in Solar Charge
Regulator
• “Solar Volt” menu on LCD
Display
