45
! Power Saving Tip:
The Solar VFlex “Control Board” shuts
down the power at the“Aux. Pwr” Terminal
Block when the board is in sleep mode.
To save energy, get the power for all safety
devices used for Center, Re-Open and UL
inputs from “Aux. Pwr” terminal block.
A

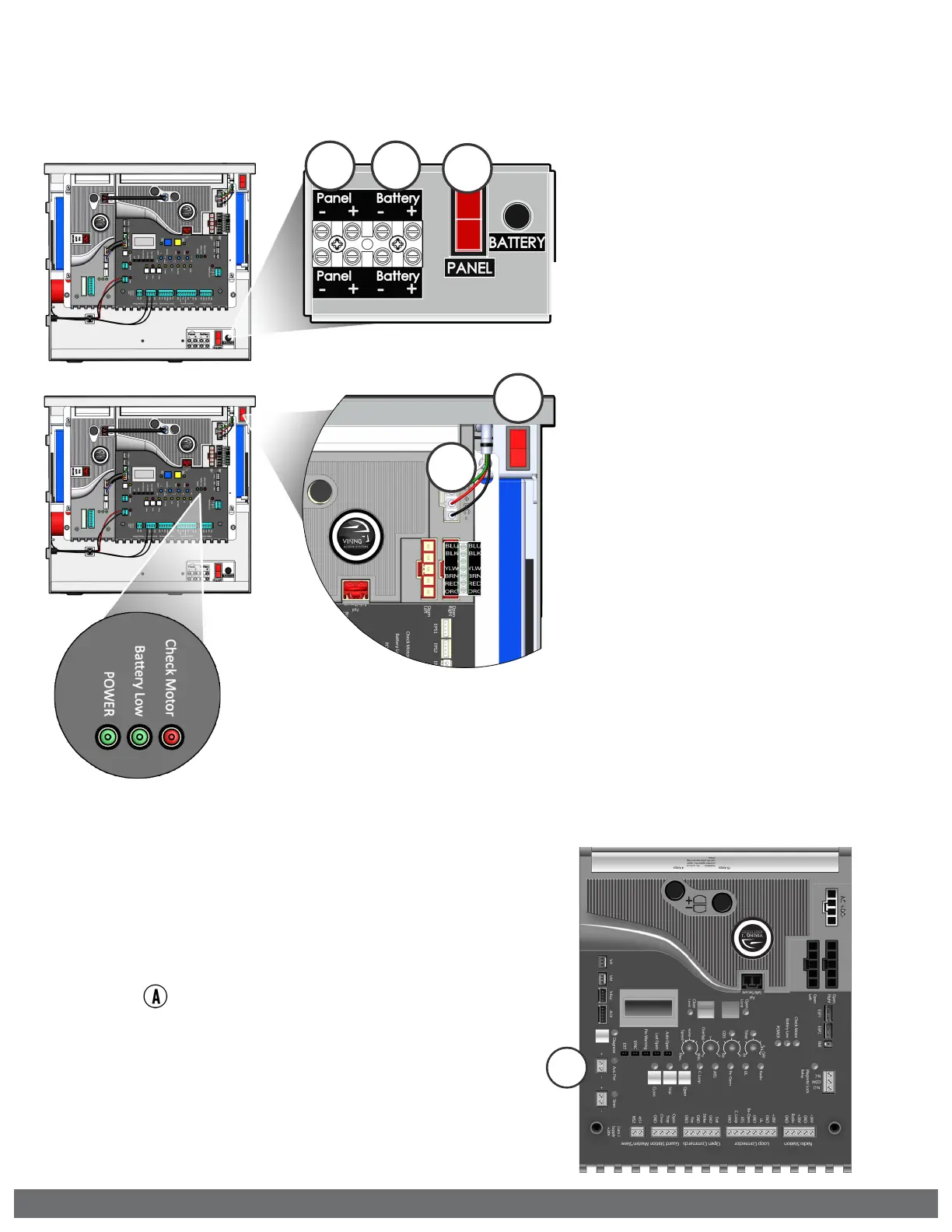

ELECTRICAL INSTALLATION - SOLAR ECU
Power Connections
! Caution: Ensure correct polarity
Step 1: Connect the 12V Solar
Panel to the terminals labeled
“ PA N E L”.
Step 2: Connect the 12V
Battery to the terminals labeled
“Battery”.
Step 3: Turn the “PANEL” switch
to the “RESET” position.
Step 4: Turn the “POWER”
Switch to the “RESET” position.
Step 5: Connect the Power
Harness and verify the
“POWER” LED is illuminated
solid.
1 2
3
4
5
