COMPONENTS IN THE FREEZER COMPARTMENT
The components that are accessible in the freezer compartment are:
• The freezer thermostat
• Light switch
• Evaporator fan motor
• Bimetal
• Defrost heater
Servicing the Freezer Thermostat and Light Switch
The freezer thermostat and the light switch are located in the control box at the top of the freezer
compartment.

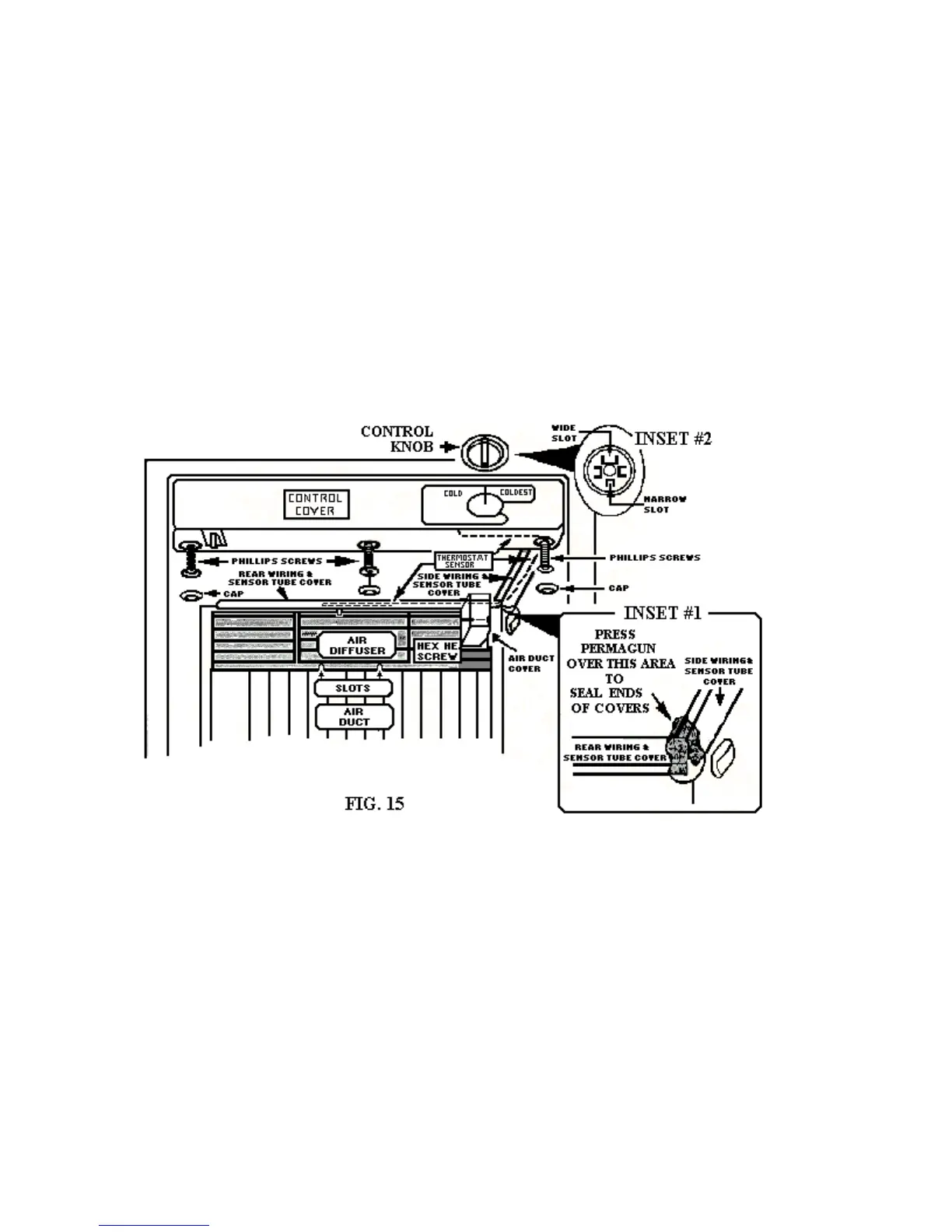

1. Remove the hex head screw securing the air duct at the upper right rear corner of the freezer and
remove the cover.
2. Remove the two hex head screws securing the side wiring harness cover to the upper right side of
the freezer and remove the cover.
3. Slide the air diffuser at the top of the freezer up and remove the air diffuser from the freezer
section.
4. Carefully remove the permagum from the upper right rear cover of the freezer. This material will
have to be reinstalled later. Keep it clean and safe.
5. Remove the three hex head screws securing the rear wiring harness cover to the top of the freezer.
17
