Servicing the Condenser Fan Motor

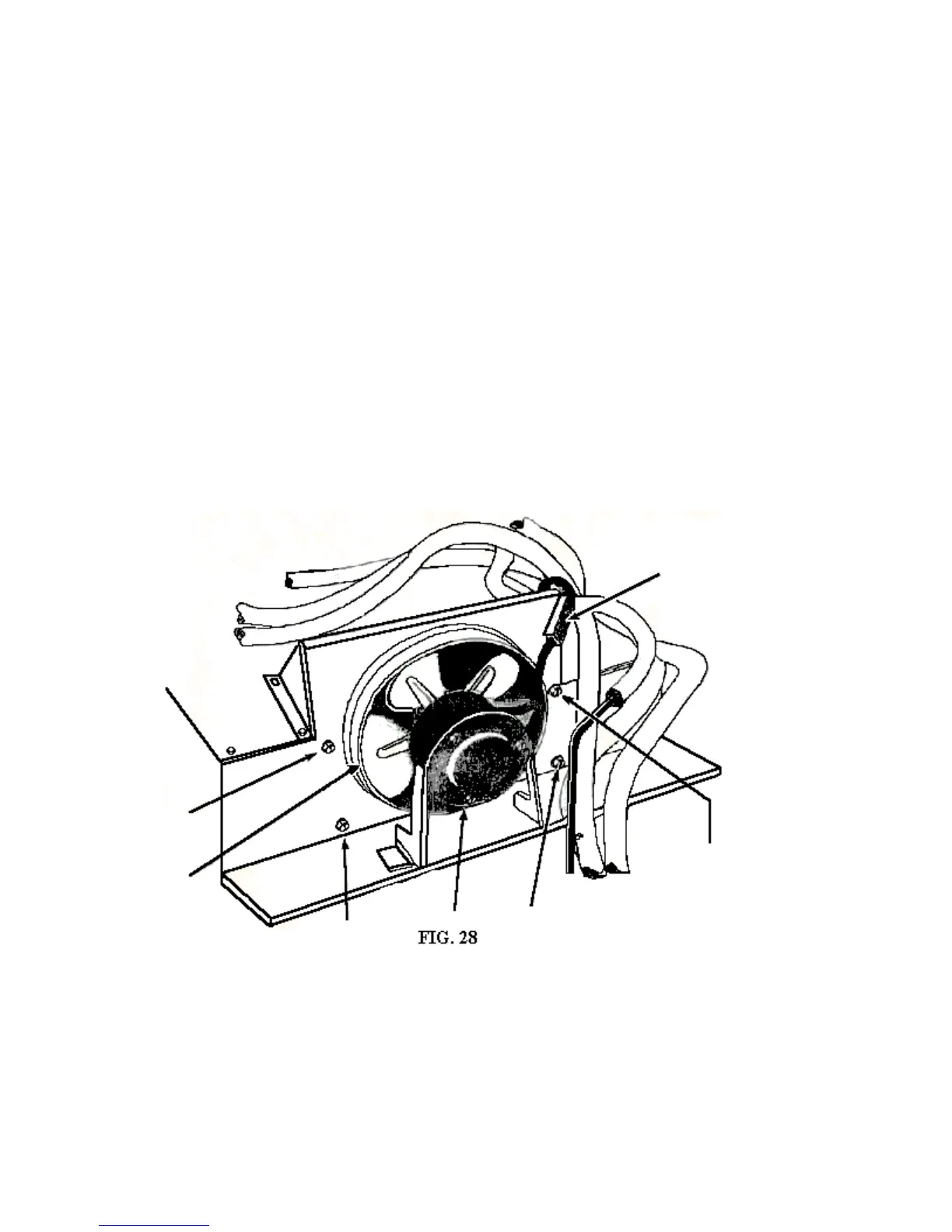

With the service tray pulled out the condenser fan motor can be serviced.
1. Remove the two hex head screws at the top of the fan shroud.
2. Loosen, but do not remove the three hex head screws securing the fan shroud flange to the condenser cover.
3. Slide the fan shroud off the condenser cover and set it aside.
4. Disconnect the wires from the fan motor terminals.
5. Remove the three hex heads screws securing the fan motor to the mounting bracket.
6
. Remove the nut securing the fan blades to the motor shaft.
26
