MODULAR ICE MAKER SERVICE
SHEET
Service Procedures
Cover-
Pull water adjustment knob first and snap off cover
index knob and reinstall in same position for same
water fill.

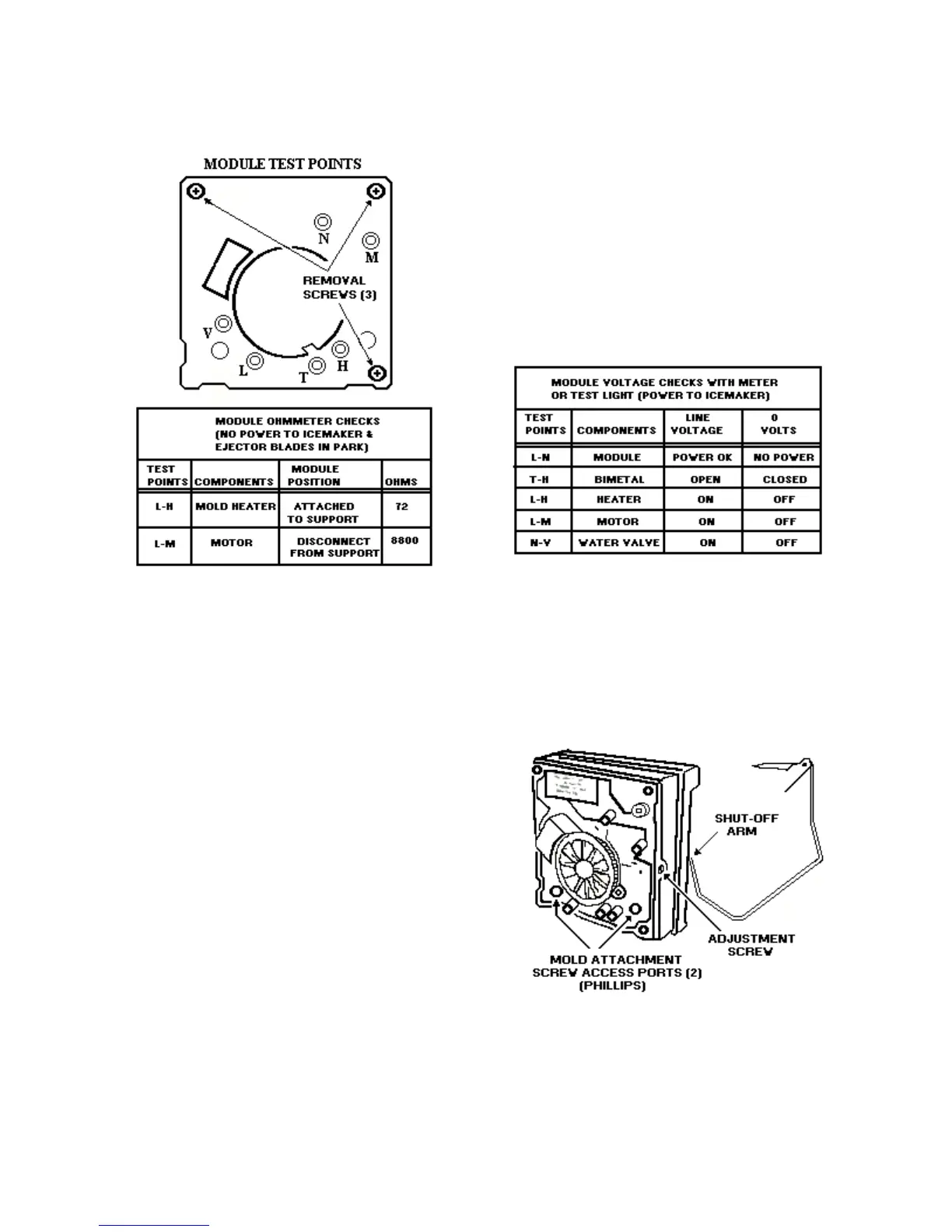

Module motor and support assembly-
Insert Phillips driver in access ports in module-loosen
both screws – disconnect shut-off arm –pull mold
from support assembly.
Shut-off arm-
Pull out from support – reinstall to full depth.
Mold and heater-
Remove module motor and support assembly.
Bimetal-
Remove module motor and support assembly – pull
out retaining clips with bimetal.
Fill cup-
Remove module motor and support assembly –
remove ejector blades and shut-off arm – pull fill cup
from mold.
Ejector blades or stripper-
Remove module motor and support assembly. When
re-installing ejector blades, realign “D” coupling with
module cam.
SPECIFICATIONS
Mold Heater 185 watts. 72 ohms
Thermostat close 17°F ± 3°
(Bimetal) open 32°F ± 3°
Water fill 140cc, 7.5 sec.
Motor 1.5 watts, 8800 ohms
Module stamped circuit.
plug in connectors
Cycle one revolution
(Ejects & water fill)
For 120 models
Water Level adjustment
Turning the screw clockwise decreases the water fill.
½ turn equals 20cc or 12 sec.
Full turn equals 40cc or 24 sec.
Maximum adjustment is one full turn either
direction. Additional rotation could damage
Module.
