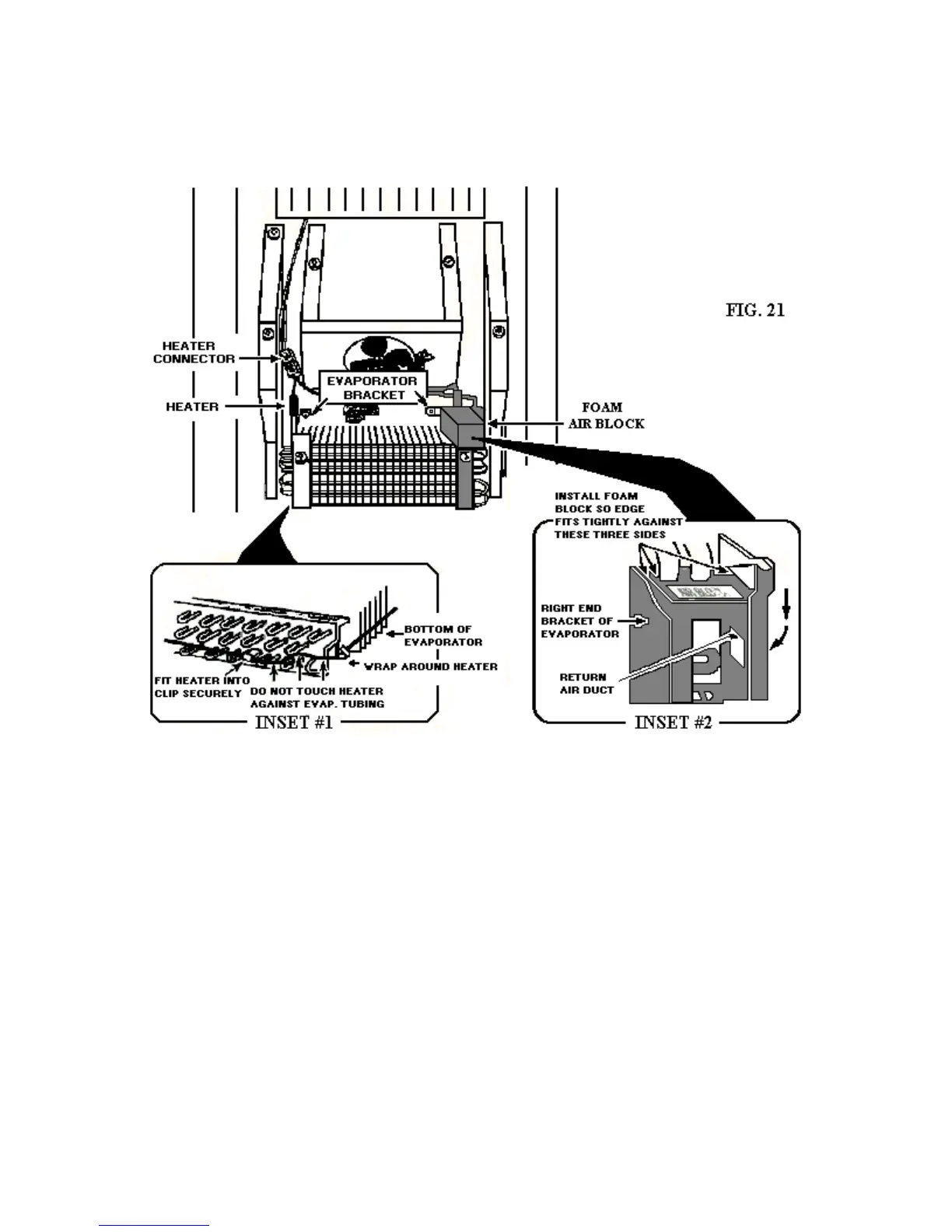

Installing a New Defrost Heater
1. Position the defrost heater so the black wire and the wire connector are to the left.
2. Spread the heater apart far enough to fit over the side clips.
3. Bend the bottom tabs securely around the heater.
4. Snap the heater into the side clips on both sides of the evaporator. Be sure the heater does not
touch any of the evaporator tubing.
5. Carefully rotate the bottom of the evaporator back into position and hang it on the lower center
hook on the freezer liner so the top bracket holes are aligned with the mounting holes in the
freezer liner.
6. Place the foam air-block at the right rear corner of the liner at the top of the evaporator. Form the
holes in the air-block around the tubing.
7. Slide the air-block down to make a tight seal between the evaporator bracket and the back and
side walls of the freezer liner. When the air-block is in the proper position, it should cover the
right evaporator bracket mounting screw.
8. Insert the right lead of the defrost heater into the wire connector hole so it locks in place.
