1. Unplug the yellow and black wire from the switch terminals.
2. Press in on the flexible arm of the switch and pry the opposite side of the switch out of the hole in
the corner cover.
Servicing Components Behind the Evaporator Cover
A number of serviceable components are located behind the evaporator cover located on the lower portion
of the back wall of the freezer section.

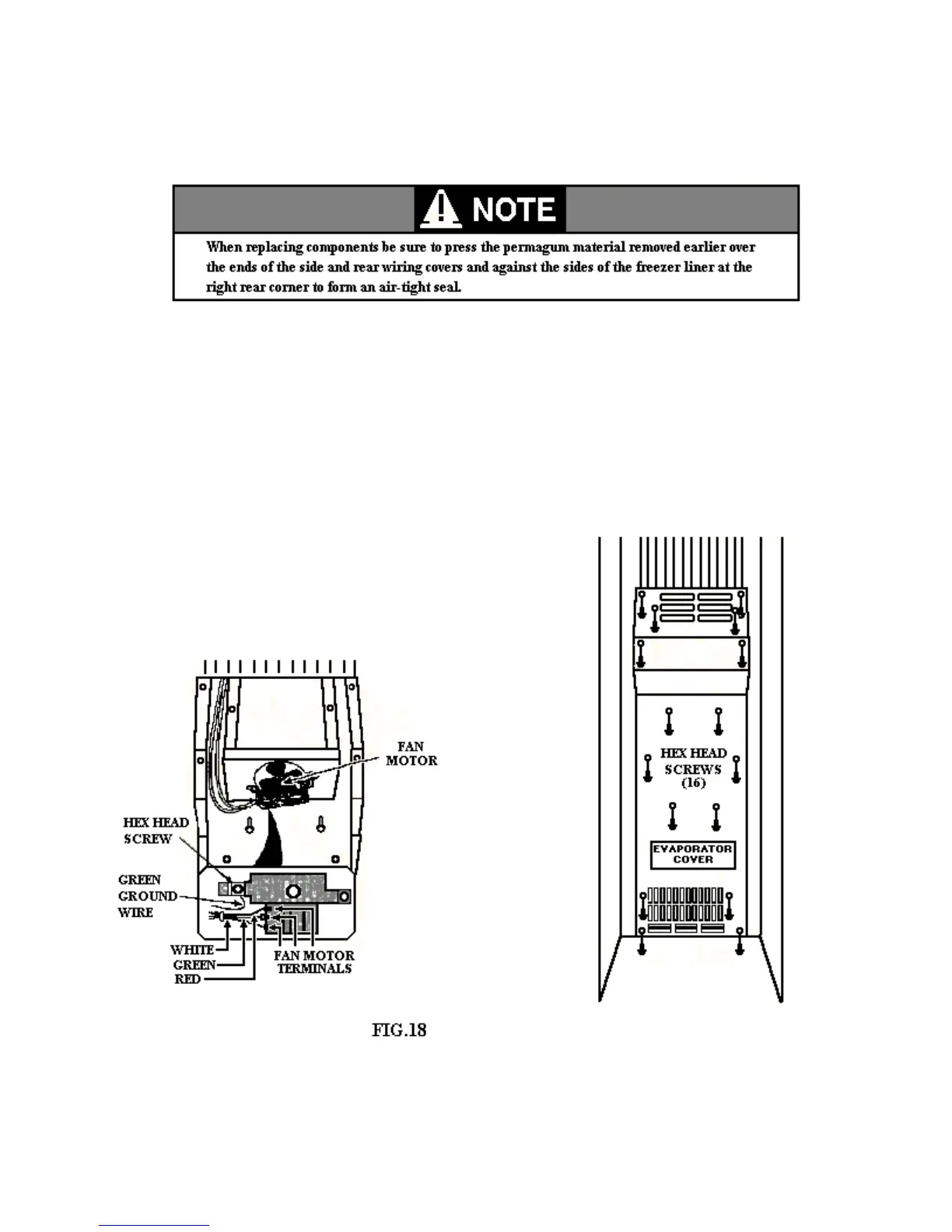

1. Remove the sixteen hex head screws securing the
evaporator cover to the back wall of the freezer liner.
2. Pull the top of the evaporator cover out between
shelf studs and remove it from the freezer.
Removing the Evaporator Fan Motor
The evaporator fan motor and blade assembly is mounted
on a bracket secured to back of the freezer liner.
19
