Scroll upwards or downwards with and select the desired unit of measurement; lastly touch Save.
The control panel confirms the operation has been completed.
3. HVAC.
The HVAC menu allows reading off the control panel the temperature measured by the various thermostats and
changing the type of operation or the setting temperature of each single thermostat.
In addition, again via the control panel, it will be possible to make each thermostat work in a completely similar
manner to that of a timer-thermostat (AUTO mode) by setting the operating temperature and the related time bands.

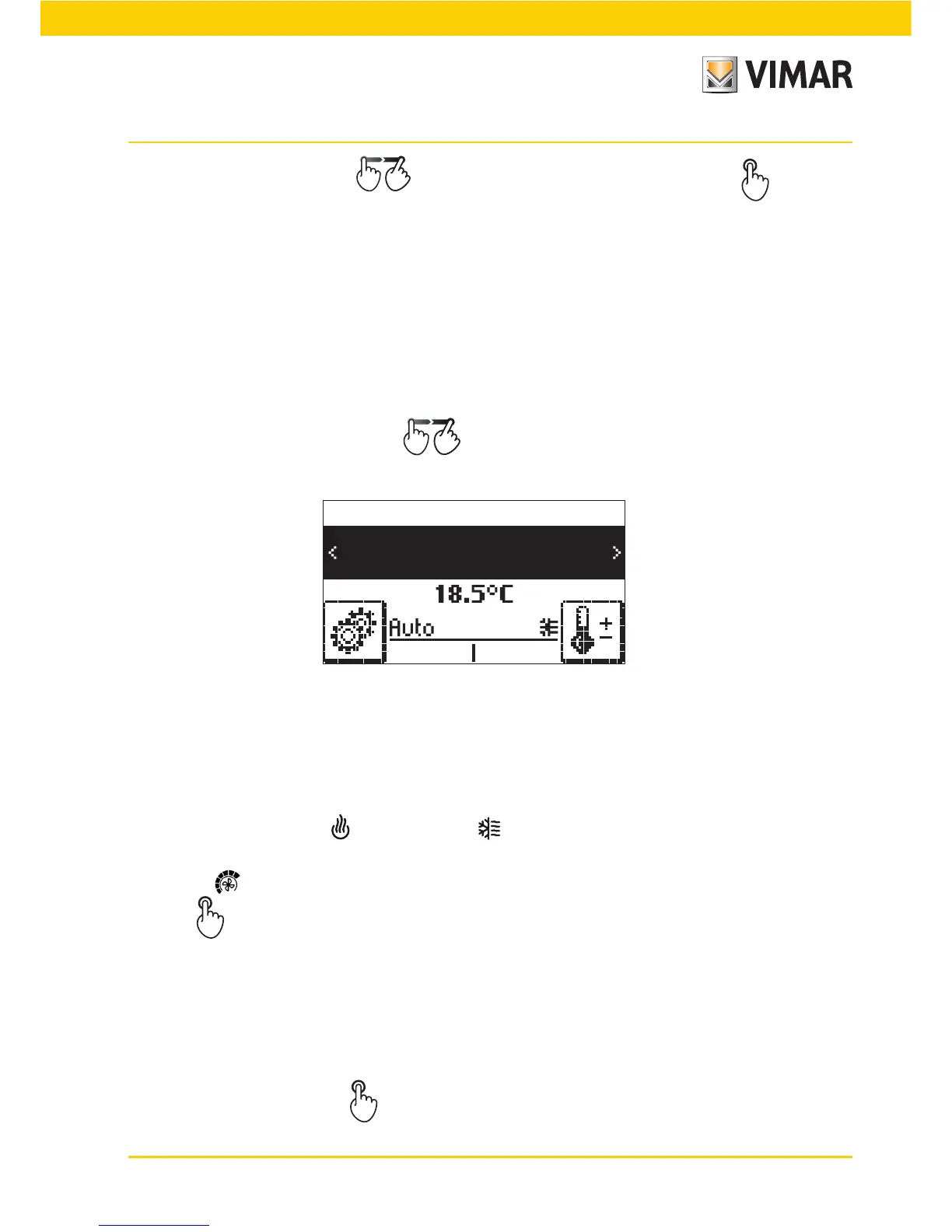

3.1 Viewing the temperature of the thermostats in the different zones of the house.
Main menu HVAC
View, moving to the left (<) or to the right (>), the zones in which the
system has been divided
For each zone the display shows:
• the measured temperature;
• the state of the thermostat (On if it is working to take the HVAC to the set temperature, Off if the temperature
has been reached);
• the operating mode (Heating or Air-Conditioning );
• the type of operation (Manual, Automatic, Timed Manual, etc); when there is a fan coil control the display also
shows the icon for the speed of the fans.
Touching Menu takes you back to view the main menu of the control panel.
3.2 Selecting the temperature zone to be displayed.
Used to set the zone to be displayed on the control panel when accessing the HVAC menu.
HVAC
Setup
Zone settings
Select the desired zone
Monitor zone
Select
ing on or off
Confirm with Set and lastly touch Save.
Setup
Menu
Climate
Zone 23
Thermostat 23 Library
Fig. 4
To Next Page
