vimec S10 User Manual

19
a
FIG.9
FIG.11
a
b
FIG.10
a
7511001

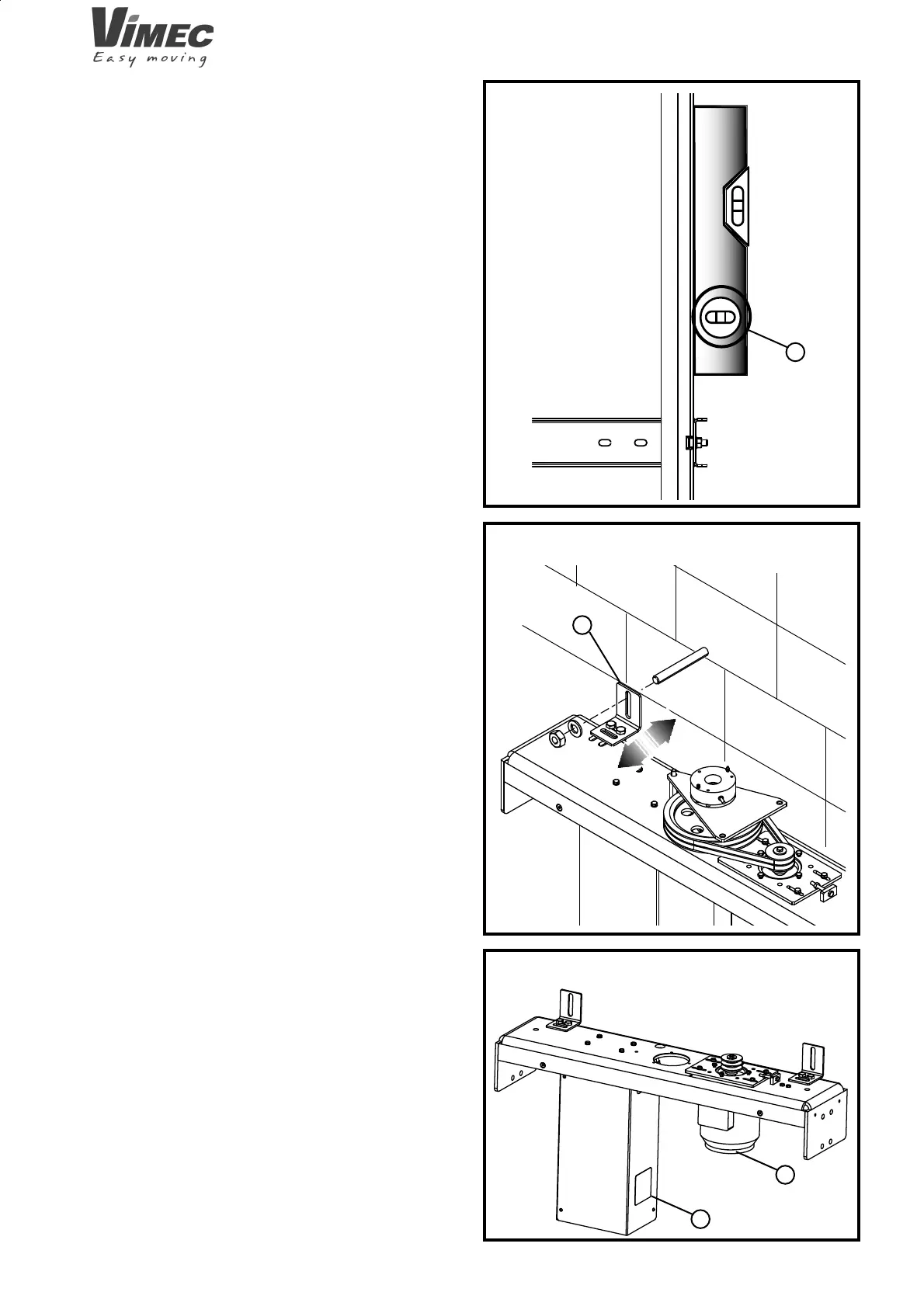

- Block the head connection in the wall, checking fi rst
if it is perpendicular to the guides. Use the “L” brackets
(Fig. 10/a) for wall fi xing and adjust them if necessary.
The head connection is already equipped with a motor
(Fig. 11/a), and electric panel (Fig. 11/b).
