CONNECTION OF THE LOUDSPEAKERS
Either a single pair of loudspeakers or two speaker pairs can be connected to the amplifier SV-237. Both
stereo outputs are identically provided with the signal of the currently selected input. For each loudspea-
ker you will find two connector screws (positive + und negative –) at the amplifier's backside. One side
of the speaker cable must be attached here. Each pair of screws has a label “R” or “L” nearby to clarify
to which stereo channel it belongs. At the loudspeaker connection terminal there are similar connector
screws or connectors. There, the polarity of each screw (+ or –) can be identified as well and the other
side of the speaker cable associated with this speaker must be attached. Make sure only connector screws
of the same polarity will be connected by each speaker cable wire: a knob marked “+” in the amplifier's
terminal must be connected with a speaker's connector screw marked “+” as well.

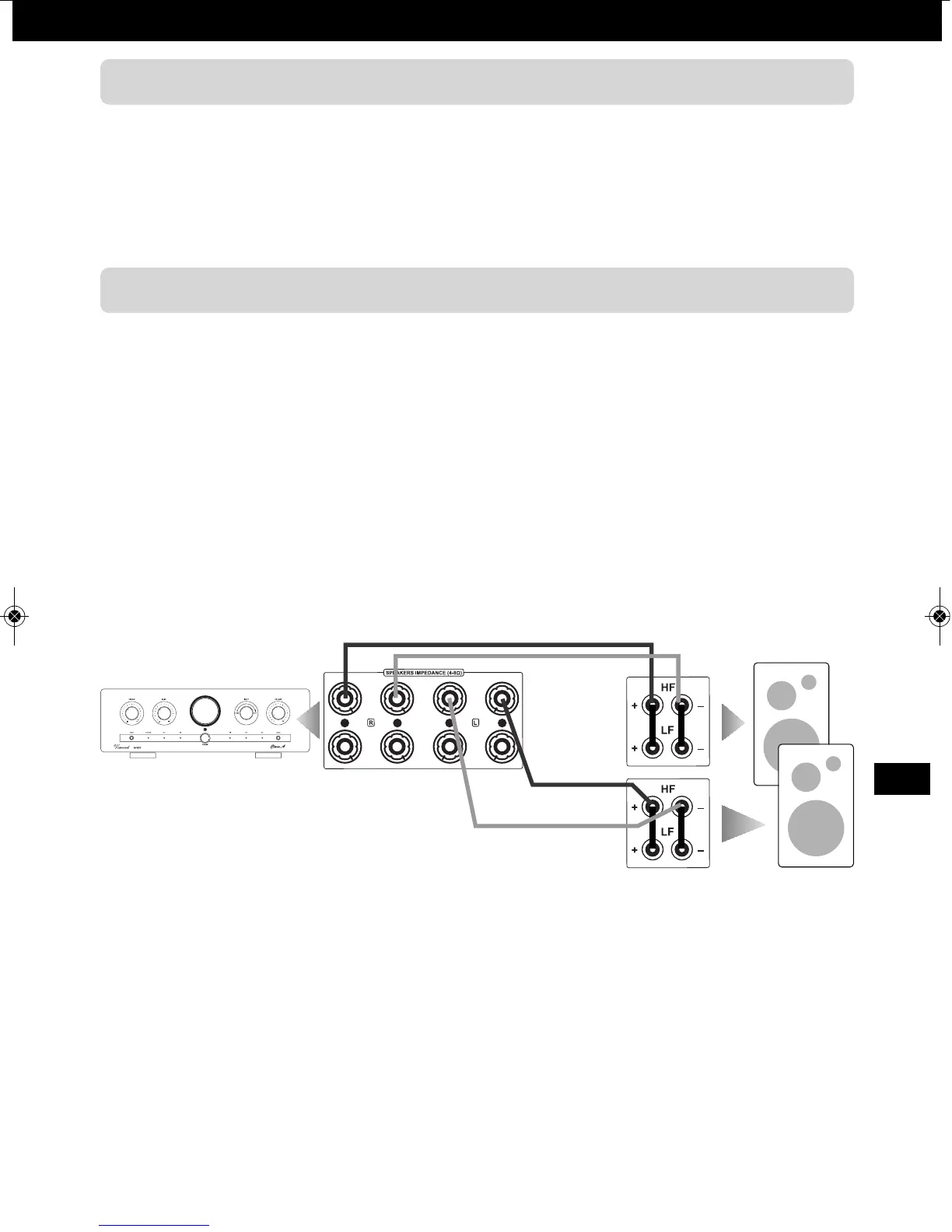

Our sketch shows all connections necessary for one pair of speakers. If a second pair of loudspeakers is
intended to be used, the connector screws of the lower row must be connected in a similar fashion to the
additional speakers’ input connectors.
Loudspeaker
Cable
SV-237
Right and left loudspeaker
If every speaker is connected in a conventional way (a two core speaker cable for each loudspeaker) and
you own loudspeakers that are equipped with Bi-Wiring terminals (four connector screws) you have to
make sure that the metal brackets (contact pieces consisting of small metal plates or short pieces of cable
which are supplied with the speakers) are applied to the terminal and that each one connects the two
knobs of the same polarity (e.g. both connectors marked “+”). The connector screw labelled “+” and “R”
at the amplifier's backside must be connected to one of the bridged, labelled “+” connectors of the loud-
speaker assigned to the right stereo channel. Accordingly, the connector screw labelled “–” and “R” at
the amplifier's backside must be connected to one of the bridged, labelled “–” connectors of the loudspea-
ker assigned to the right stereo channel. Connect the left side loudspeaker in the corresponding way.
CONNECTION OF THE POWER CABLE
Check whether the wall socket provides the appropriate mains power, which is the case if it is supplied
with 230 V AC 50 Hz. Push the plug on the power cable supplied firmly into the power socket (15) on
the back of the appliance. Plug the other end of the power cable into a mains socket.
