4.1.11 Emergency Public Address Operation.

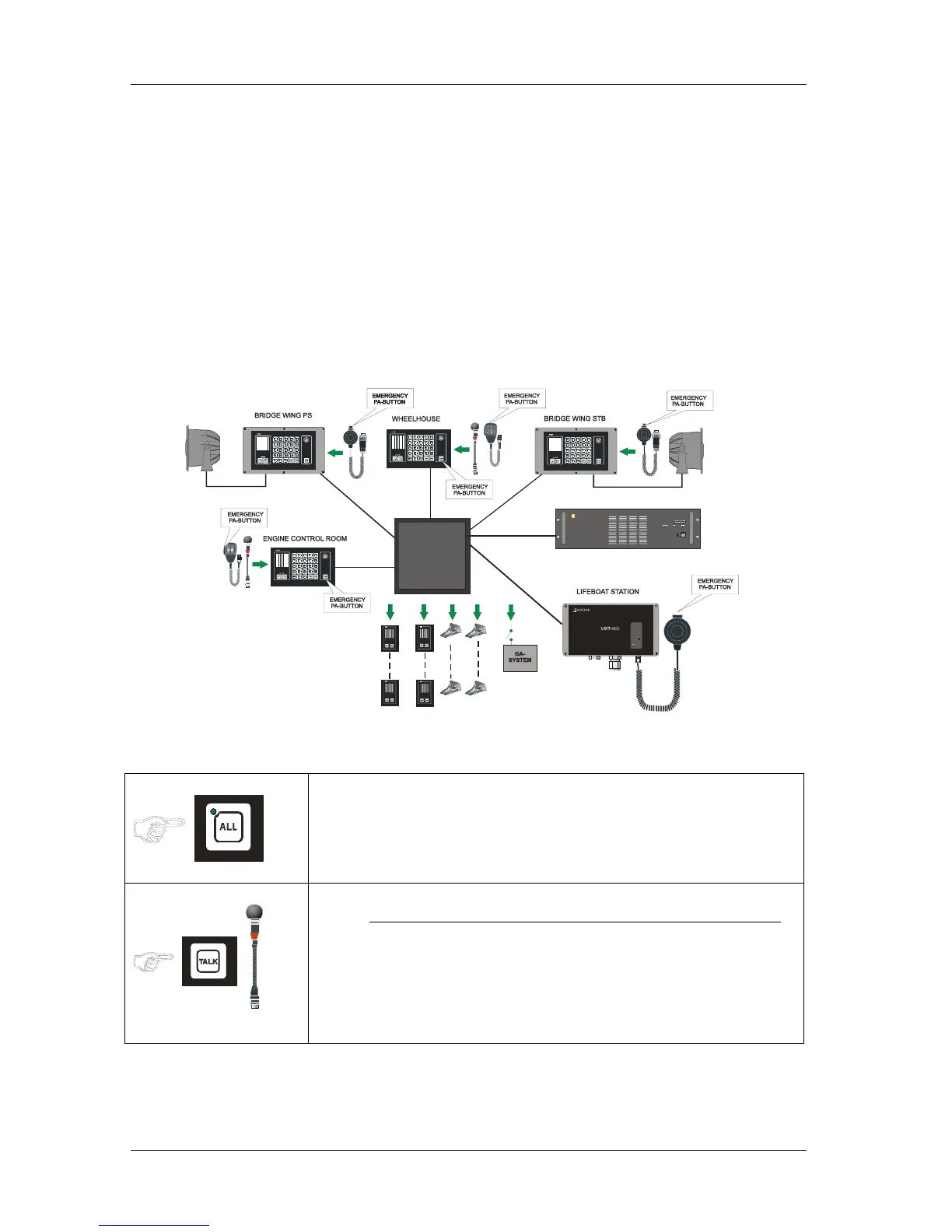

In order to comply with PA-requirements, two PA call stations are required: The CTB-100V system are designed
for use with up to four operation panels that can be used as Emergency call stations. In addition one or more All
call station (Ex. Lifeboat stations) can be used as Emergency call stations.
Following functions:
• Mute of the External Alarm System (General / Fire Alarm)
• Operation panel with 1
st
priority, normally bridge, can override other operation panels.
Type of Operation panels/ Emergency call stations:
• CTB-10 Operation panel 10 line selection, indoor use. Hand or gooseneck microphone.
• CTB-10W/V01 Operation panel 10 line selection, WP. Handmicrophone only.
• CTB-20 Operation panel 20 line selection, indoor use. Hand or gooseneck microphone.
• CTB-20W/V01 Operation panel 20 line selection, WP. Handmicrophone only.
• VMT-603 All call station WT with handmicrophone.
Central unit CU-200
ON
OFF
VPA-120
POWER AMPLIFIER
100V POWER AMPLIFIER
From 1 of 4 operation panels.
• Press the ALL button, the call is set up. Indicated by steady green LED
in the ALL button.
“EMERGENCY PA-
BUTTON”
With gooseneck microphone MB-30G CTB-10 & CTB-20
• Press the TALK marked “EMERGENCY PA –BUTTON.”
• Speak clearly into the microphone to give message.
