Installation & User Manual System CTB-100V
2
1. SYSTEM OVERVIEW
2.1. Introduction
The Command Talk Back System CTB-100V is specially designed for important communication for use in rough
marine environment. Available in 10 and 20 line version.
The CTB system consist of a central unit CU-100 or CU-200 with up to 4 operation panels
for use on bridge console, bridge wings, engine control room etc. and a comprehensive range of substations and
field equipment for use indoor, outdoor and noisy areas.
The system includes many facilities and can operate together with PA-system to increase functionality and fields
of operation.
2.2. Features
• 10 or 20 line selection • 100V line power amplifier.
• 4 Operation panels • Dimmable panel background light
• Gooseneck or handheld microphone. • Step volume control
• Parallel Communication. • Output for extra signal device for all substation lines
• All call / Group Call facility • Output for external loudspeaker
• Public Address Operation • Input for external microphone.
• AUX / Alarm input • Dimension panels H:144 x W: 240 x 100
• Hands free operation. • Power 22 - 32 V DC
• Cover requirement for DNV C500 Nautical Safety

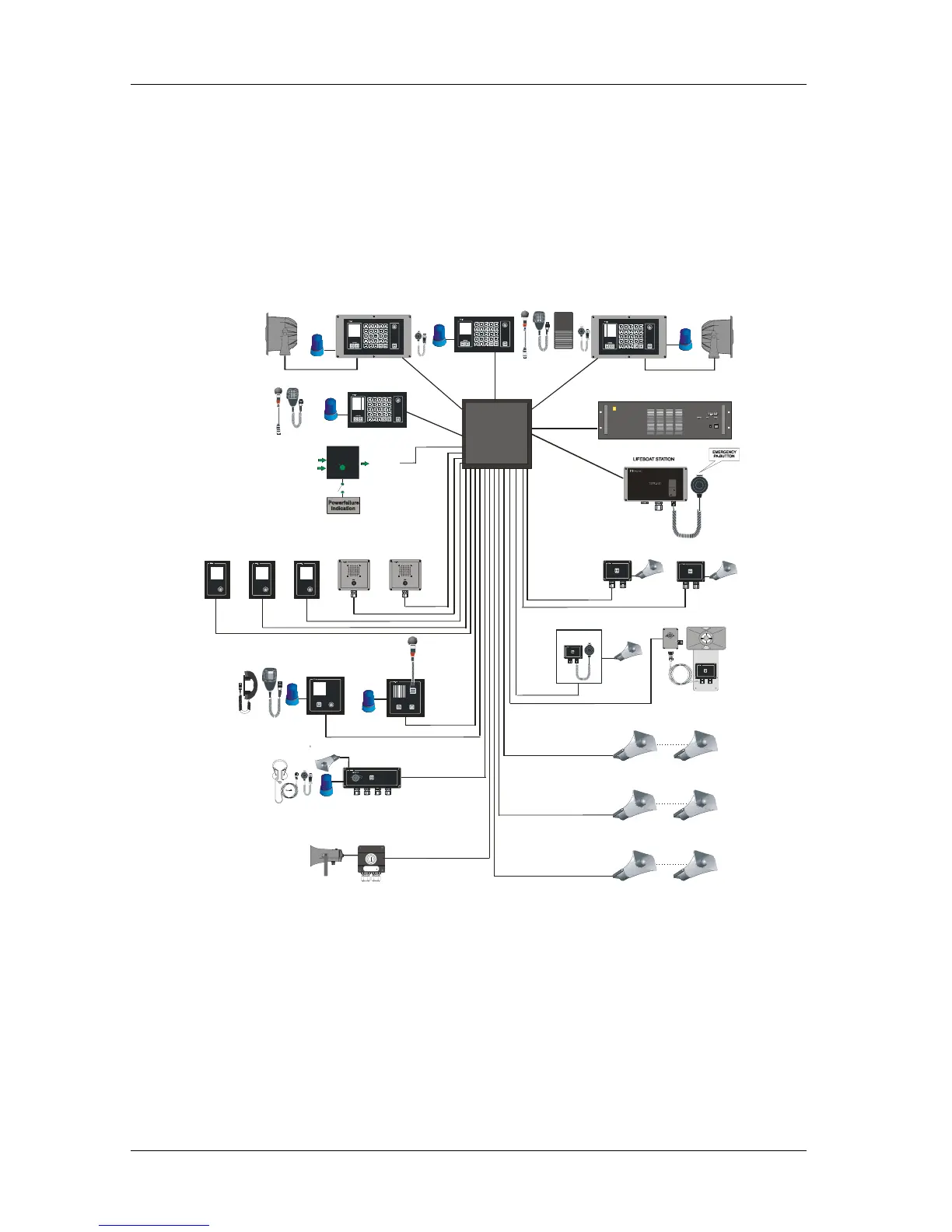

Operation panel CTB-20W/V01
Foot-switch
Signal unit
1
EEx de IIC T6 PTB Nr.Ex-87.B.1009
Ui 690V
CEAG
GHG 411
I 16A
Substation STB-3
Line 19
100V Ex-loudspeaker
Ex-push button box
Substation STB-5
Line 17
HAS-1
ETC-STB5
Signal unit
Signal unit
Substation STB-5GN
Line 18
Signal unit
Signal unit
VML-15T
VML-1520
P-MT7
P-66
Substation line 20
P-66
P-66
Signal unit
Signal unit
Central unit CU-200
MB-30G
ETC-1-TB
MB-30G
TC-1-TB
Signal unit
Sub-station STB-1
Line 5
Sub-station STB-1
Line 6
Sub-station STB-1
Line 7
Substation STB-2
Line 11
VML-15T
Substation STB-2
Line 10
`
VML-15
Substation HE-112MT
Line 9
Substation HE-112MT
Line 8
Operation panel CTB-20
Operation panel CTB-20W/V0
