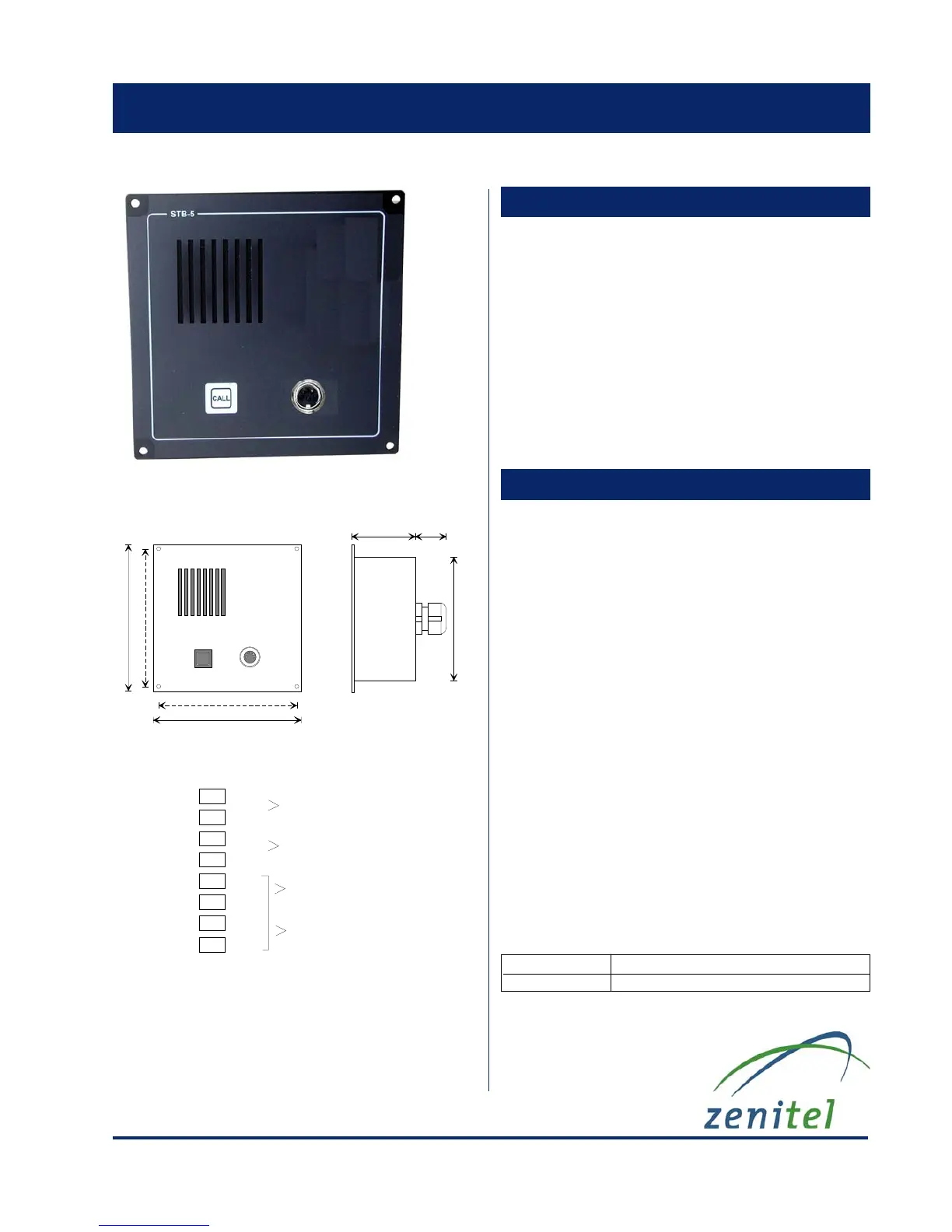

Features
Document no.
Article no.
STB-5_ds rev.02 2004.09.07
STB-5
Description:
Technical data:
STB-5
Talk-Back Systems
CALL
3
PG16
144
144
57
Panel cut-out = 125 x 125 mm
Mounting holes = Ø 4 mm
134
134
120
30
SS LINE
A
B
0V
+24V
0V
+24V
0V
+24V
SIGNAL DEVICE IN
EXTRA SIGNAL DEVICE
IN
OUT
SCREW TERMINAL
1
2
3
4
5
6
7
8
STB-5
* Talk-Back substation, designed for multipurpose indoor
use ( engine room )
* Delivered for flush or bulkhead mounting
* Call button for calling Master unit
* Built-in relay circuit for operating of external signalling
devices.
* Loudspeaker
* Socket for handset or handheld microphone
Material / Colour: Aluminium / black
Connections: Screw Terminals
Loudspeaker: 3 W
Dimensions: See dwg. above
Weight: Approx. 0,5 kg
IP rating: IP-44
Accessories:
Box for bulkhead mounting ( see seperate datasheet )
Handset HAS-1 ( see seperate datasheet )
Handheld microphone ETC-STB5 ( see seperate
datasheet )
