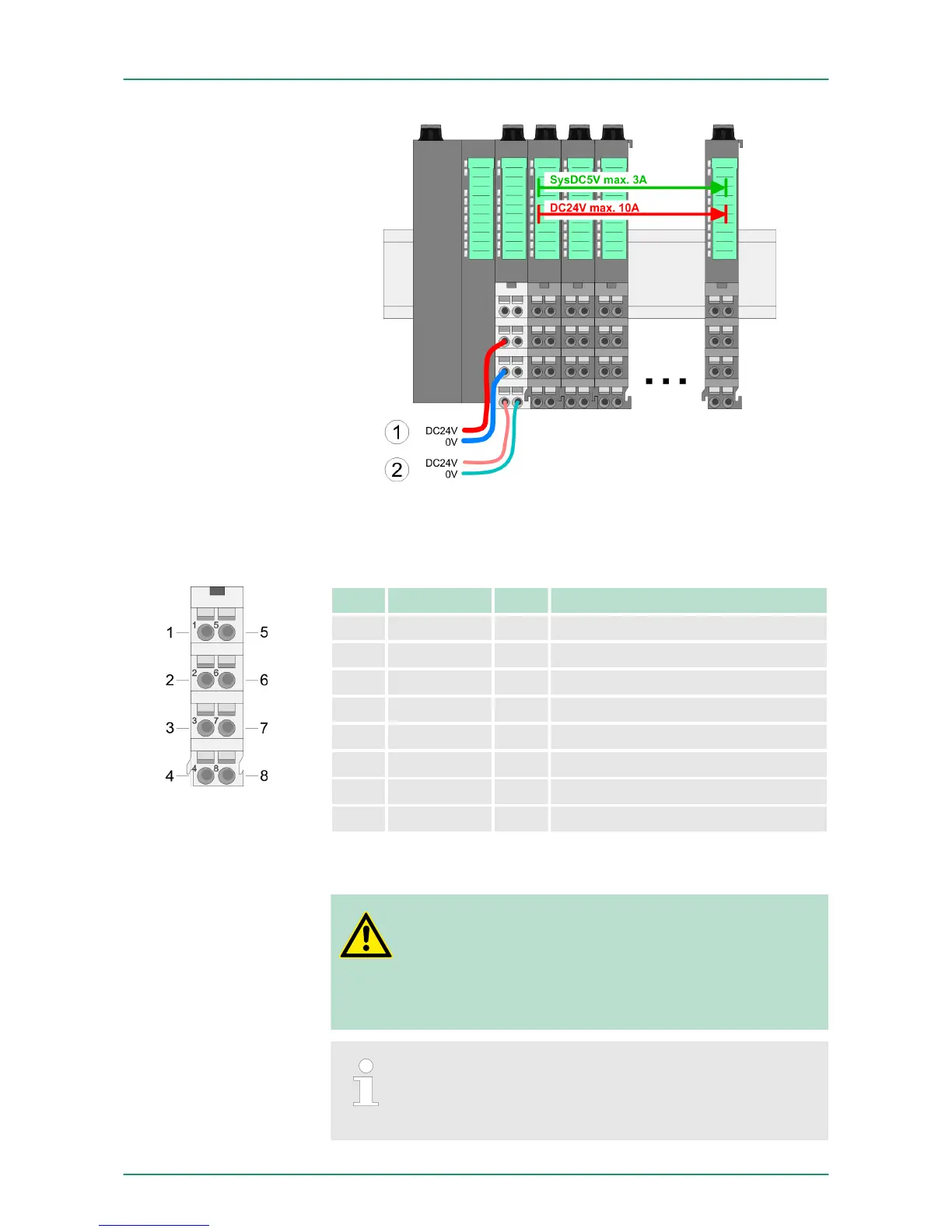

(1) DC 24V for power section supply I/O area (max 10A)
(2) DC 24V for electronic power supply bus coupler and I/O area
For wires with a core cross-section of 0.08mm
2
up to 1.5mm
2
.
Pos. Function Type Description
1 --- --- not connected
2 DC 24V I DC 24V for power section supply
3 0V I GND for power section supply
4 Sys DC 24V I DC 24V for electronic section supply
5 --- --- not connected
6 DC 24V I DC 24V for power section supply
7 0V I GND for power section supply
8 Sys 0V I GND for electronic section supply
I Input
CAUTION!
Since the power section supply is not internally protected,
it is to be externally protected with a fuse, which corre-
sponds to the maximum current. This means max. 10A is
to be protected by a 10A fuse (fast) respectively by a line
circuit breaker 10A characteristics Z!
The electronic power section supply is internally protected
against higher voltage by fuse. The fuse is within the
power module. If the fuse releases, its electronic module
must be exchanged!
Standard wiring
PM - Power module
VIPA System SLIO Basics and Assembly
Wiring
HB300 | FM | 050-1BA00 | GB | 14-36 23
