There is the possibility to fix the assignment of electronic and terminal
module. Here coding pins (order number 000-0AC00) from VIPA can
be used.
The coding pin consists of a coding jack and a coding plug. By com-
bining electronic and terminal module with coding pin, the coding jack
remains in the electronic module and the coding plug in the terminal
module.
This ensures that after replacing the electronics module just another
electronic module can be plugged with the same encoding.

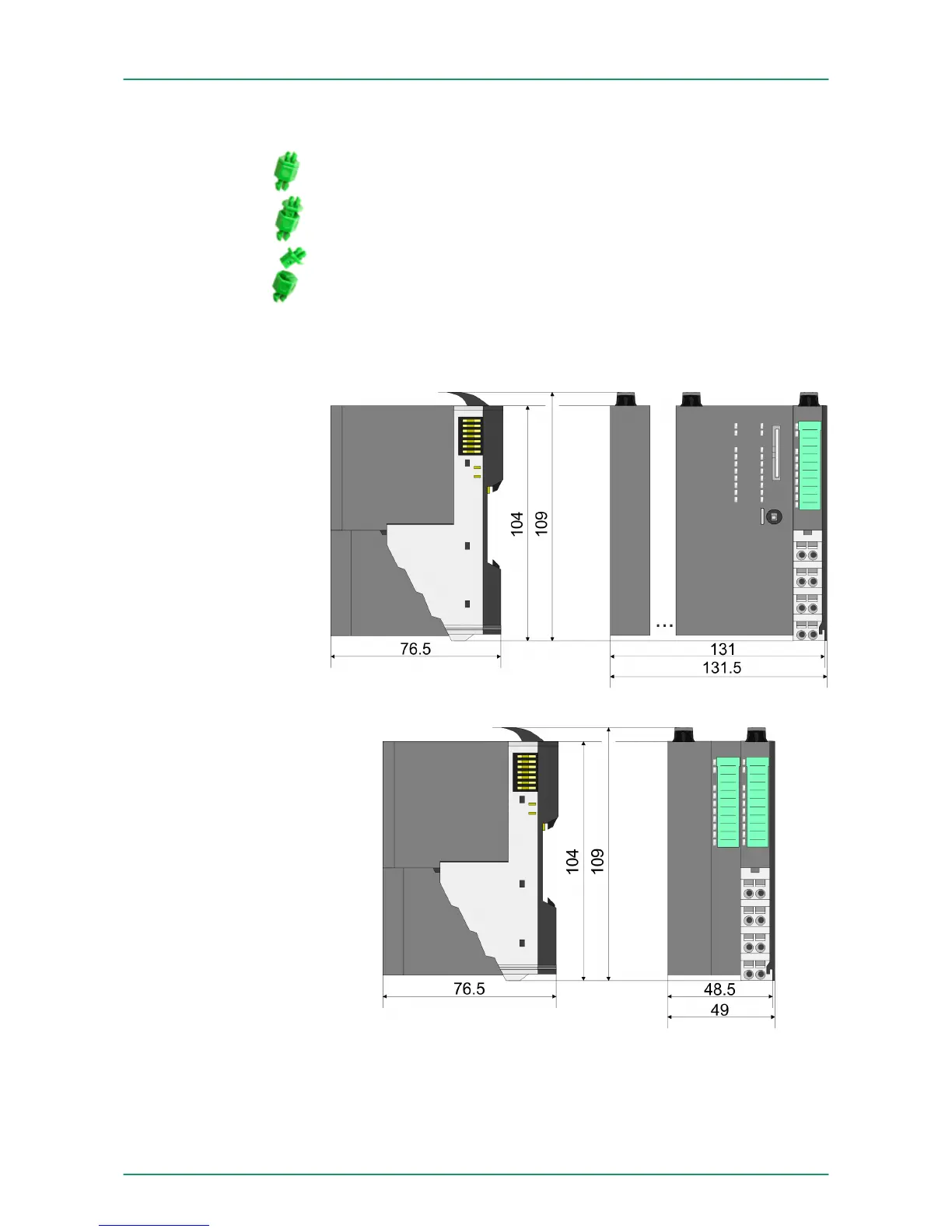

2.3 Dimensions
Coding pins
Dimensions CPU
Dimensions bus cou-
pler
VIPA System SLIOBasics and Assembly
Dimensions
HB300 | FM | 050-1BA00 | GB | 14-36 12
