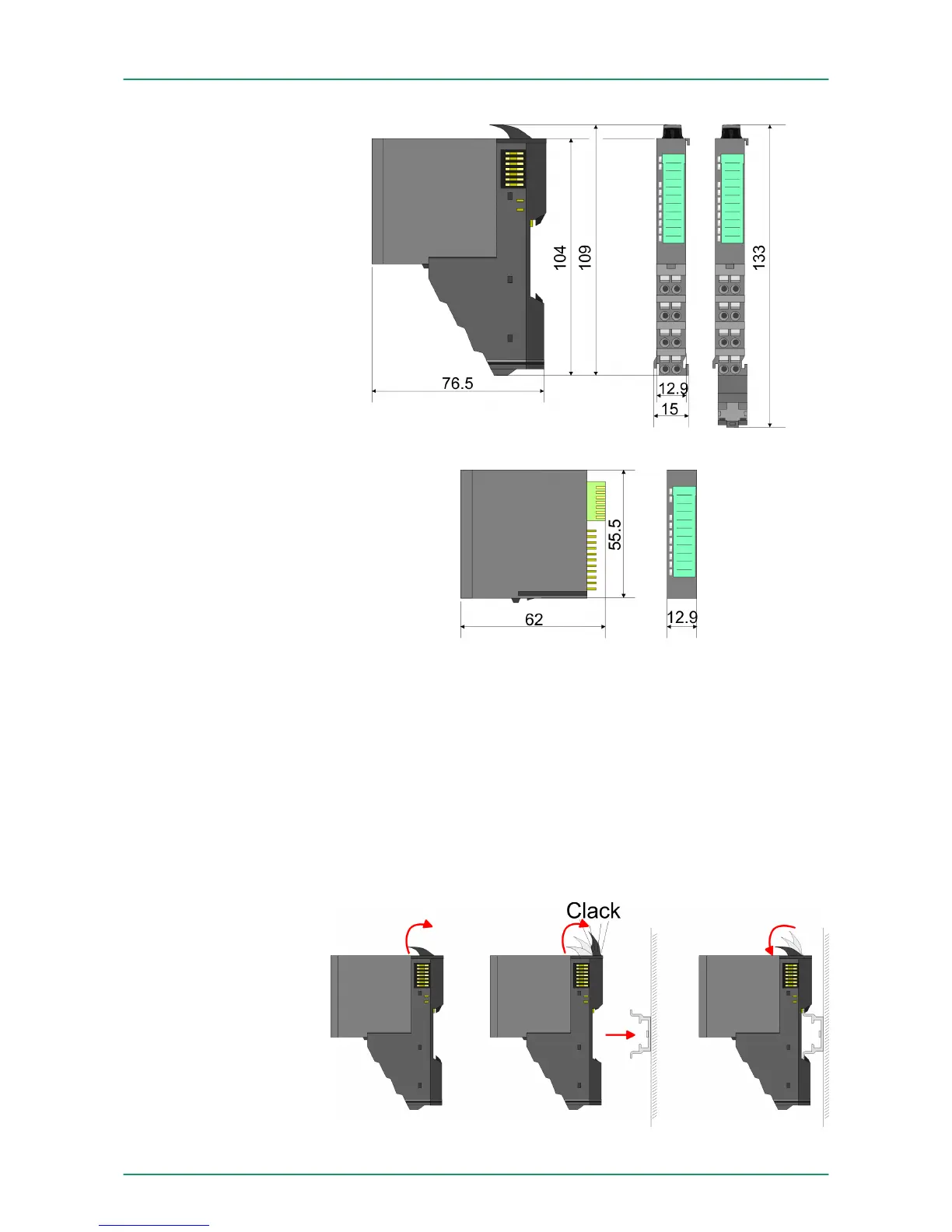

Dimensions in mm
2.4 Installation
There is a locking lever at the top side of the terminal module. For
mounting and demounting this locking lever is to be turned upwards
until this engages audible. Now the module may be pulled forward.
For mounting plug the module to the module installed before and
push the module to the mounting rail guided by the strips at the upper
and lower side of the module. The module is fixed to the mounting rail
by pushing downward the locking lever. The modules may either sep-
arately be mounted to the mounting rail or as block. Here is to be con-
sidered that each locking lever is opened.
Dimensions periphery
module
Dimensions electronic
module
Functional principle
VIPA System SLIO Basics and Assembly
Installation
HB300 | FM | 050-1BA00 | GB | 14-36 13
