VIPA SLIO - Coding

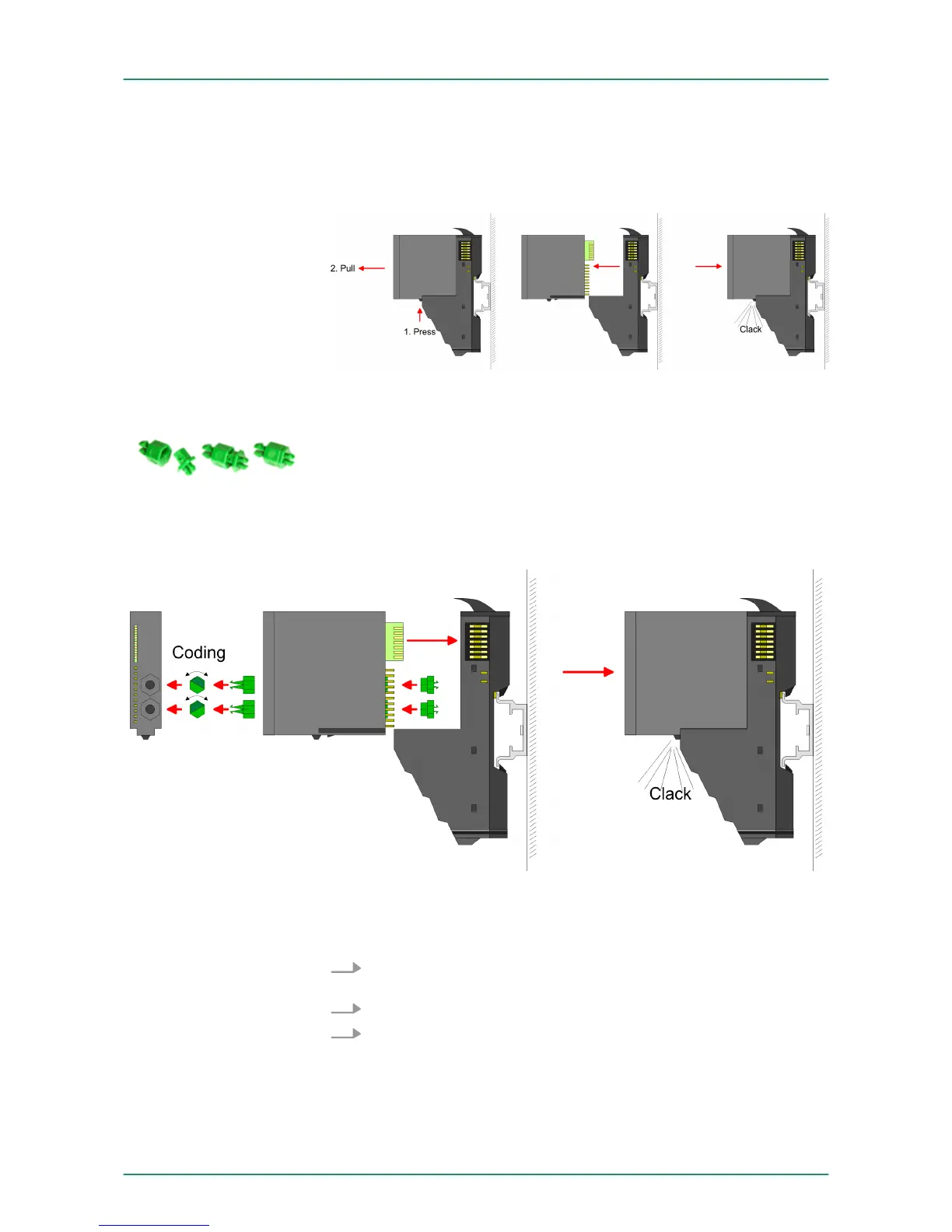

For the exchange of a electronic module, the electronic module may
be pulled forward after pressing the unlocking lever at the lower side
of the module. For installation plug the electronic module guided by
the strips at the lower side until this engages audible to the terminal
module.
There is the possibility to fix the assignment of electronic and terminal
module. Here coding pins (order number 000-0AC00) from VIPA can
be used. The coding pin consists of a coding jack and a coding plug.
By combining electronic and terminal module with coding pin, the
coding jack remains in the electronic module and the coding plug in
the terminal module. This ensures that after replacing the electronics
module just another electronic module can be plugged with the same
encoding.
Each electronic module has on its back 2 coding sockets for coding
jacks. Due to the characteristics, with the coding jack 6 different posi-
tions can be plugged, each. Thus there are 36 possible combinations
for coding with the use of both coding sockets.
1. Plug, according to your coding, 2 coding jacks in the coding
sockets of your electronic module until they lock.
2. Now plug the according coding plugs into the coding jacks.
3. To fix the coding put both the electronic and terminal module
together until they lock.
Coding
