2.5 Demounting and module exchange
With demounting and exchange of a module, head module (e.g. bus
coupler) or a group of modules for mounting reasons you have
always to remove the electronic module of the just mounted right
module. After the mounting it may be plugged again.

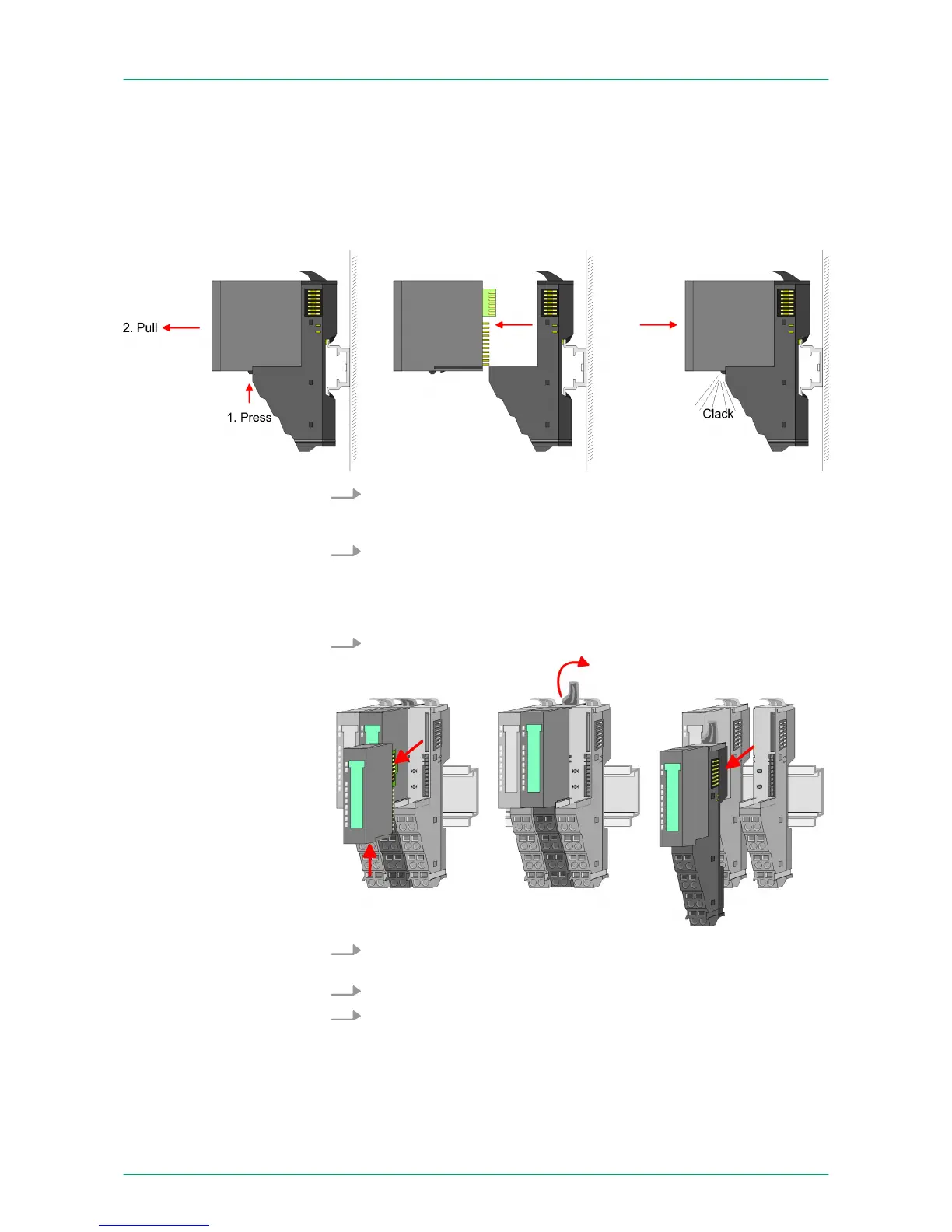

Exchange of an electronic module
1. For the exchange of an electronic module, the electronic module
may be pulled forward after pressing the unlocking lever at the
lower side of the module.
2. For installation plug the electronic module guided by the strips at
the lower side until this engages audible to the terminal module.
Exchange of a module
1.
Remove if exists the wiring.
Ä Chapter 2.6 ‘Wiring’ on page 22.
2. Press the unlocking lever at the lower side of the just mounted
right module and pull it forward.
3. Turn the locking lever of the module to be exchanged upwards.
4. Pull the module forward.
Proceeding
