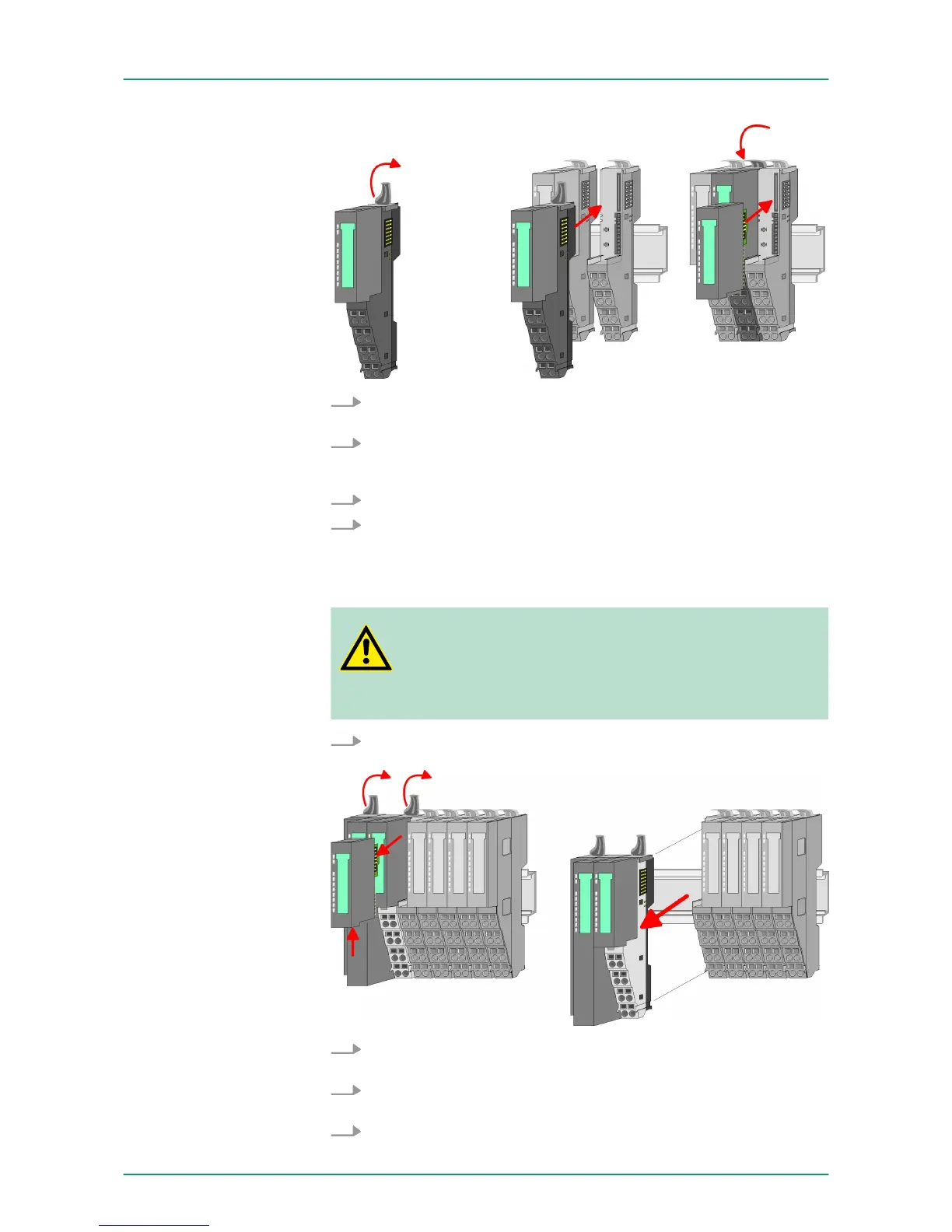

5. For mounting turn the locking lever of the module to be mounted
upwards.
6. To mount the module put it to the gap between the both mod-
ules and push it, guided by the stripes at both sides, to the
mounting rail.
7. Turn the locking lever downward again.
8. Plug again the electronic module, which you have removed
before.
Exchange of a head module (e.g. bus coupler)
CAUTION!
Bus interface and power module of a head module may
not be separated!
Here you may only exchange the electronic module!
1.
Remove if exists the wiring of the head module.
Ä
Chapter 2.6
‘Wiring’ on page 22.
2. Press the unlocking lever at the lower side of the just mounted
right module and pull it forward.
3. Turn all the locking lever of the head module to be exchanged
upwards.
4. Pull the head module forward.
VIPA System SLIO
Basics and Assembly
Demounting and module exchange
