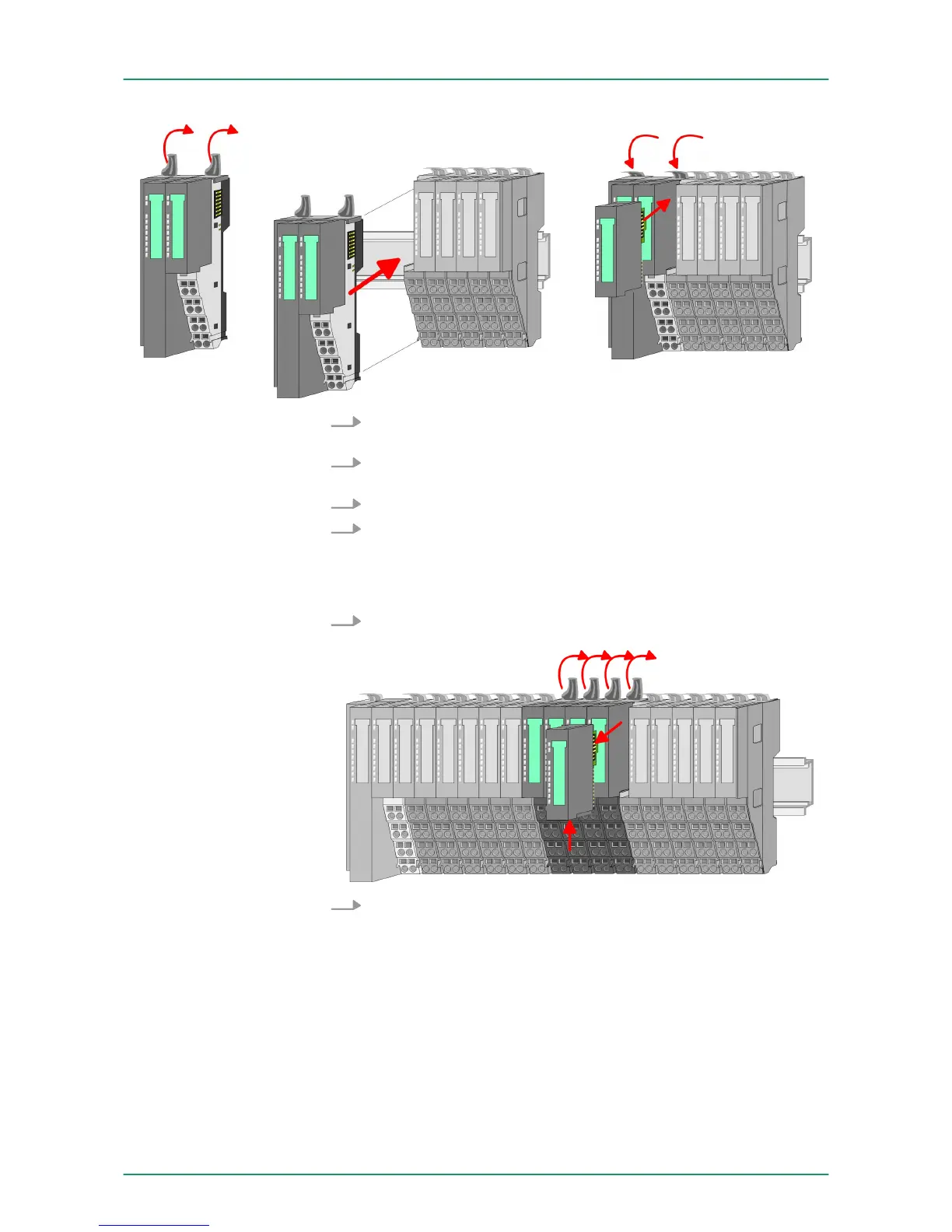

5. For mounting turn all the locking lever of the head module to be
mounted upwards.
6. To mount the head module put it to the left module and push it,
guided by the stripes, to the mounting rail.
7. Turn all the locking lever downward again.
8. Plug again the electronic module, which you have removed
before.
Exchange of a module group
1.
Remove if exists the wiring of the module group.
Ä
Chapter 2.6
‘Wiring’ on page 22.
2. Press the unlocking lever at the lower side of the just mounted
right module of the module group and pull it forward.
VIPA System SLIO
Basics and Assembly
Demounting and module exchange
HB300 | FM | 050-1BA00 | GB | 14-36 20
