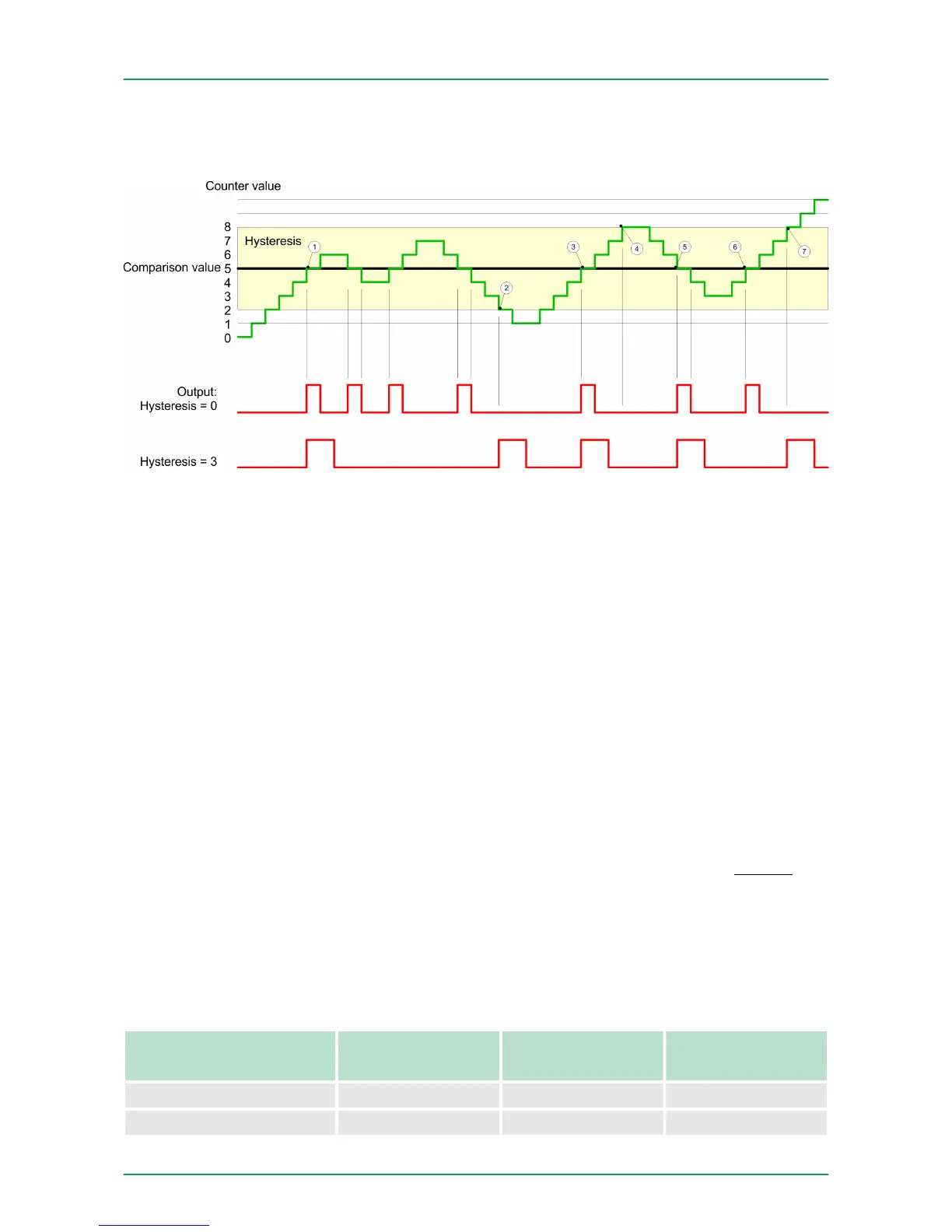

VIPA SLIO - 4.6 Diagnostic and interrupt; Effect at pulse at comparison value with pulse duration not zero

1 Counter value = comparison value ® pulse of the parameterized
pulse duration is put out, the hysteresis is activated and the
counting direction stored
2 Leaving the hysteresis range contrary to the stored counting direc-
tion ® pulse of the parameterized pulse duration is put out, the
hysteresis is de-activated
3 Counter value = comparison value ® pulse of the parameterized
pulse duration is put out, the hysteresis is activated and the
counting direction stored
4 Leaving the hysteresis range without changing counting direction
® hysteresis is de-activated
5 Counter value = comparison value ® pulse of the parameterized
pulse duration is put out, the hysteresis is activated and the
counting direction stored
6 Counter value = comparison value and hysteresis active ® no
pulse
7 Leaving the hysteresis range contrary to the stored counting direc-
tion ® pulse of the parameterized pulse duration is put out, the
hysteresis is de-activated
With reaching the comparison condition the hysteresis gets active
and a pulse of the parameterized duration is put out. As long as the
counter value is within the hysteresis range, no other pulse is put out.
With activating the hysteresis the counting direction is stored in the
module. If the counter value leaves the hysteresis range contrary to
the stored counting direction, a pulse of the parameterized duration is
put out. Leaving the hysteresis range without direction change, no
pulse is put out.
4.6 Diagnostic and interrupt
Event Process interrupt Diagnostics
interrupt
parameterizable
HW gate open X - X
HW gate closed X - X
Effect at pulse at com-
parison value with
pulse duration not zero
Overview
VIPA System SLIO Deployment
Diagnostic and interrupt
