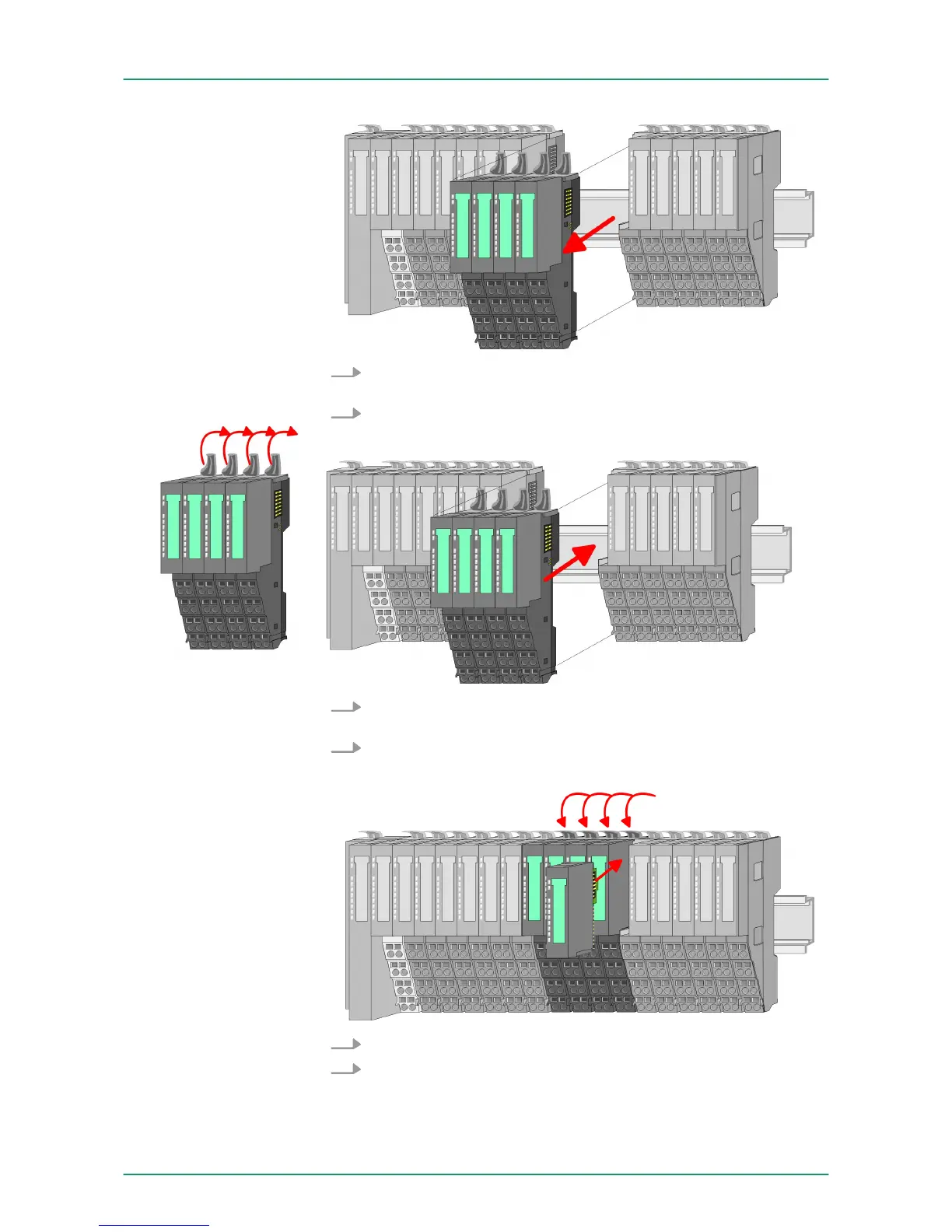

3. Turn all the locking lever of the module group to be exchanged
upwards.
4. Pull the module group forward.
5. For mounting turn all the locking lever of the module group to be
mounted upwards.
6. To mount the module group put it to the gap between the both
modules and push it, guided by the stripes at both sides, to the
mounting rail.
7. Turn all the locking lever downward again.
8. Plug again the electronic module, which you have removed
before.
VIPA System SLIO
Basics and Assembly
Demounting and module exchange
HB300 | FM | 050-1BA00 | GB | 14-36 21
