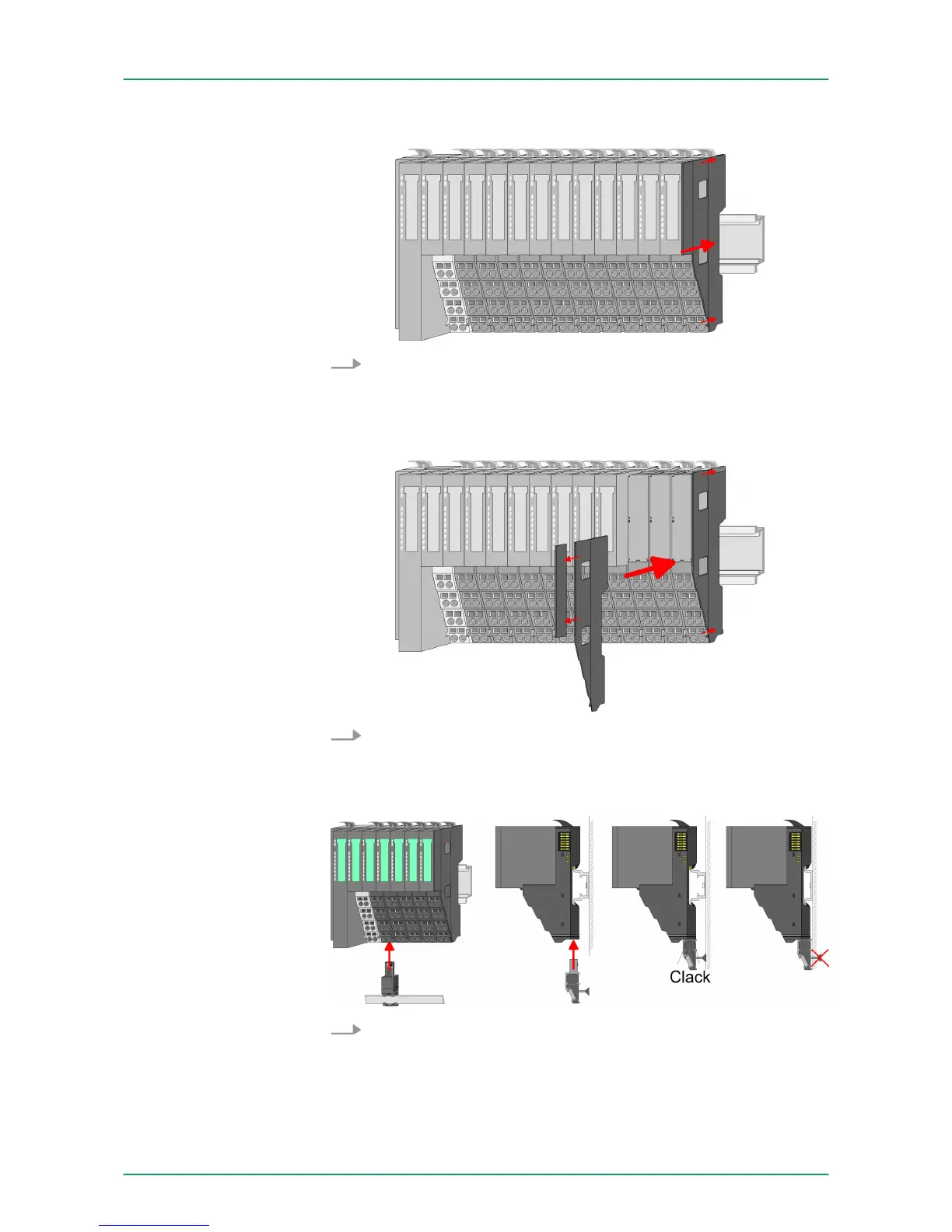

Mounting the bus cover
After mounting the whole system, to protect the backplane bus
connectors at the last module you have to mount the bus cover,
now.
Mounting the bus cover at a clamp module
If the last module is a clamp module, for adaptation the upper
part of the bus cover is to be removed
Mounting shield bus carrier
The shield bus carrier (available as accessory) serves to carry
the shield bus to connect cable shields. The shield bus carrier is
mounted underneath the terminal of the terminal module. With a
flat mounting rail for adaption to a flat mounting rail you may
remove the spacer of the shield bus carrier.
VIPA System SLIO
Basics and Assembly
Installation
HB300 | FM | 050-1BA00 | GB | 14-36 17
