VIPA SLIO - Mounting Head module (e.g. bus coupler); Mounting periphery modules

Mounting Head module (e.g. bus coupler)

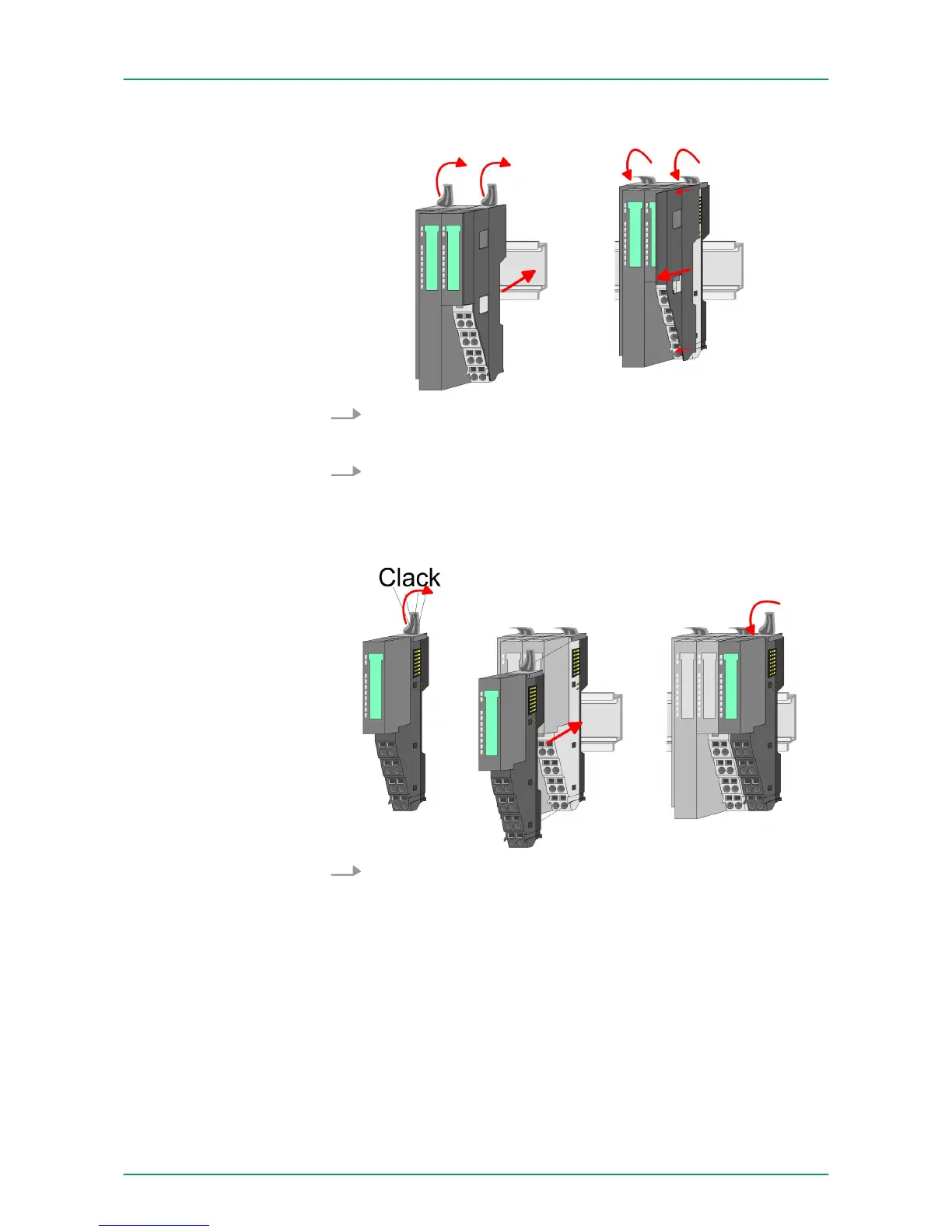

1. Start at the left side with the head module (e.g. bus coupler). For
this turn both locking lever upwards, put the head module to the
mounting rail and turn both locking lever downward.
2. Before mounting the periphery modules you have to remove the
bus cover at the right side of the Head module by pulling it for-
ward. Keep the cover for later mounting.
Mounting periphery modules
Mount the periphery modules you want.
VIPA System SLIO
Basics and Assembly
Installation
